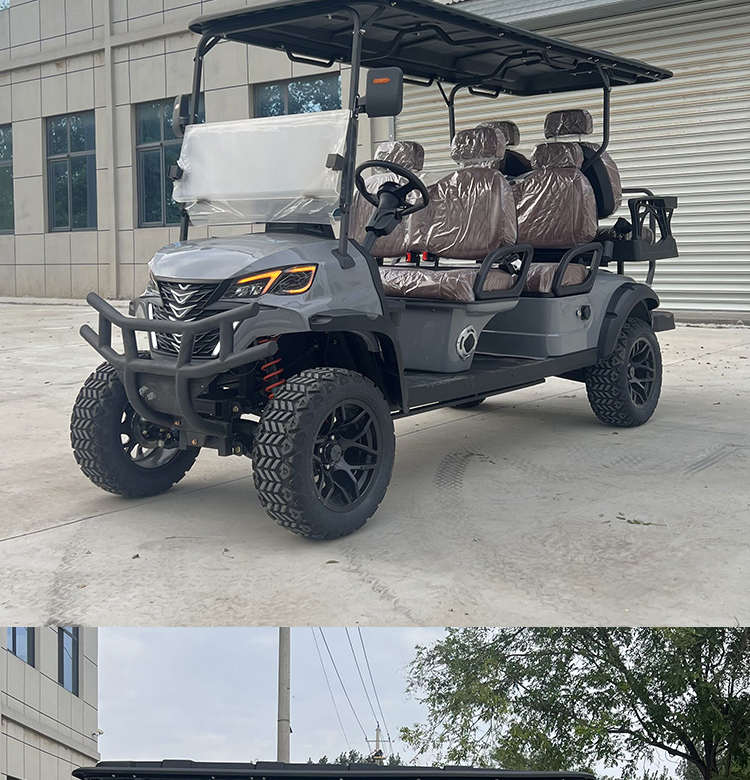

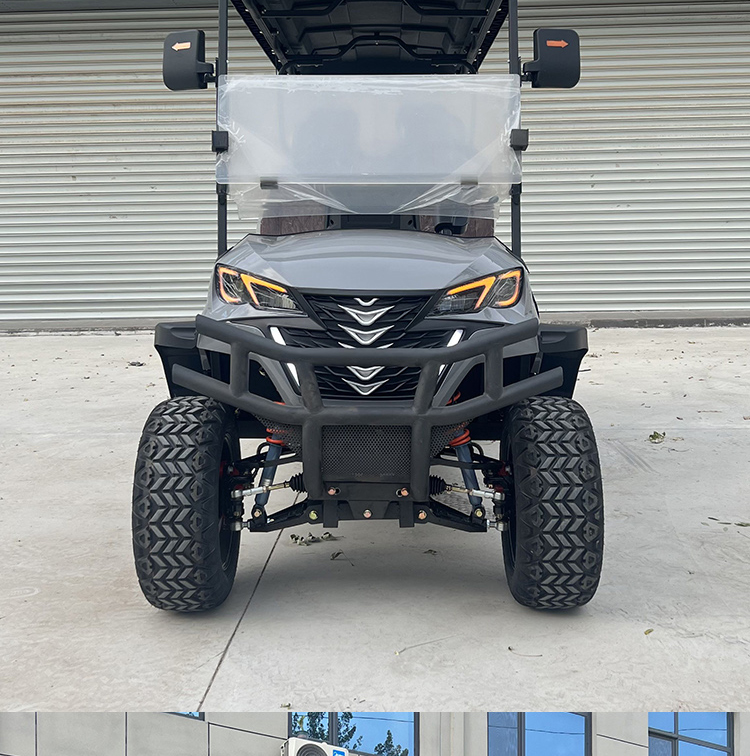

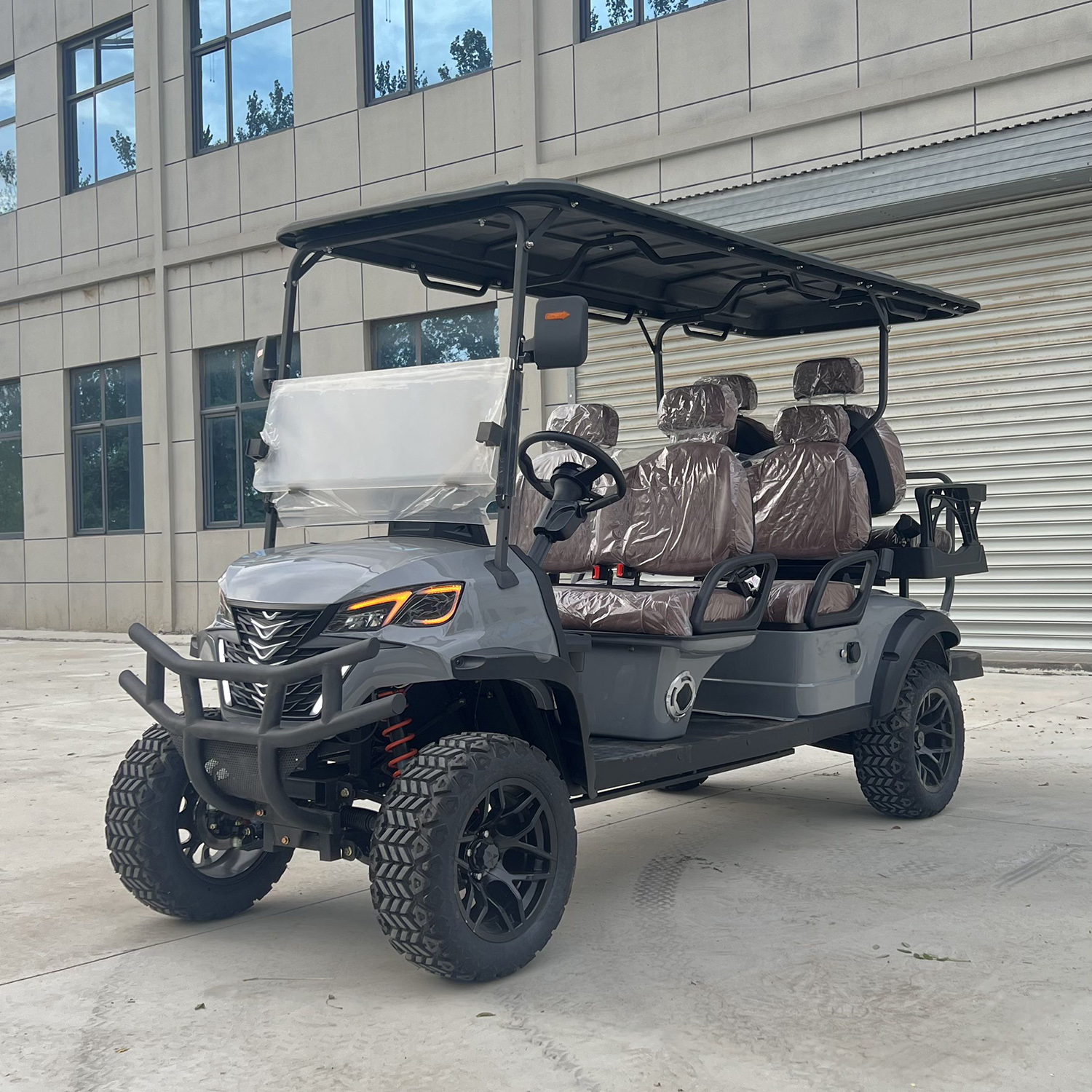

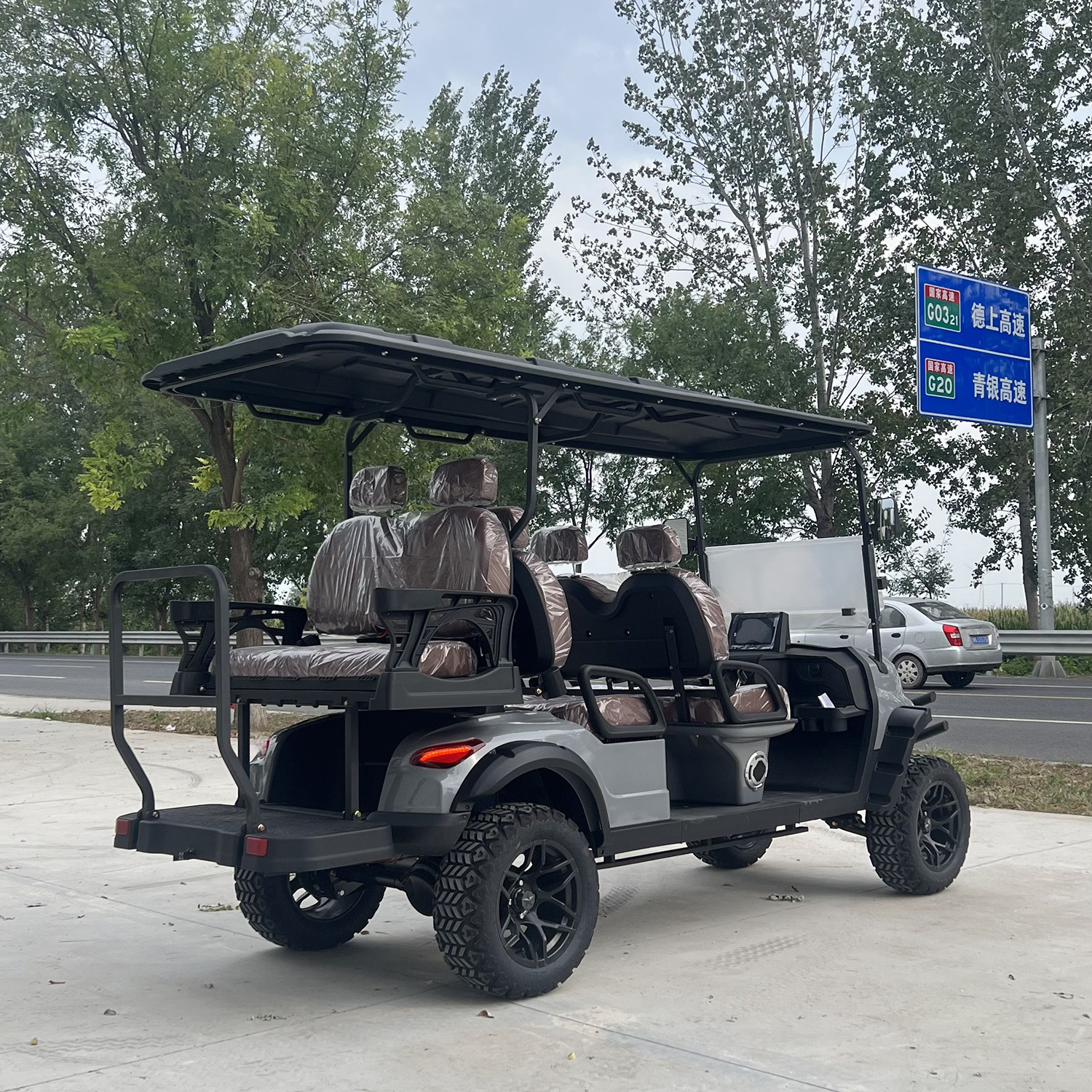

GLHF Golf
1 / 5
| Seats | 2 seats | 2+2 seats | 4+2 seats | 6+2 seats |
|---|---|---|---|---|
| Size | 2400*1350*1900mm | 2800*1350*1900mm | 3680*1350*1900mm | 4250*1350*1900mm |
| Weight | 450KG | 510KG | 590KG | 670KG |
| Detailed Specifications | |
|---|---|

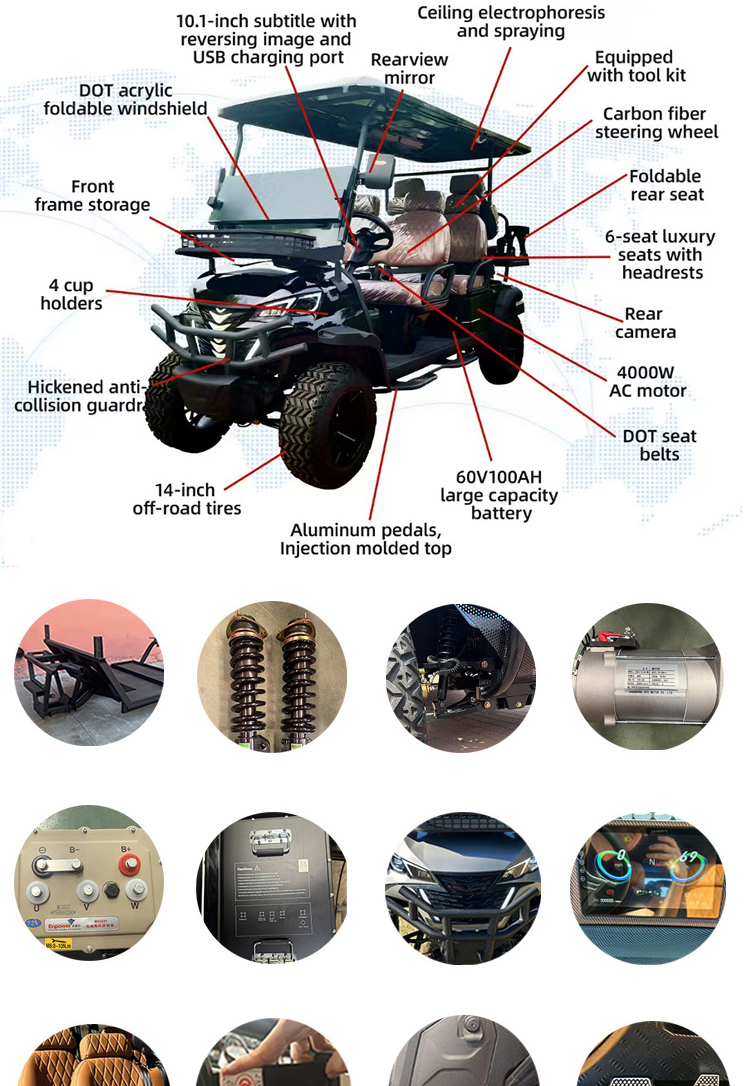

| 01 Key Components | |
| Controller | Inbor, SME or China Local Brand |
| Motor | 4KW/5KW/ AC motor |
| Battery | 48V/60V/72V 100AH / 150AH / 200AH Battery |
| 02 Performance and Dimensions | |
| Passenger Capacity | 2-8 |
| Range (Loaded) * | 90-100kms |
| Max.speed | 36-45km/h |
| Max. Gradeability | 25%-30% |
| 03 Body and Frame | |

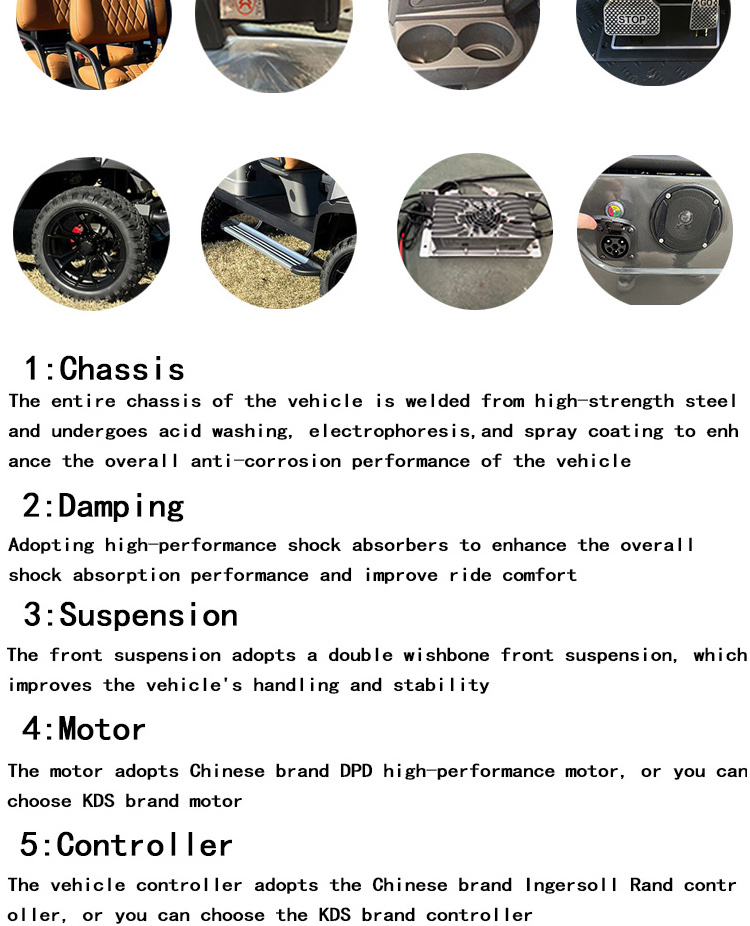

| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating |
| Body and Roof | PP plastic front body and rear body; PP vacuum form roof |
| Windshield | Organic plastic windshield, splited tinted |
| Roof supports | Carbon Steel, powder coated |
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat |

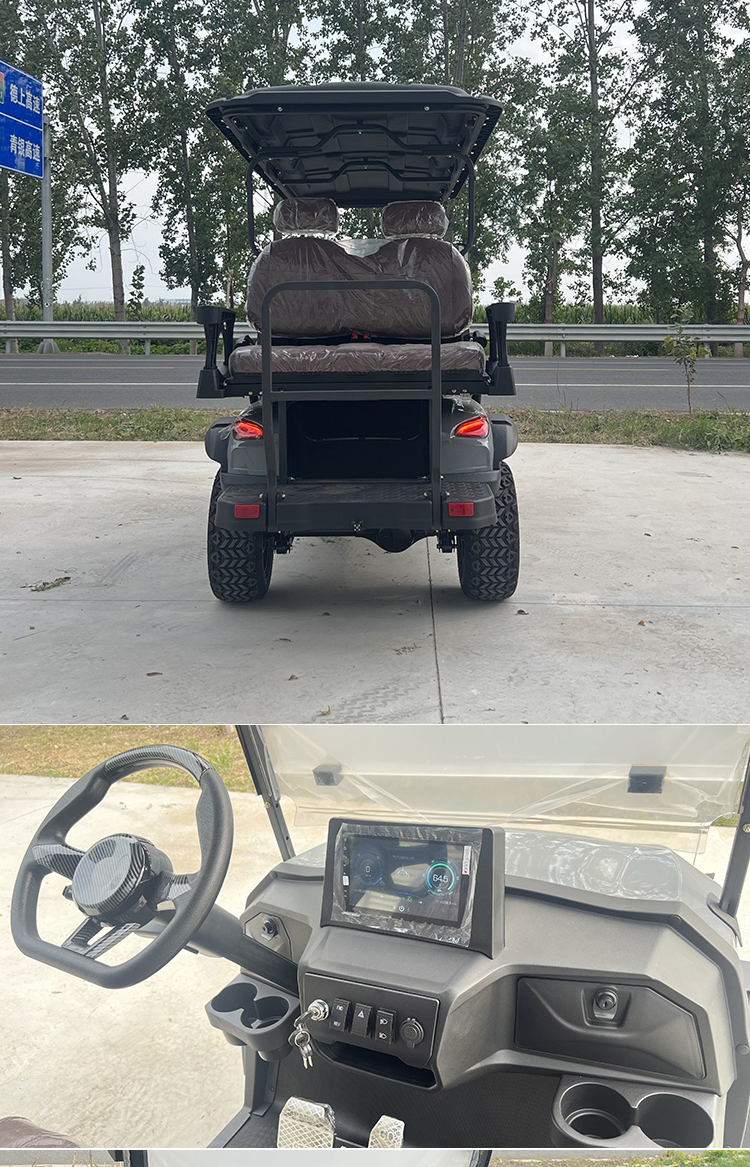

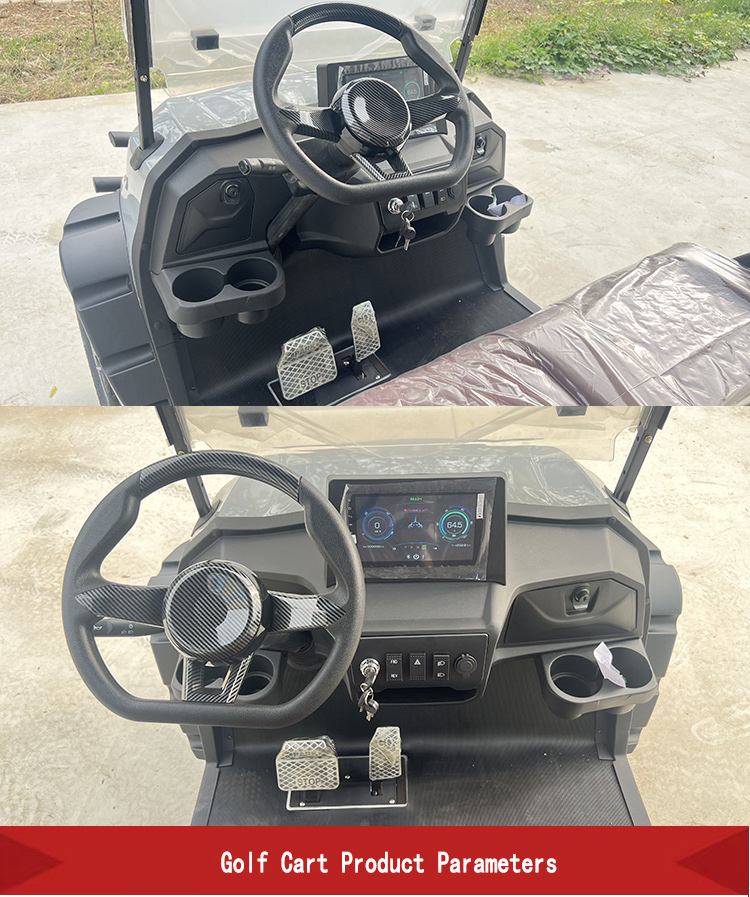

| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key |
| Side trim | Plastic |
| Side mirror | 2pcs, foldable |
| 04 Electric System | |
| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights, electric horn. |
| Backup Buzzer | 12V |
| Digital Meter | LCD screen, with speedometer, odometer, battery power meter and various indicators |
| Charger | Smart charger |
| 05 Steering, Brake, Transmission and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Four-wheel hydraulic brake + pedal parking brake |
| Accelerator | Stepless speed change |
| Suspension system | Cylinder hydraulic shock absorption+integral rear axle+leaf spring |
| Driving mode | Rear axle secondary reduction, AC motor |
| Rear axle | Integrated, variable speed gear |
| Wheel & Tyre | 205-50-12, Aluminium wheel hub, vacuum tire |
Q: What's your trade terms?
A: EXW, FOB, CIF, DDU, DAP, DDP.
Q: What's your MOQ?
A: 1 piece.
Q: Why should you buy from us not from other suppliers?
A: We have more than ten years of export experience, export all over the world, and we have our own production plant, can give you the most favorable prices and high quality products and services.
Q: What's your delivery time?
A: Some of the goods are in stock, and some customized goods need to be ordered and arranged for production. In order to ensure that the goods are brand new, we need a week to two weeks to produce the goods you need.
Q: What's your warranty?
A: 1 year.
Q: What's your payment terms?
A: T/T, Alibaba Trade Assurance, PayPal, Credit Card.

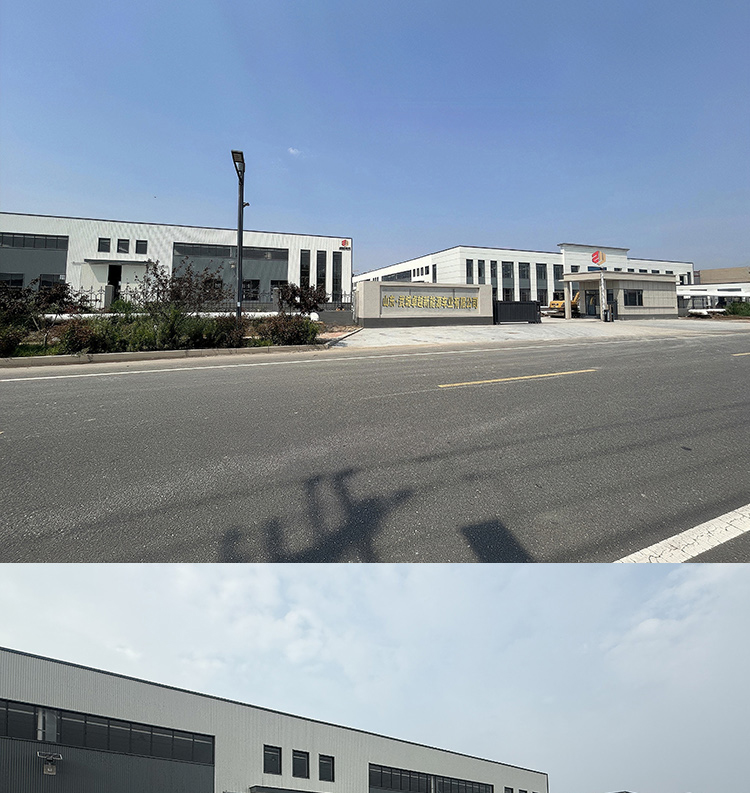

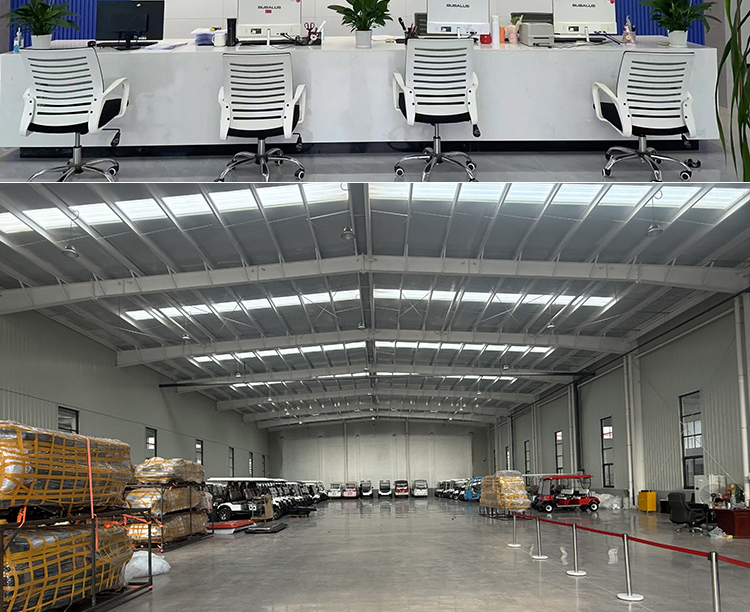

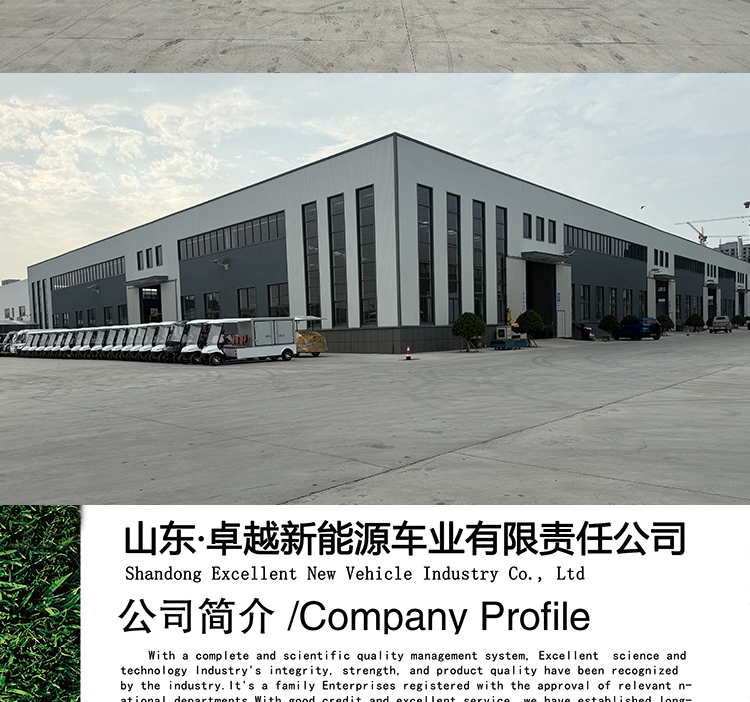

Q: Are you manufacturer?
A: Yes, we are. We have our own factory.
