| Bodywork | |
| Frame | Carbon steel chassis super antirust (Guarantee normal use for 10 years) |
| Body | High-strength and impact resistant composite material injected |
| Body Color | white, green, red |
| Bodywork parameters | |
| Overall length: | 3000mm |
| Overall width | 1300mm |
| Overall height (with suntop) | 1810mm |
| Wheel base | 2100mm |
| Front wheel tread | 870mm |
| Rear wheel tread | 985mm |
| Width of seat | 50cm |
| Seating capacity | 2 |

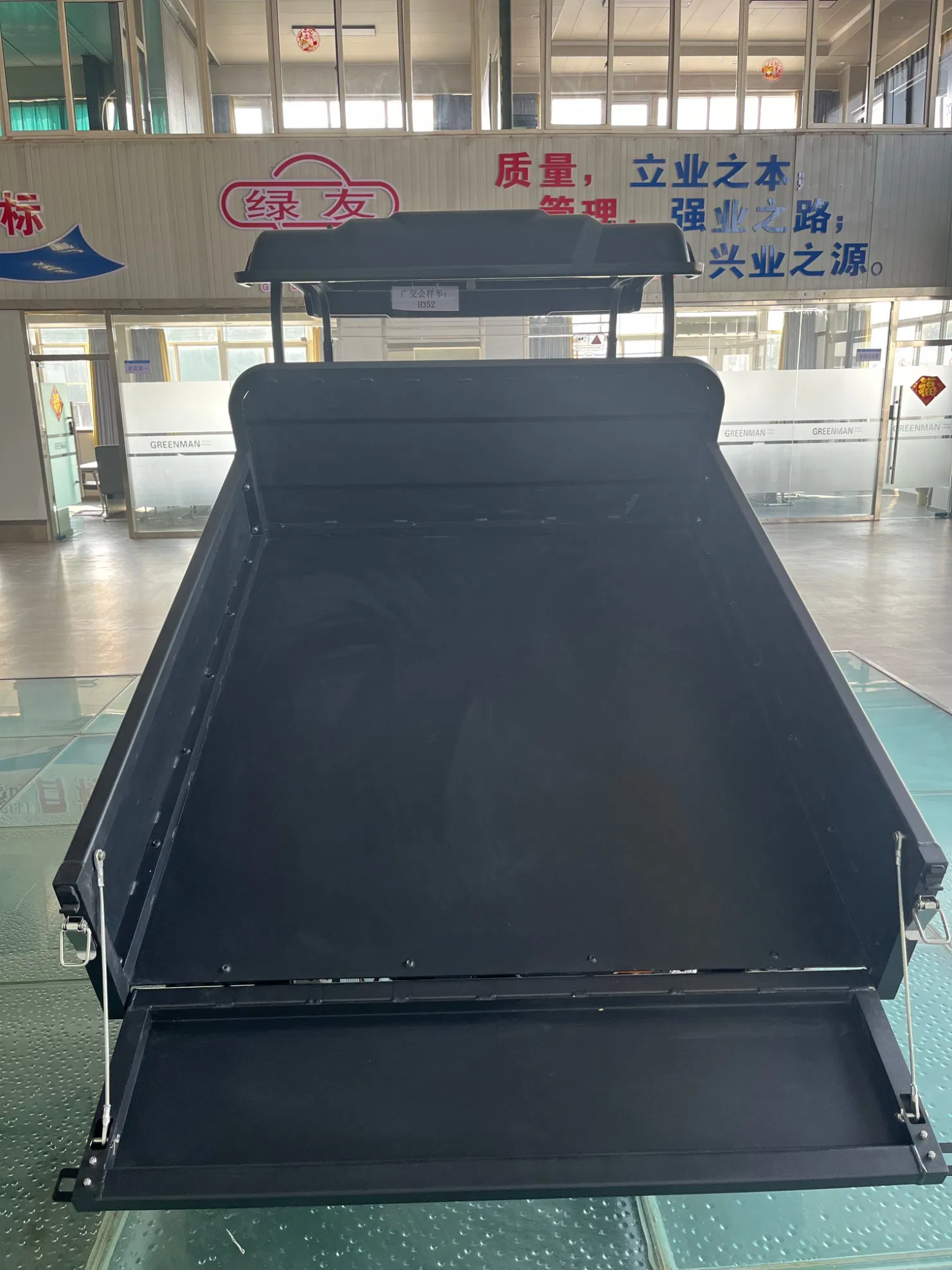

| Cargo box size | 1180×1100×300mm |
| Dry Weight (with batteries) | 450kgs |
| Carrying Capacity | 360kgs |
| Turning radius (m) | 2.8m |
| Maximum speed | 30km/h |
| Power system | |
| Driving system | Gear-driven, Stepless speed change, Electric rear drive |
| Motor | KDS (3.7 kw) DC Separately Excited (imported) |
| Battery | Maintenance free battery 8V × 6 |
| Charger | 48V 25A computer controlled charger |
| Speed controller | Controller |
| Gear ratio | 12.49 |
| Maximum climbing ability | 30% |
| Steering and Suspension | |
| Steering system | Rack and pinion steering system, automatic rocker compensating function |
| Front suspension | Macpherson independent suspension |
| Rear suspension | Multileaf spring suspension + cylinder hydraulic shock absorber |
| Brake system | Rear drum brake + Electric parking system |
| Automatic speed control system | Controller + Induction motors |
| Autobrake System | Controller + Induction motors |
| Braking distance | ≤ 4m |
| Wheel & Tyre | 18X8.50-8, 4layer superior tread tire |
