| Electrical system | controller | permanent magnet synchronous system | |||
| Battery | Special maintenance-free battery for traction 96V (6V*12pieces 200AH) | ||||
| Motor | Special AC asynchronous motor 96V/15KW | ||||
| Charger | Computerized intelligent car charger 96V/25A, charging time <8 hours | ||||
| DC Converter | High power isolated DC converter 96V/12V-500W | ||||

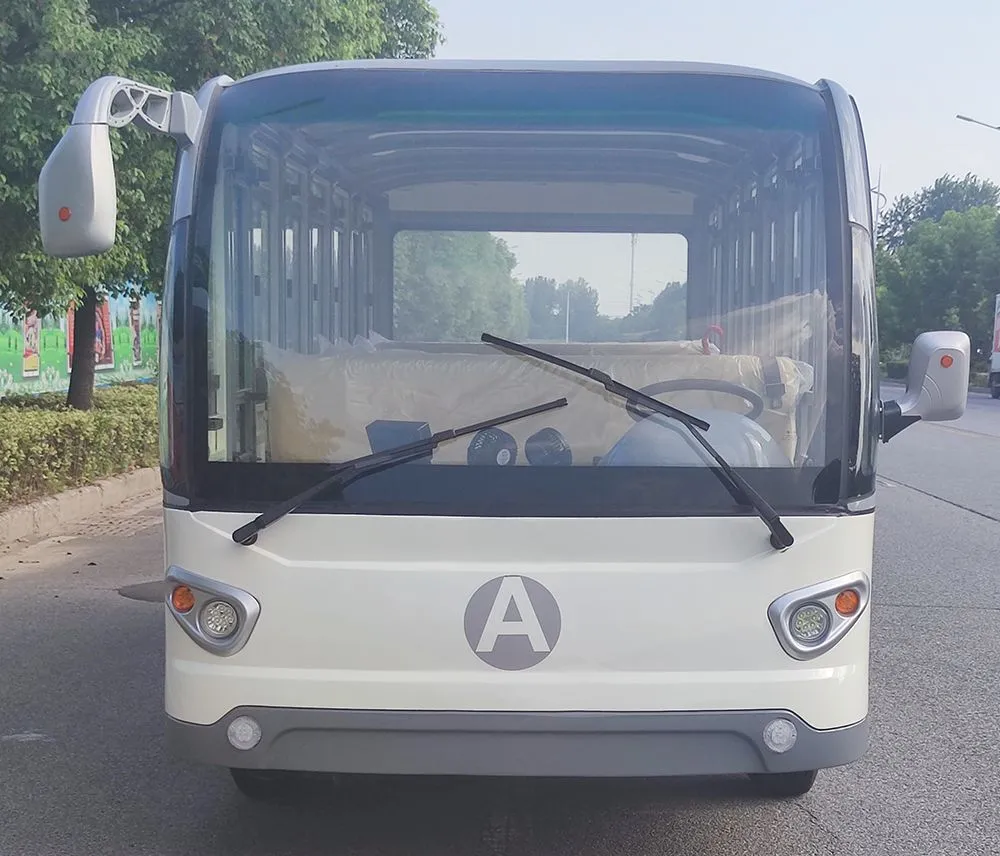

| Body configuration | Front shield and wiper | Automotive laminated glass, wiper blades | |||
| Roof | Aluminum profile frame plus GFRP fiberglass roof lightweight design | ||||
| Cushion | Ergonomic design, luxurious PU fabric seats are made of cold hair sponge and not easily deformed. | ||||
| Floor | Aluminum alloy anti-slip floor | ||||
| Body | The body is lightweight designed with sheet metal, GFRP fiberglass and aluminum profiles, also beautiful and durable, lightweight and other unique advantages. | ||||
| Chassis | Made of national standard steel, the main beam is made of patented technology for tailor welding and pickling, phosphating, cathodic electrophoresis and anti-rust treatment. | ||||
| rearview mirror | Adjustable for each hand, foldable exterior rearview mirror. | ||||
| Led light signal | Headlights, turn signals, reversing lights, brake lights, fog lights | ||||
| Dashboard | Molded dashboard, electric vehicle combination meter, electric lock switch, combination switch, double-position wiper switch, emergency double flash switch | ||||
| steering system | Turbine steering gear + EPS electric power assist | ||||
| Brake system | Front and rear drum brakes + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake parking | ||||
| suspension system | Front: Integrated front axle leaf spring + damper Rear: Integrated rear axle leaf spring + damper |
||||
| audio speaker | USB playback host can be plugged in and dual speakers, Whistler, reversing reminder buzzer. | ||||
| wheel | 185/70R14C+ wheel cover | ||||
| Technical parameters | length*width*height | 6180*1840*2150(mm) | curb weight | 2140(kg) | |
| Rated number of passengers (people) | 23 | Trunk size | --- | ||
| Maximum driving speed | ≤30km/h | Trunk load | --- | ||
| Driving range | ≥100(km) | minimum ground clearance | 330mm | ||
| Maximum grade | ≤10% | Wheelbase | 3700±10(mm) | ||
| Slope holding performance | 20% | Wheelbase (front/rear) | 1575/1565(mm) | ||
| Minimum turning radius | ≤7.5m | braking distance | ≤5m | ||
| Optional parts |
1. The enclosed sightseeing car can optionally have a fully glass enclosed door.
2. Change 6v12 only to 8v9 only - 2,000 yuan 3. Upgrade from 72v7.5 to 72v10KW +2500 yuan 4. Upgrade from 72v7.5 to 72v15KW +4000 yuan 5. Replace the permanent magnet synchronous water cooling system + 2,000 yuan 6. Sightseeing car without doors and rear screen - 1,000 yuan 7. Install air conditioner + 3,000 yuan 8. Installing an insulated interior roof for less than 14 seats +1,000 yuan; 17 seats +1,500 yuan; 23 seats +200 yuan 9. Aluminum alloy wheels 500 yuan 10. Driving recorder 500 yuan 11. Luxury seats 1,400/row |
||||
Answer: We could customize vehicles as per customer's special request with reasonable cost and delivery time.
Answer: We provide 1 year warranty. For failed part under warranty, if it can be repaired at your side and the repair cost is lower than the value of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from.
Answer: We will supply the vehicle assemble guide manual. When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed.
Answer: Yes, we will accept.
Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'.
