| Model NO. | STS500 |
| Charger Application | Standard Battery, Storage Battery Charger |
| Nominal Voltage | 12V/24V/36V/48V/60V/72V |
| Charger Style | Intelligent Charger |
| Compatible Battery Type | Lithium / Li-ion / Lead Acid / LiFePO4 Battery |
| Size | 12V15A/24V15A/36V8A/48V8A/60V7A/72V6A |
| Certification | RoHS, CE |
| Socket Type | Customized |
| Recyclable | Recyclable |
| Product Name | Portable Battery Charger |
| Input | 180VAC ~ 260 VAC, 50 Hz / 60Hz |
| Output | 500W |
| Efficiency | ≥ 93% (Full Loading) |
| Application | Golf Cart / Forklift / Electric Scooter / Motorcycle |
| Feature | Safe Convenient |

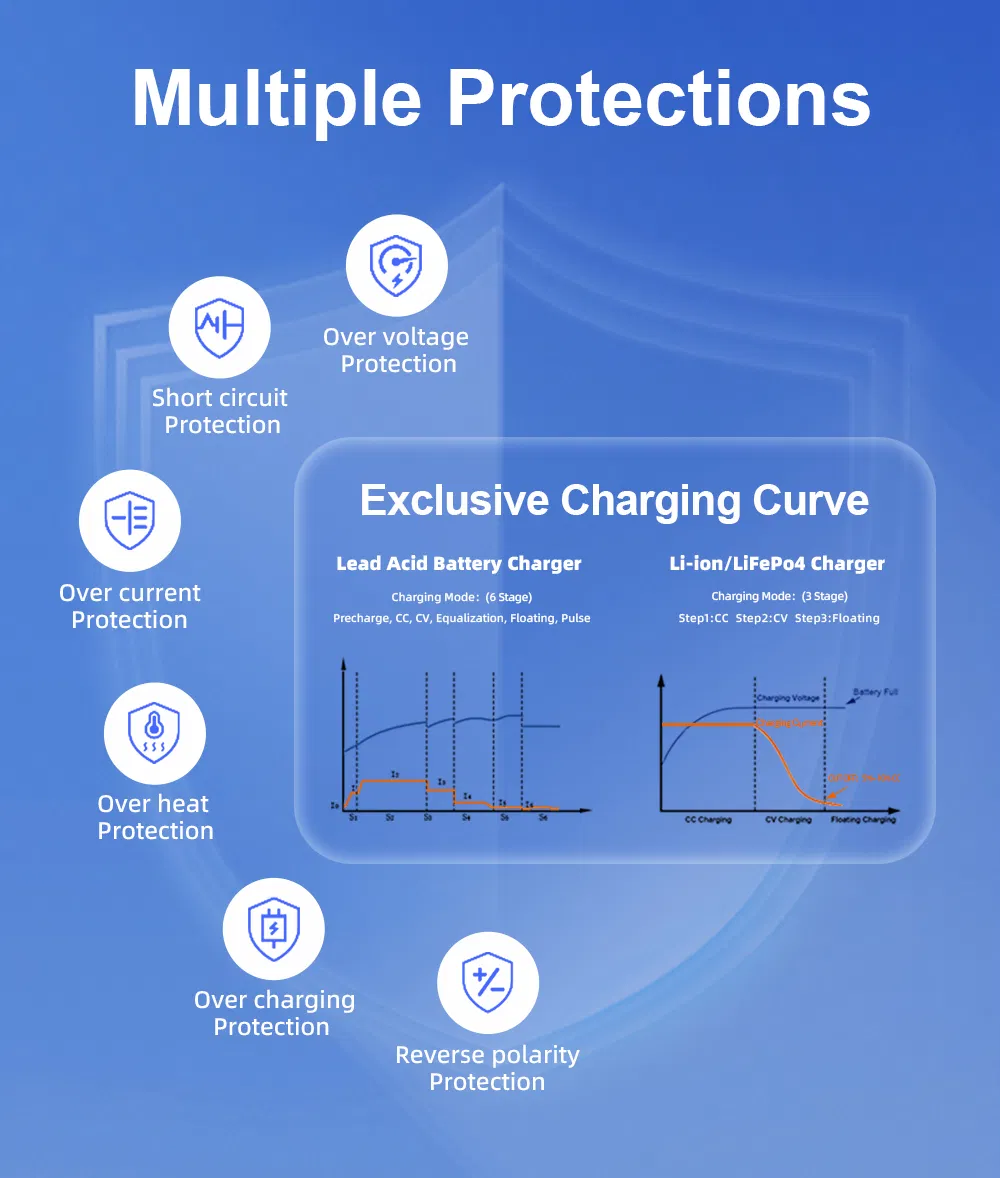

| Protection | Multiple Protection |
| IP Rating | IP34 |
| Service | VIP Service |
| Warranty | 24 Months |
| Logo | Customized |
| OEM/ODM | Acceptable |
| Package | Customized |
| MOQ | 1 PCS |
| Transport Package | Paper Box Packed |

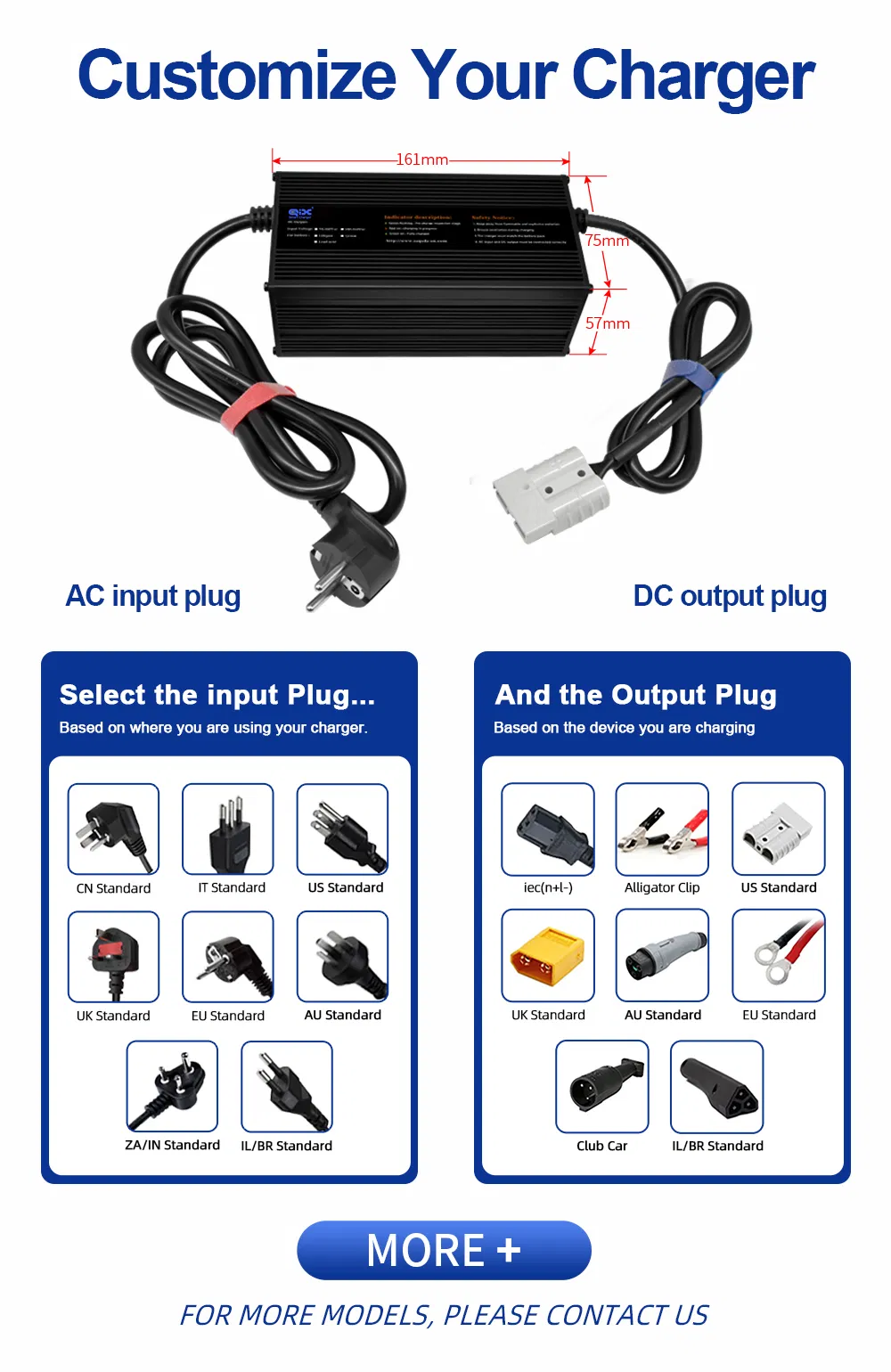

| Specification | 161*75*57mm |
| Origin | China |
| HS Code | 8504409999 |
| Production Capacity | 50,000 |
| Package Size | 52.00cm * 30.00cm * 34.50cm |
| Package Gross Weight | 20.500kg |
| Lead Time |
15 days (1 - 2 pieces) 20 days (3 - 100 pieces) 25 days (101 - 200 pieces) To be negotiated ( > 200 pieces) |
These smart battery chargers are designed for lead acid batteries, LiFePO4 batteries, lithium batteries, etc. They can be utilized in electric cars, electric forklifts, electric sightseeing cars, electric patrol cars, golf carts, and electric dining cars for battery pack recharging.

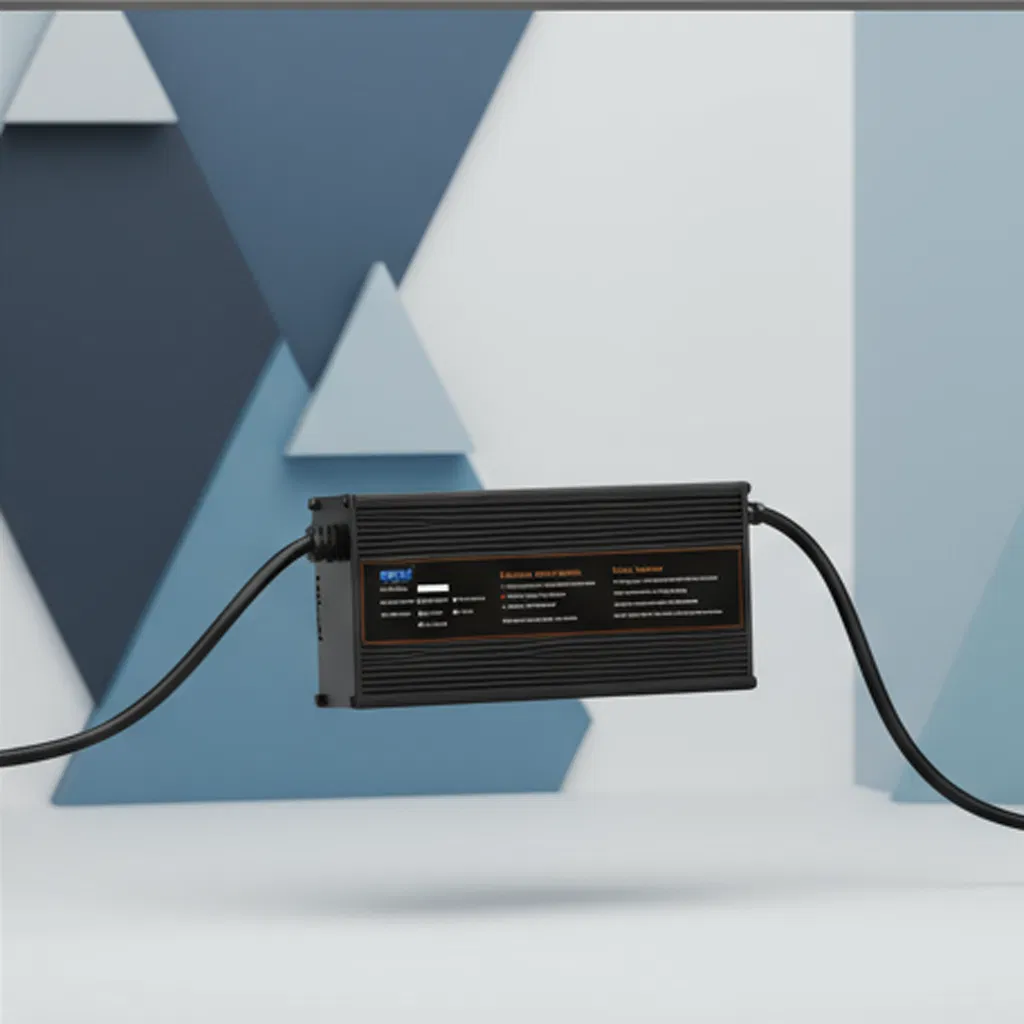

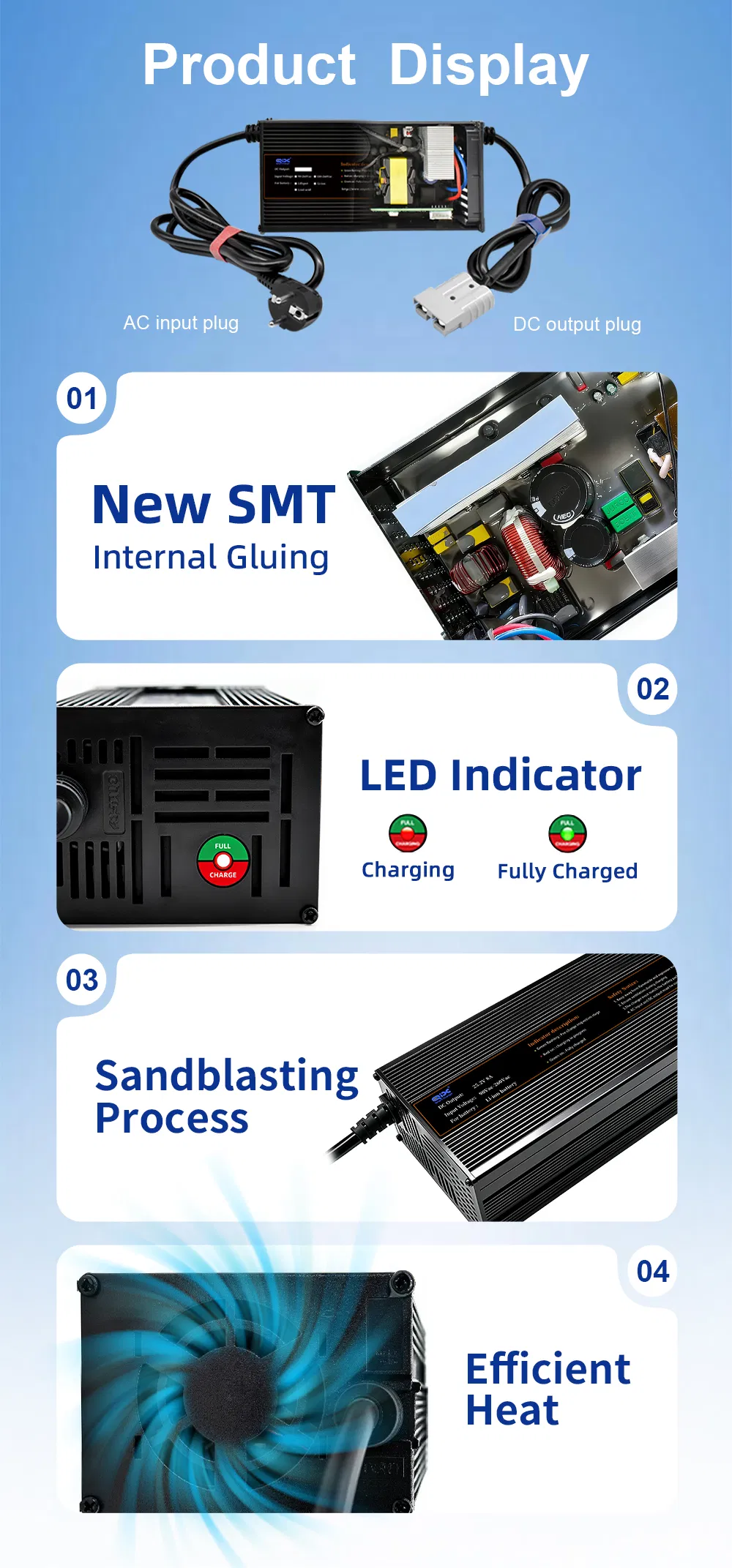

Equipped with a fully enclosed aluminum alloy shell for faster heat dissipation and an intelligent temperature control fan to ensure long-term stable operation. Waterproof, splash-proof, and rain-proof ratings make outdoor use highly reassuring.
| STS500 Battery Charger Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Input Voltage: 180VAC~260VAC 50HZ/60HZ | CV (Constant Voltage) | CC (Constant Current) | Transition / Cut-off Current | Net Weight (kg) | Size (mm) | |||
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid | Li | |||
| 12V | 14.7V | 16.8V | 14.6V | 15A | 2A | 1.5A | 0.8 | 161*75*57 |
| 24V | 29.4V | 33.6V | 29.2V | 15A | 2A | 1.5A | ||
| 36V | 44.1V | 42V | 43.8V | 8A | 1.1A | 0.8A | ||
| 48V | 58.8V | 54.6V | 58.4V | 8A | 1.1A | 0.8A | ||
| 60V | 73.5V | 71.4V | 73V | 7A | 0.9A | 0.7A | ||
| 72V | 88.2V | 84V | 87.6V | 6A | 0.8A | 0.6A | ||
| Note: Cut-off point for Li battery is 5% of CC, adjustable between 3-10%. | ||||||||

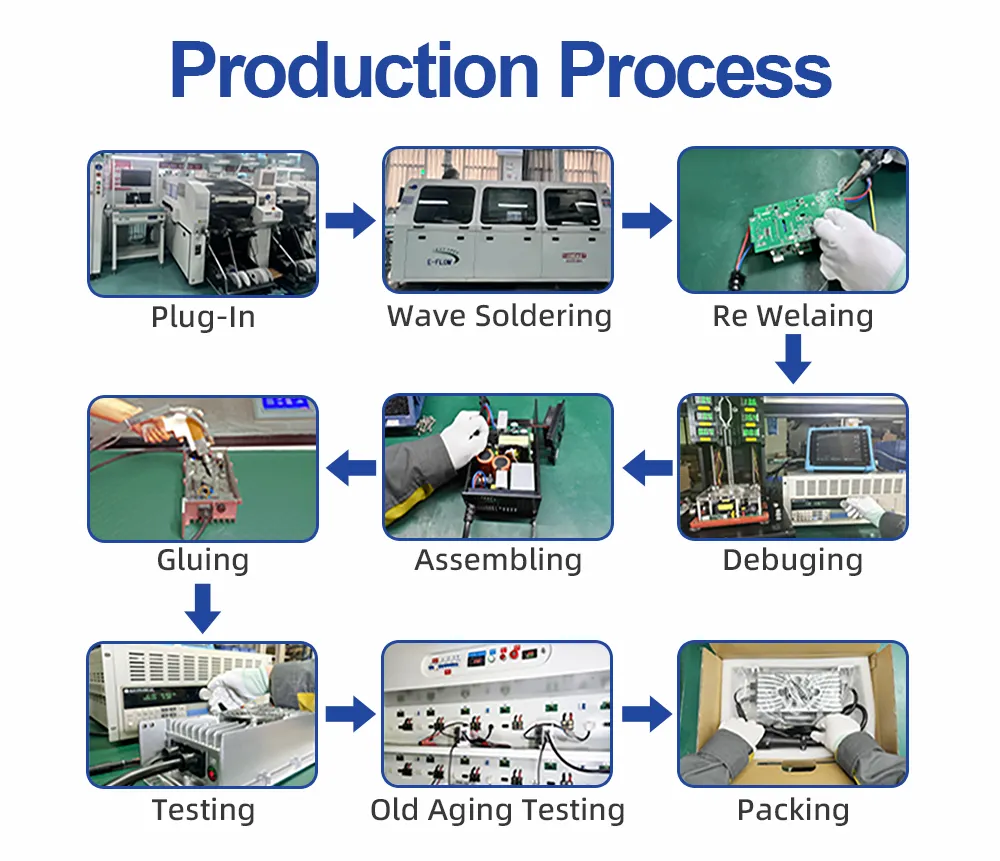

Accurately mount electronic components onto the PCB board to ensure the precise positioning of each component.
The plug-in components are firmly soldered to the circuit board through high-temperature soldering, forming a stable electrical connection.
Perform manual re-inspection and repair welding on key points to further enhance product reliability.
Conduct the first functional test to ensure that the circuit performance meets the design requirements.
By modular assembly, PCBA is precisely combined with other structural components to form a complete product framework.
The core part adopts the sealing process of glue filling, which improves the waterproof, shockproof, and heat dissipation performance.
The product undergoes comprehensive functional testing, including strict verification of performance, stability, and security.
Simulate a long-term operating environment and conduct continuous power-on aging tests on the product to ensure its long-term reliability.
Adopting shockproof and dust-proof packaging to ensure transportation safety.
Every step carries our ultimate pursuit of quality. We hope this guide is helpful!
Specializing in chargers, lithium batteries, BMS, Inverters, and other electronic products, we uphold global standards to deliver quality, integrity, and innovation. Below are our key certifications:
Customer feedback indicates high satisfaction with our products. Users praise the functionality, smooth usage, and long-term reliability of our products, solving many pain points in daily applications. Professional pre-sales inquiries and after-sales handling also secure high appreciation from our clients.

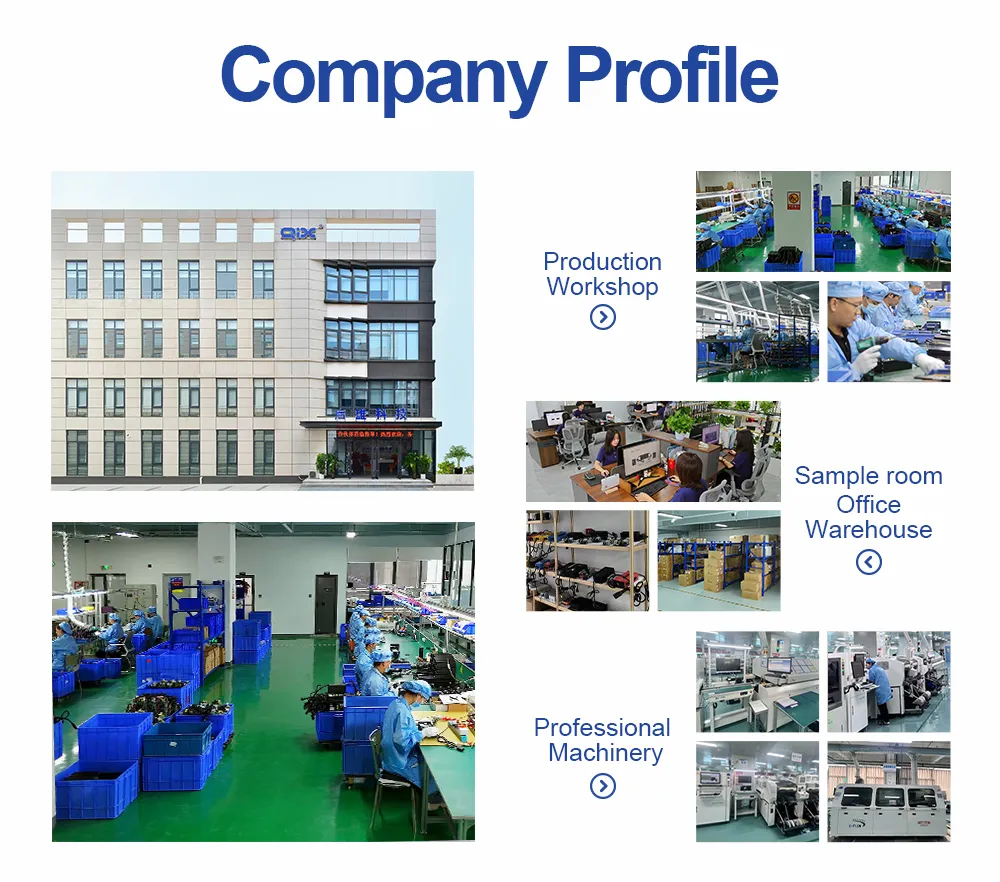

We have been steadily advancing in the field of new energy lithium batteries and battery chargers for 20 years. We operate an intelligent production base, which is the cradle of innovation and quality.
We implement a "Five Dimensional Quality Assurance System" featuring 26 quality inspection processes from raw material selection to finished product delivery. Our products cover lead-acid battery chargers and lithium-ion battery chargers, meeting high global standards.
What sets us apart in the industry is our consistent high-quality service and solid comprehensive capabilities. We accurately match the various requirements you need, relying on extensive and stable cooperative resources accumulated through years of deep market cultivation.
No matter the category, specifications, or quantity of products you need, our team follows up throughout the entire process to provide clean, efficient support.
To ensure shipping fees and delivery schedules align with your needs, let's collaborate to craft the ideal plan. We work to provide smooth shipping solutions and bespoke arrangements tailored perfectly to your requirements.
