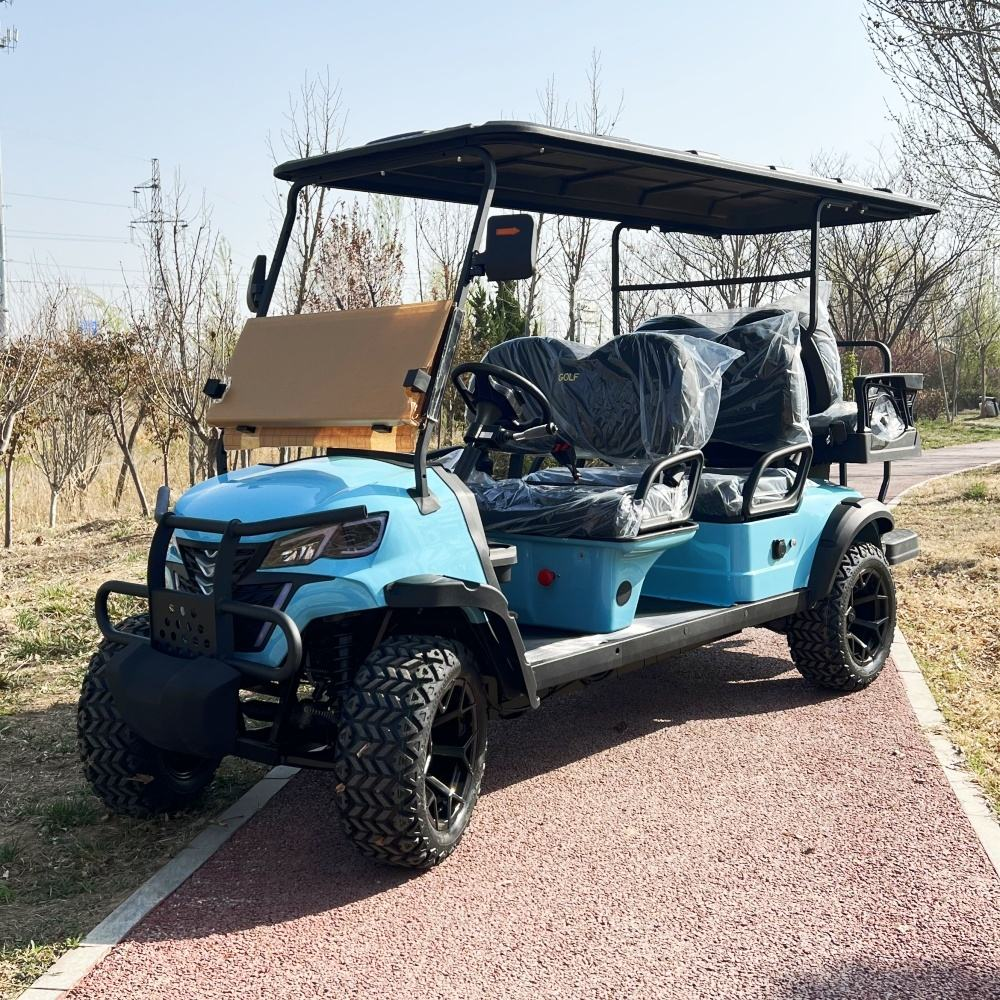

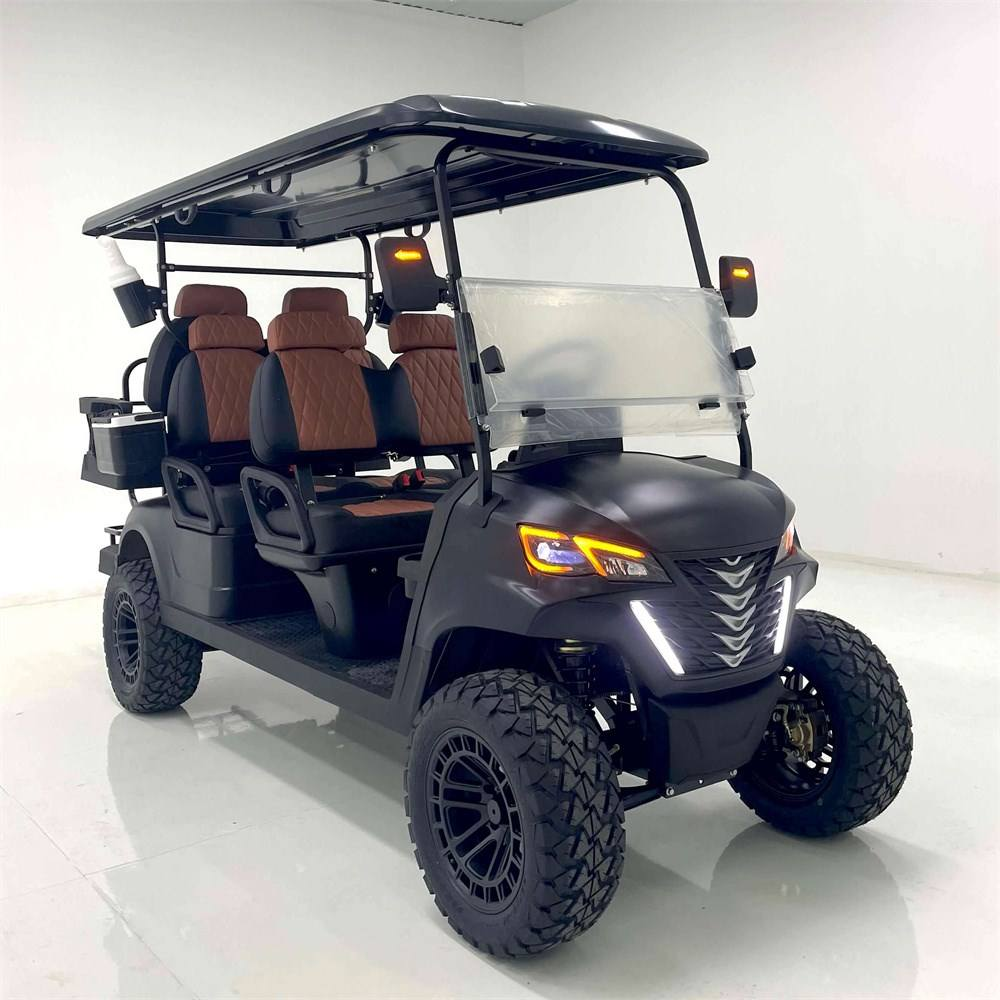

Custom-Built Heavy-Duty Golf Cart | Commercial Fleet for Golf Clubs & Resorts

Video Description

Product Cover

Product Parameters

Model Specifications	TCKC2	TCKC22	TCKC4	TCKC42	TCKC6	TCKC62	TCKC8	TCKC82
Technical Parameters
Overall Dimension (LWH)	250013002000	290013002000	320013002000	360013002000	400013002000	440013002000	480013002000	520013002000
Passengers Capacity	2	4	4	6	6	8	8	10
Max.Speed (km/h)	30 or Negotiable
Max.Travelling Range (km)	80~100
Slope Climbing Capacity	30%
Turning Radius (m)	3.5	3.5	4.6	4.6	5.7	5.7	6.7	6.7
Minimum Ground Clearance (mm)	150
Brake Distance (m)	≤5m
Wheelbase (mm)	1700	1700	2400	2400	3100	3100	3850	3850
Front/Rear Tread (mm)	Front 900mm / Rear 1000mm
Weight (kg)	530	560	600	620	680	710	800	830
Electric System
Motor power (kw)	3.5/4/5kw or customized
Electric Controller	Enpower Fully Intelligent Controller
Battery type	6V 200AH / 8V 150AH / 12V 100AH option
Charger	Intelligent high-frequency car charger
Charging time (h)	8~10
Charging input voltage	220V/110V
Chassis System
Suspension	Front Torsion Beam Suspension + Integral rear axle high strength steel plate spring cartridge or customized
Brake system	Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized
Steering	"Rack & Pinion" Steering
Motion transfer system	Continuously variable transmission
Drive mode	Rear drive
Exterior Specifications
Dashboard	Multi-function smart display (Bluetooth, radio, movie, etc.)
Light	LED combined headlights, turn signals, combined rear taillights, brake lights and electric horn
Seat	Joint row seats (leather fabric + high resilience PU seats)
Body material	Steel frame + injection shell / ABS engineering plastic molded parts
Wheel	10/12/14 inch iron/aluminum wheels options
Tire	Road and off-road tire options

Product Specification

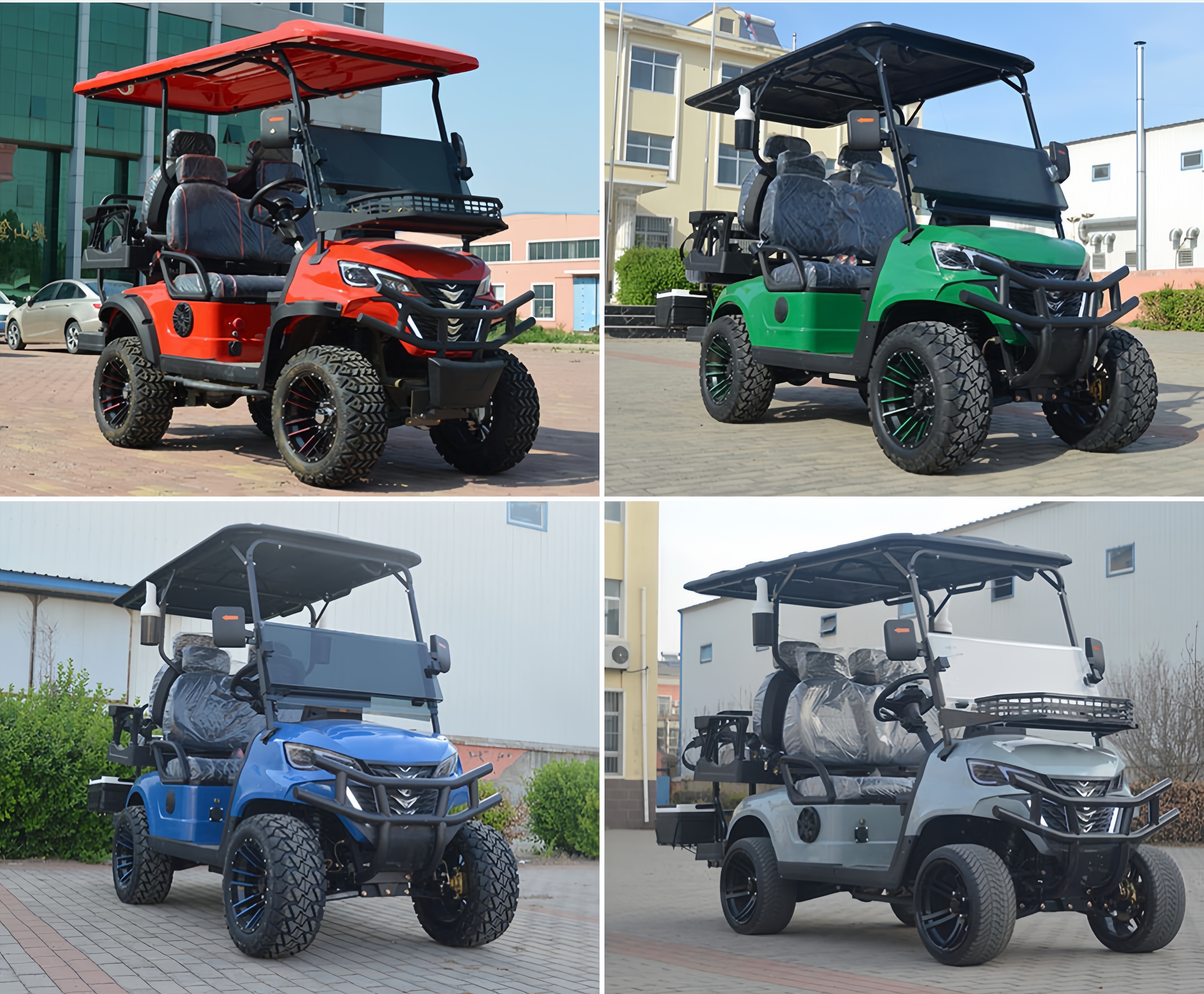

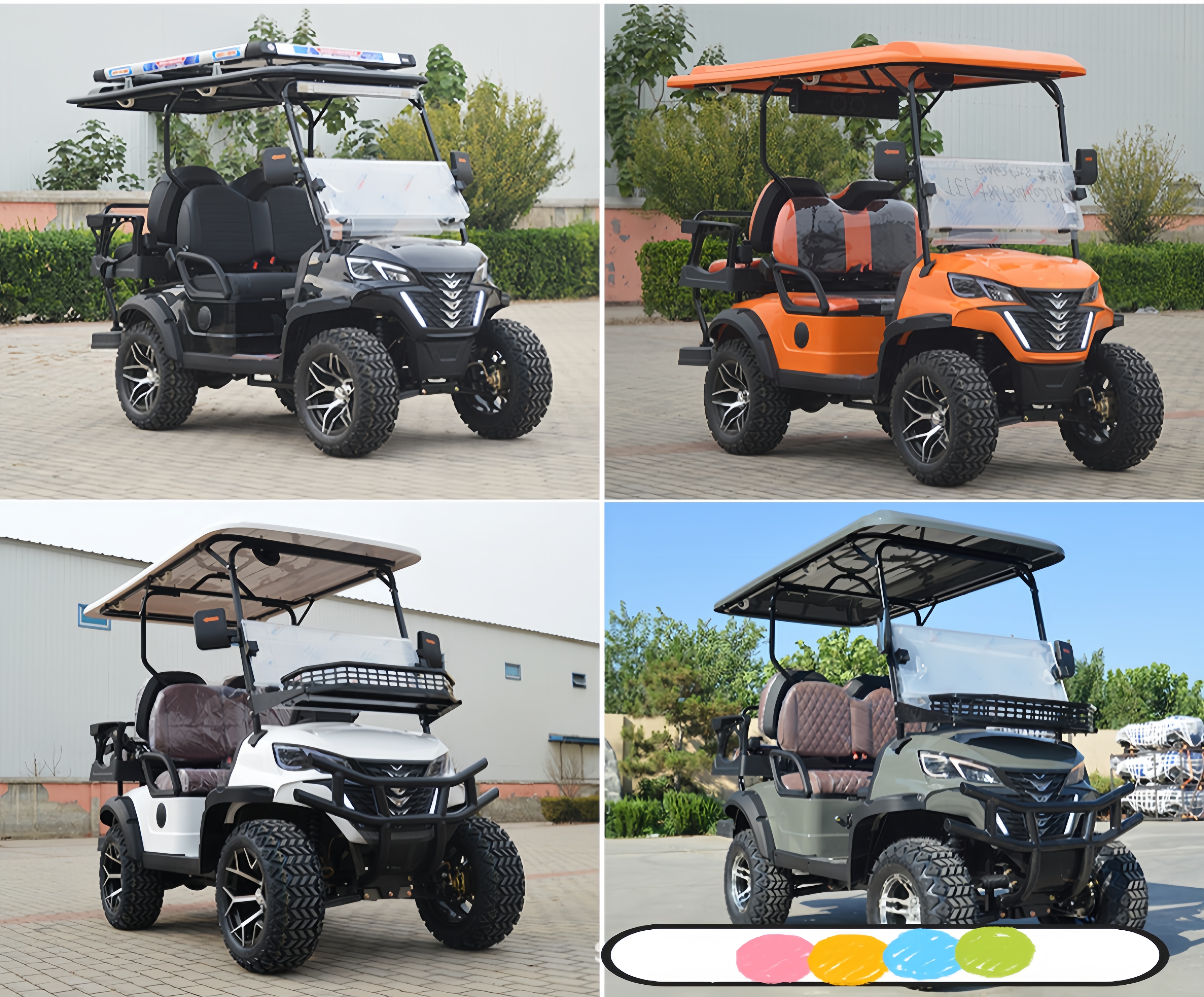

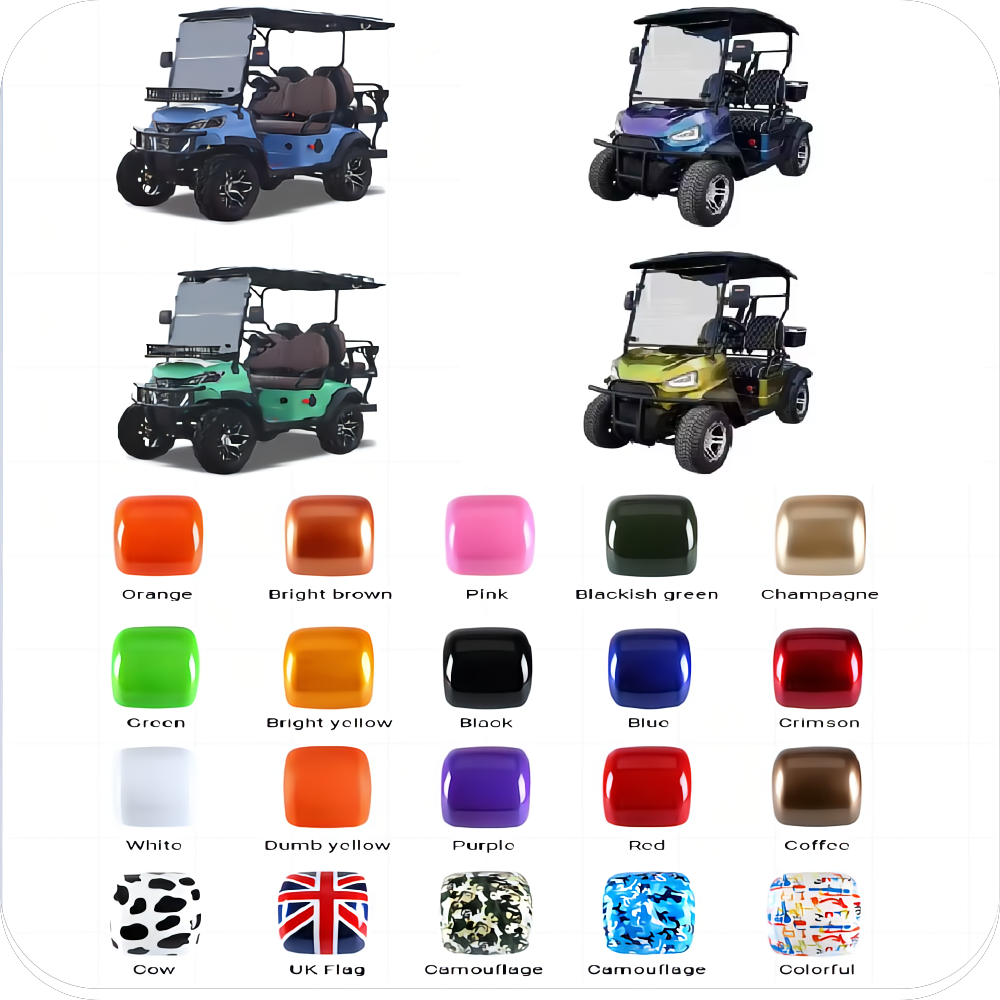

Any Color Customization

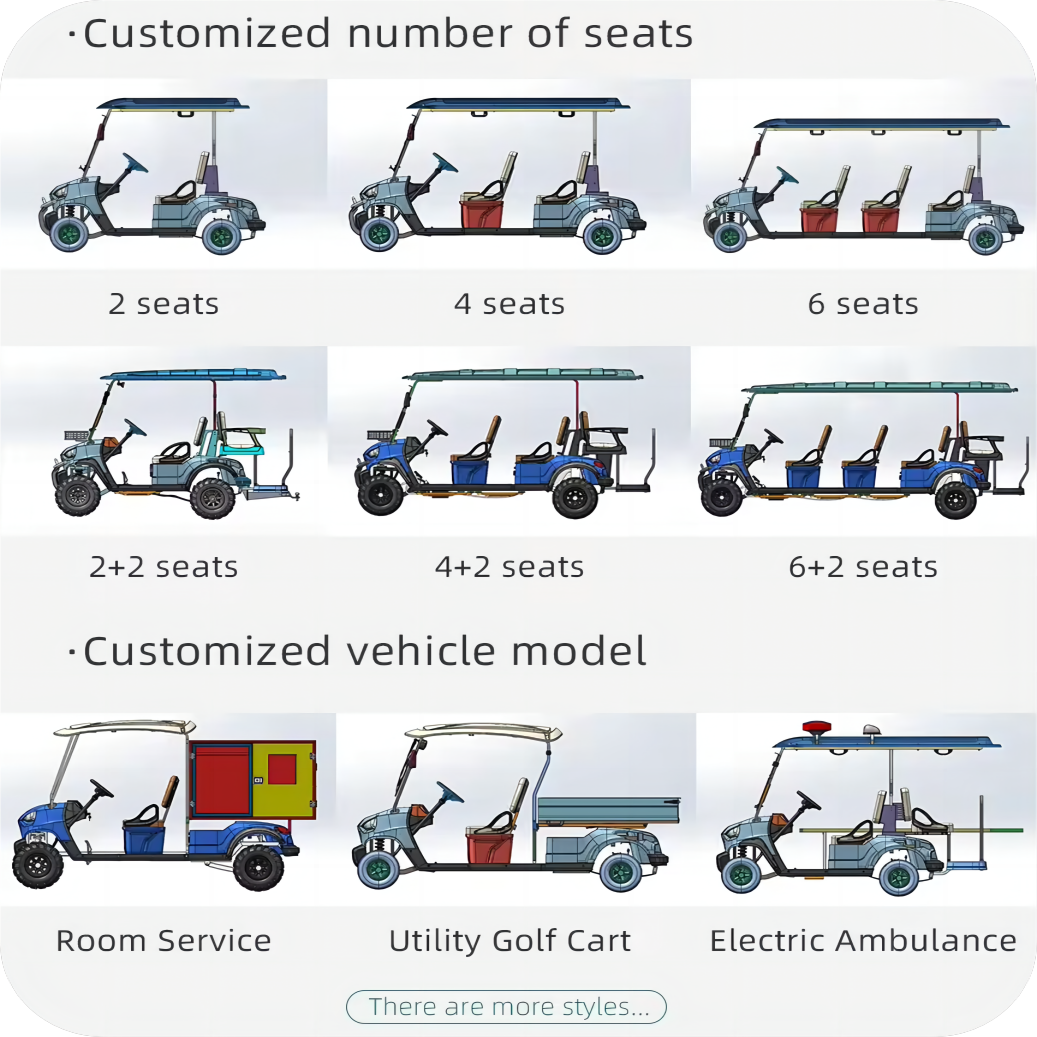

Seat Options

Product Details

Customizable Battery

Optional Suspension

Customizable Wheels

Customizable Motor

Customizable Dashboard

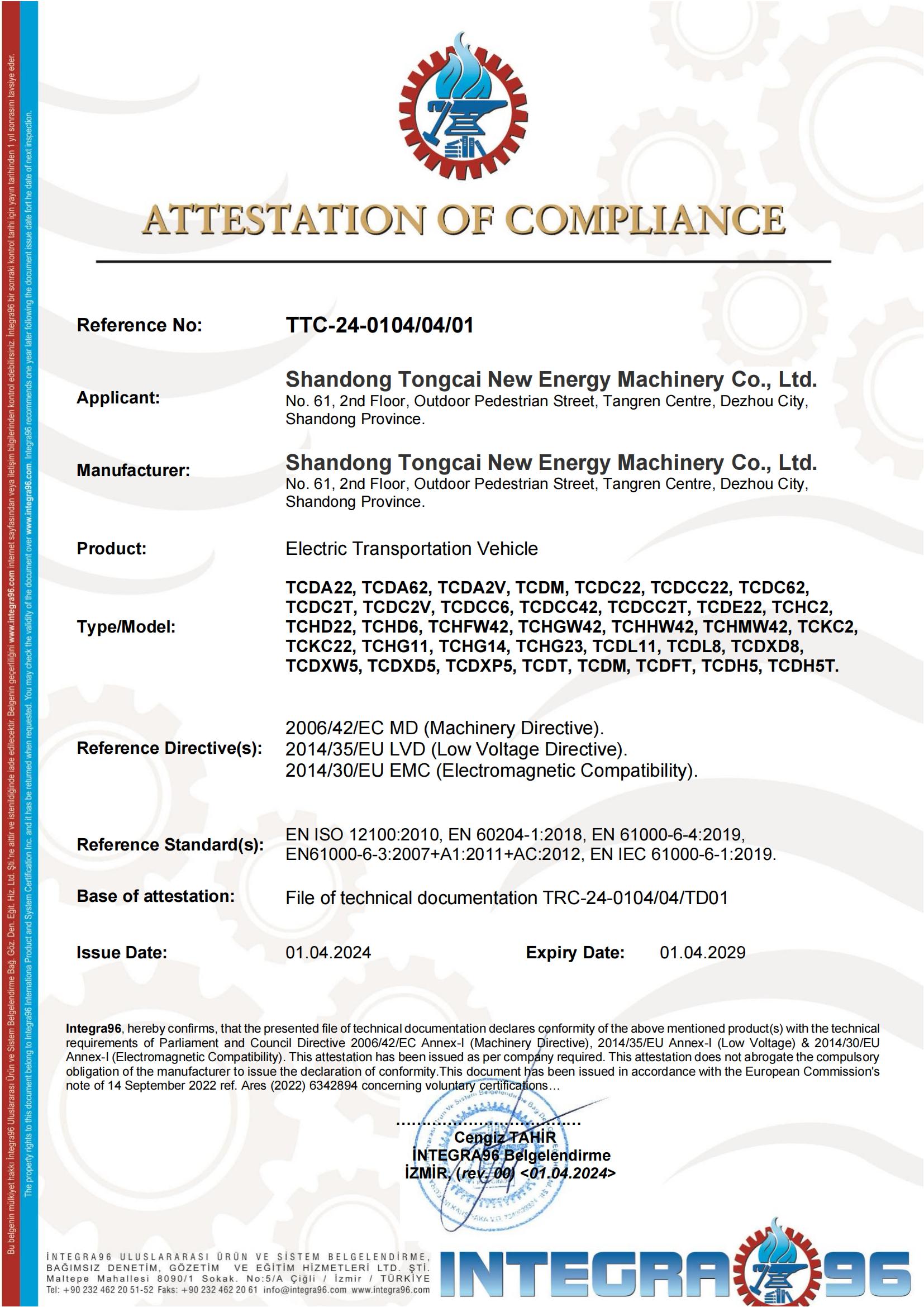

Certifications

Packing & Delivery

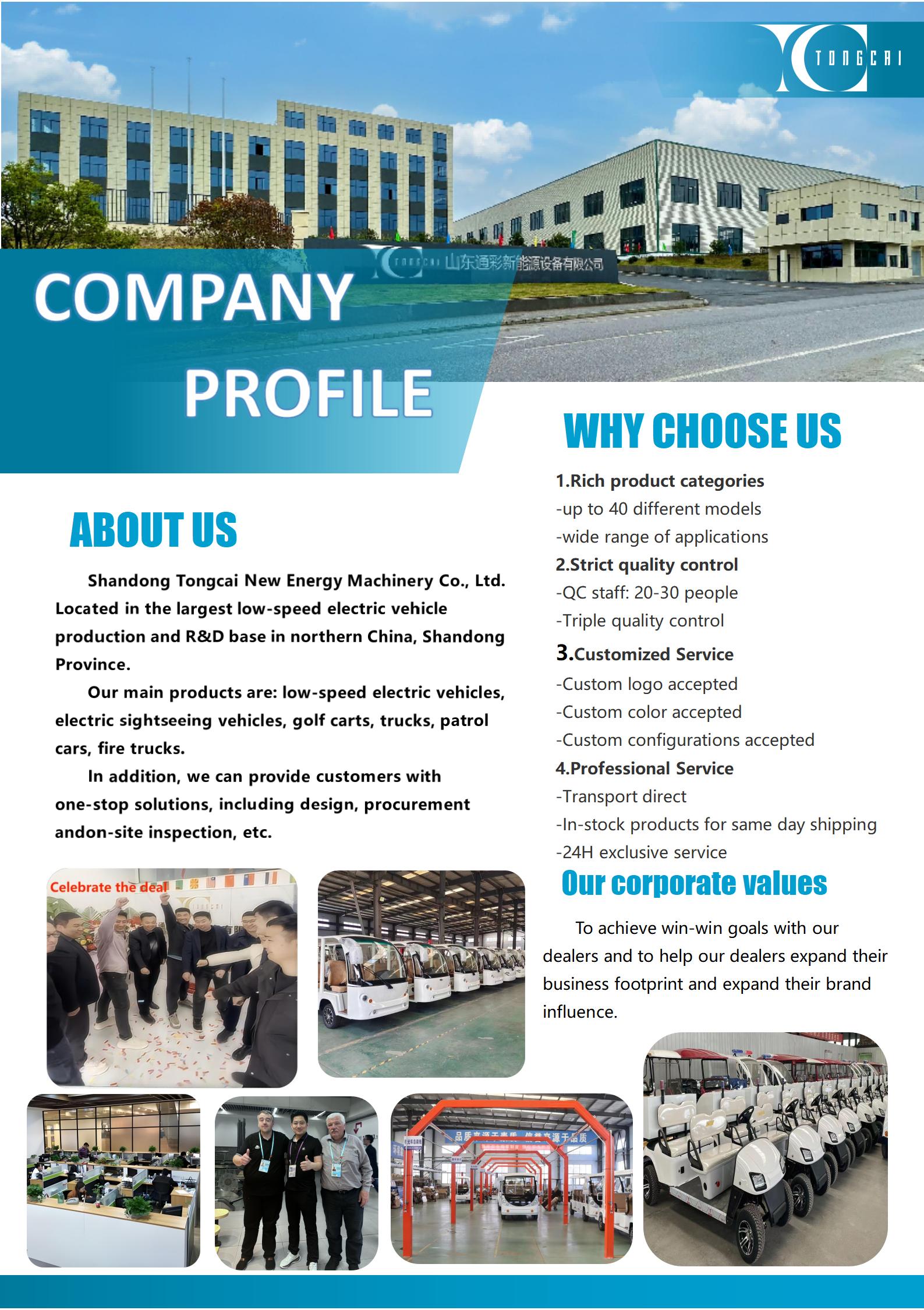

Manufacturing Facility

Positive User Experience Feedback

Frequently Asked Questions

Q1 What is your terms of packing?

Generally, we pack our goods in containers by iron frames. If you have special requirements, we can accommodate them.

Q2 What is your terms of payment?

T/T 30% as deposit, and 70% balance before dispatch from the factory.

Q3 How about your delivery time?

Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4 How do you charge the electric vehicle, and are there any notices?

We provide a charger along with the electric car. The charging process will stop automatically once the battery is fully charged.

Q5 How long is the warranty?

The entire electric vehicle is covered by a 12-month warranty.

Q6 Do you accept customizing vehicles according to special requests?

Yes, we customize vehicles based on special requests at a reasonable cost and lead time, provided the customization does not require modification to the chassis.
