| Specifications | TCKC2 | TCKC22 | TCKC4 | TCKC42 | TCKC6 | TCKC62 | TCKC8 | TCKC82 |
|---|---|---|---|---|---|---|---|---|
| Technical Parameters | ||||||||
| Overall Dimension (L*W*H) | 2500*1300*2000 | 2900*1300*2000 | 3200*1300*2000 | 3600*1300*2000 | 4000*1300*2000 | 4400*1300*2000 | 4800*1300*2000 | 5200*1300*2000 |

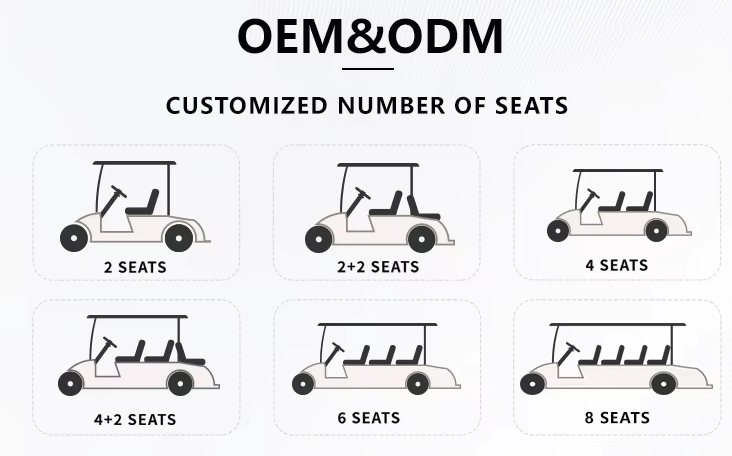

| Passengers Capacity | 2 | 4 | 4 | 6 | 6 | 8 | 8 | 10 |
| Max. Speed (km/h) | 30 or Negotiable | |||||||
| Max. Travelling Range (km) | 80~100 | |||||||
| Slope Climbing Capacity | 30% | |||||||
| Turning Radius (m) | 3.5 | 3.5 | 4.6 | 4.6 | 5.7 | 5.7 | 6.7 | 6.7 |
| Min. Ground Clearance (mm) | 150 | |||||||
| Brake Distance (m) | ≤5m | |||||||
| Wheelbase (mm) | 1700 | 1700 | 2400 | 2400 | 3100 | 3100 | 3850 | 3850 |
| Front/Rear Tread (mm) | Front 900mm / Rear 1000mm | |||||||
| Weight (kg) | 530 | 560 | 600 | 620 | 680 | 710 | 800 | 830 |
| Electric System | ||||||||
| Motor Power (kw) | 3.5/4/5kw or customized | |||||||
| Electric Controller | Enpower Fully Intelligent Controller | |||||||
| Battery Type | 6V 200AH / 8V 150AH / 12V 100AH selectable | |||||||
| Charger | Intelligent high-frequency car charger | |||||||
| Charging Time (h) | 8~10 | |||||||
| Charging Input Voltage | 220V/110V | |||||||
| Chassis System | ||||||||
| Suspension | Front Torsion Beam Suspension + Integral rear axle high strength steel plate spring cartridge or customized | |||||||
| Brake System | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized | |||||||
| Steering | "Rack & Pinion" Steering | |||||||
| Motion Transfer System | Continuously variable transmission | |||||||
| Drive Mode | Rear drive | |||||||
| Exterior Specs | ||||||||
| Dashboard | Multi-function smart display (Bluetooth, radio, movie, etc.) | |||||||
| Light | LED combined headlights, turn signals, combined rear taillights, brake lights and electric | |||||||

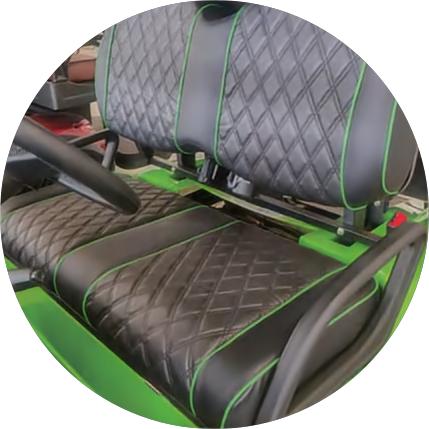

| Seat | Joint row seats (leather fabric + high resilience PU seats) | |||||||
| Body Material | Steel frame + injection shell / ABS engineering plastic molded parts | |||||||
| Wheel Options | 10/12/14 inch iron/aluminum wheels options | |||||||
| Tires | Road and off-road tire options | |||||||

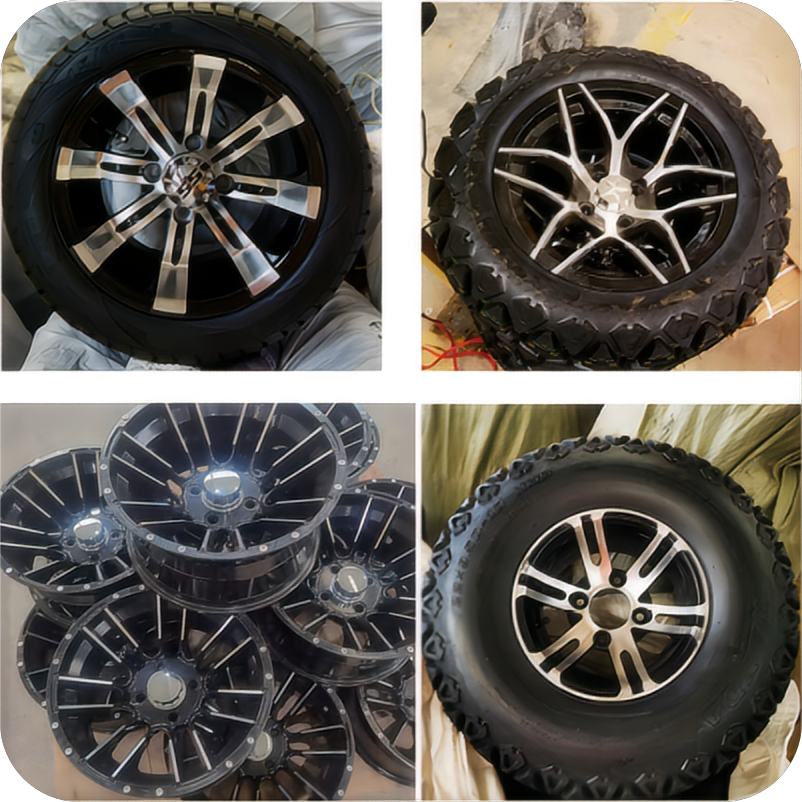

Customizable Wheels

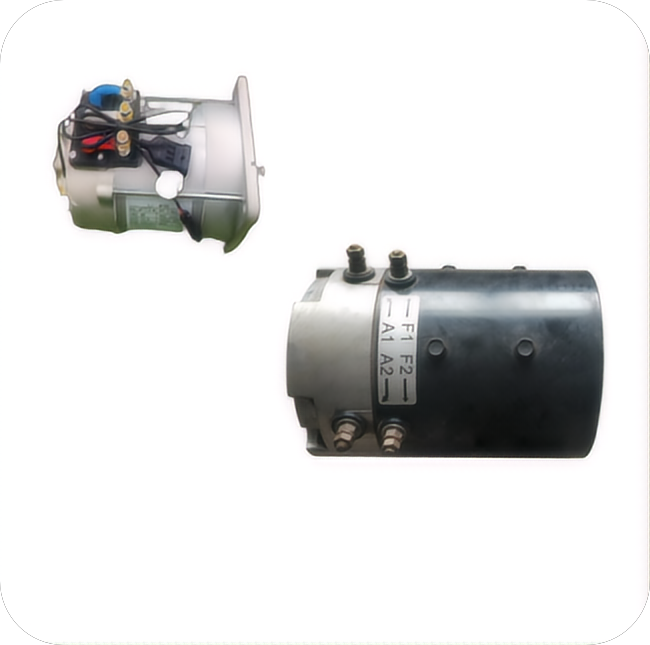

Customizable Motor

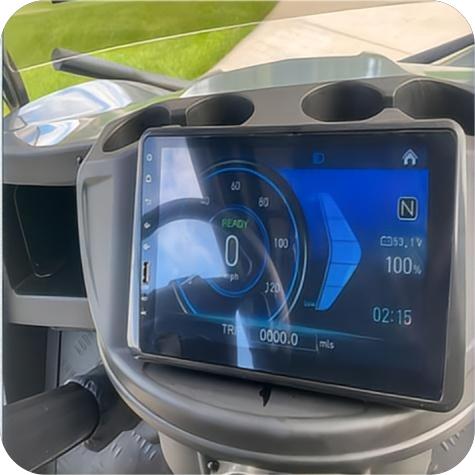

Customizable Dashboard

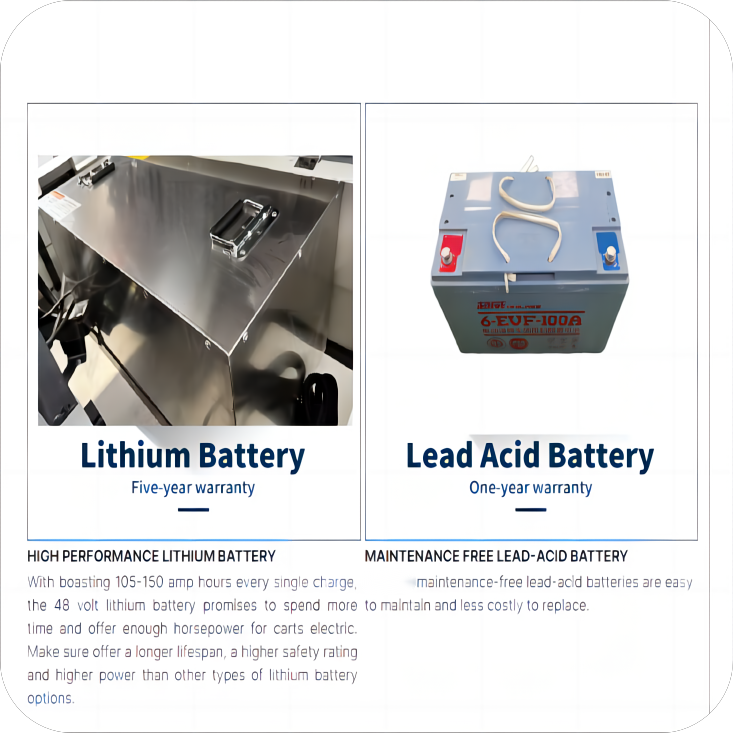

Customizable Battery

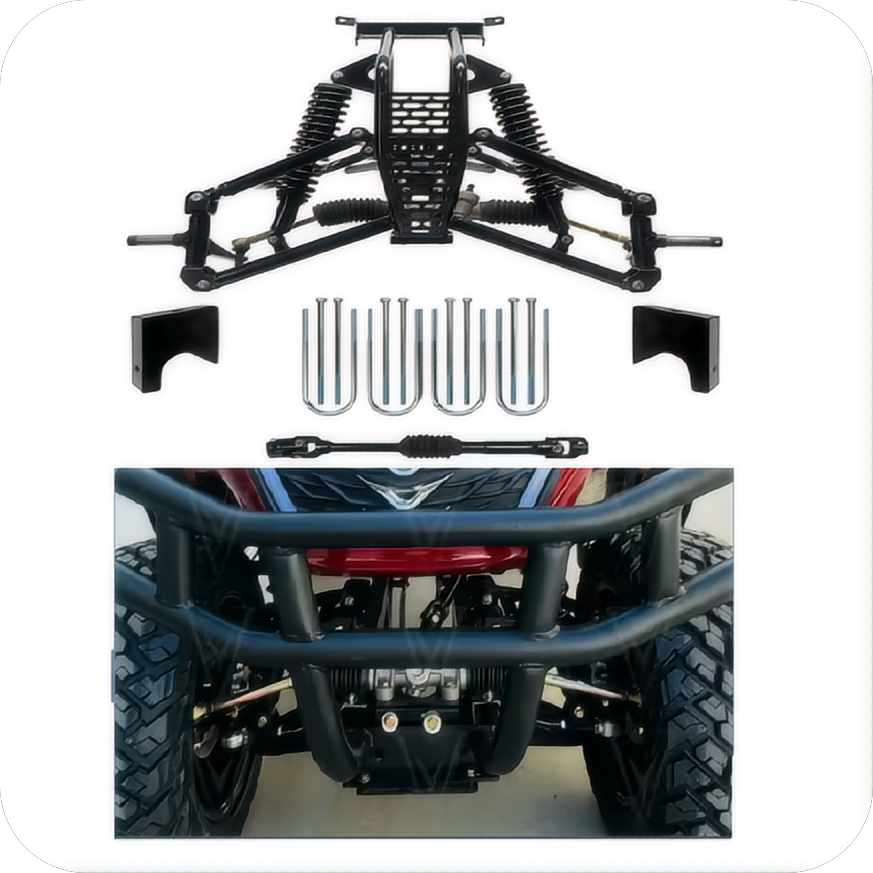

Optional Suspension
