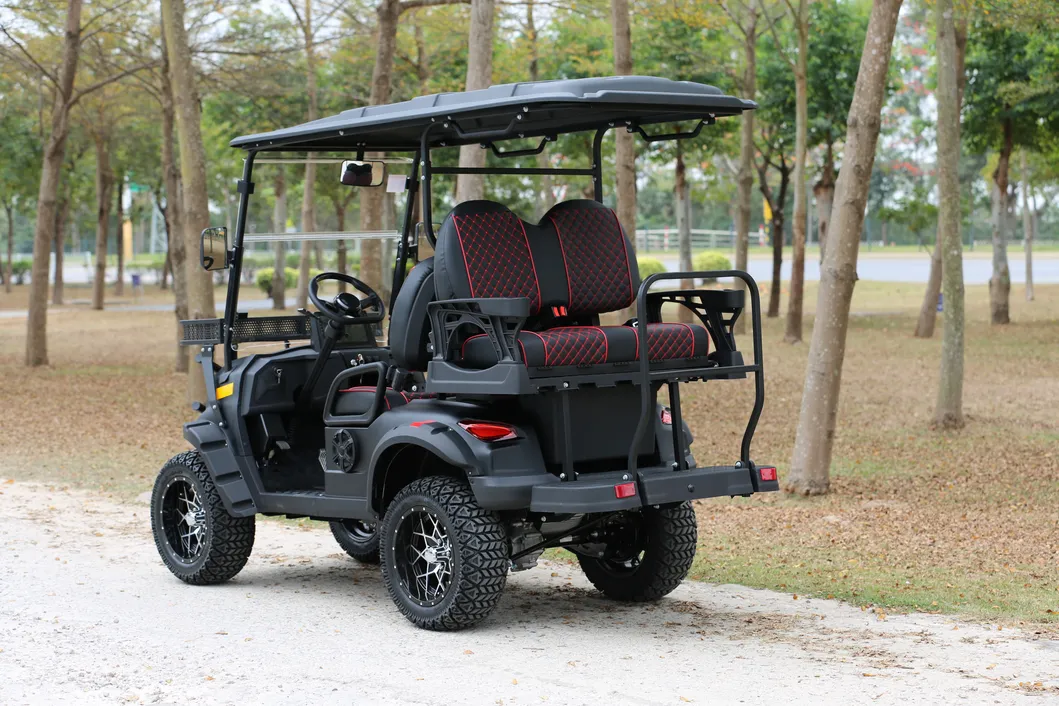

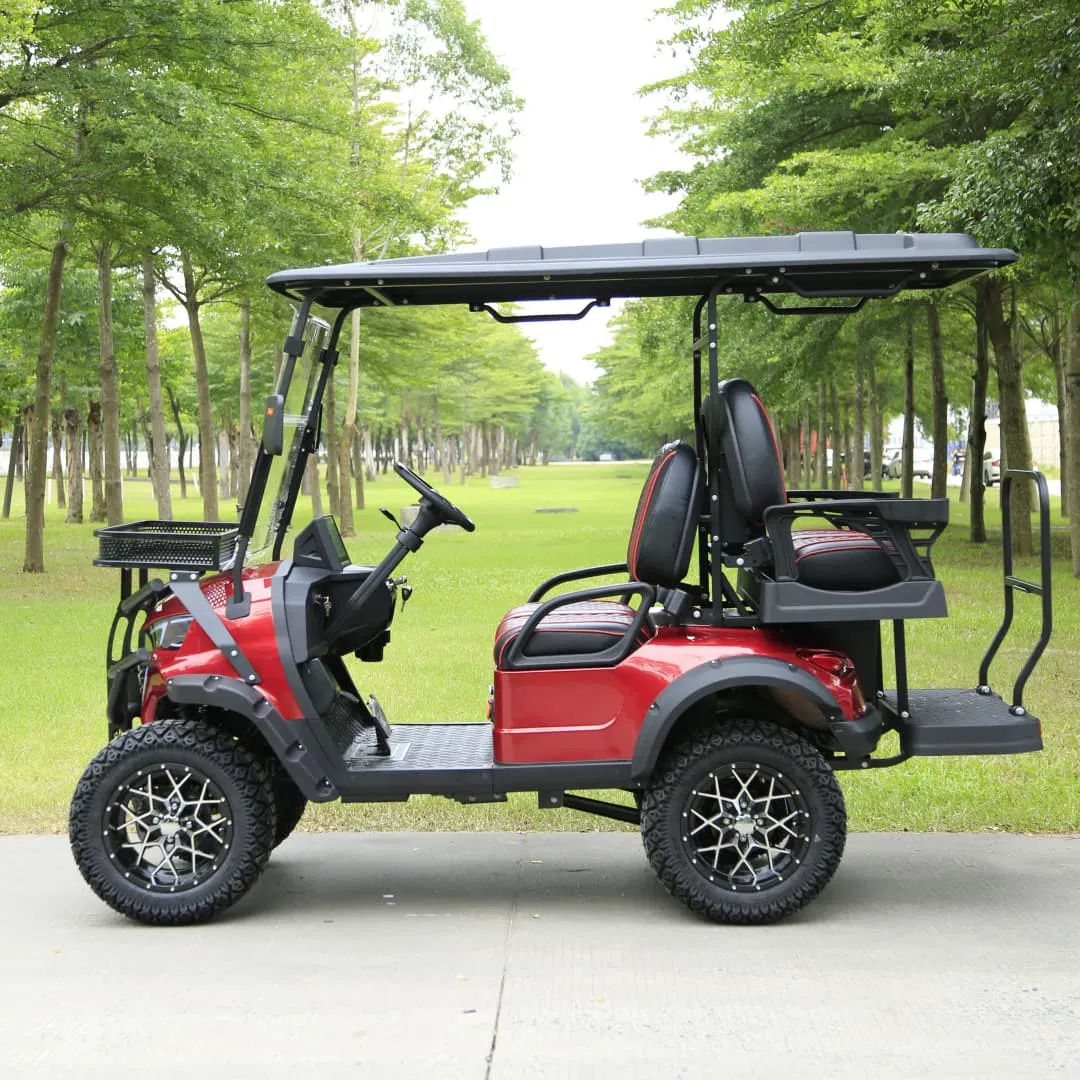

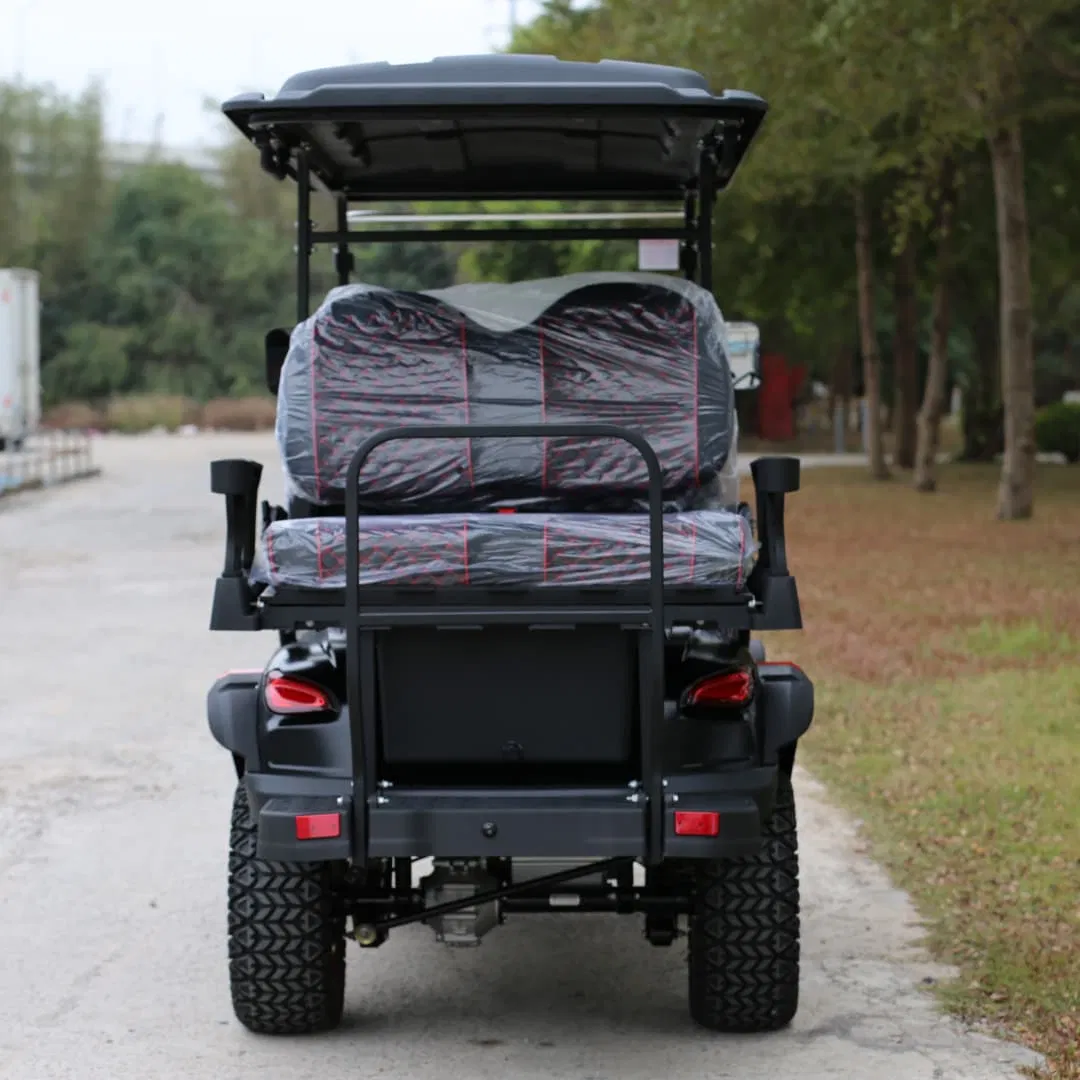

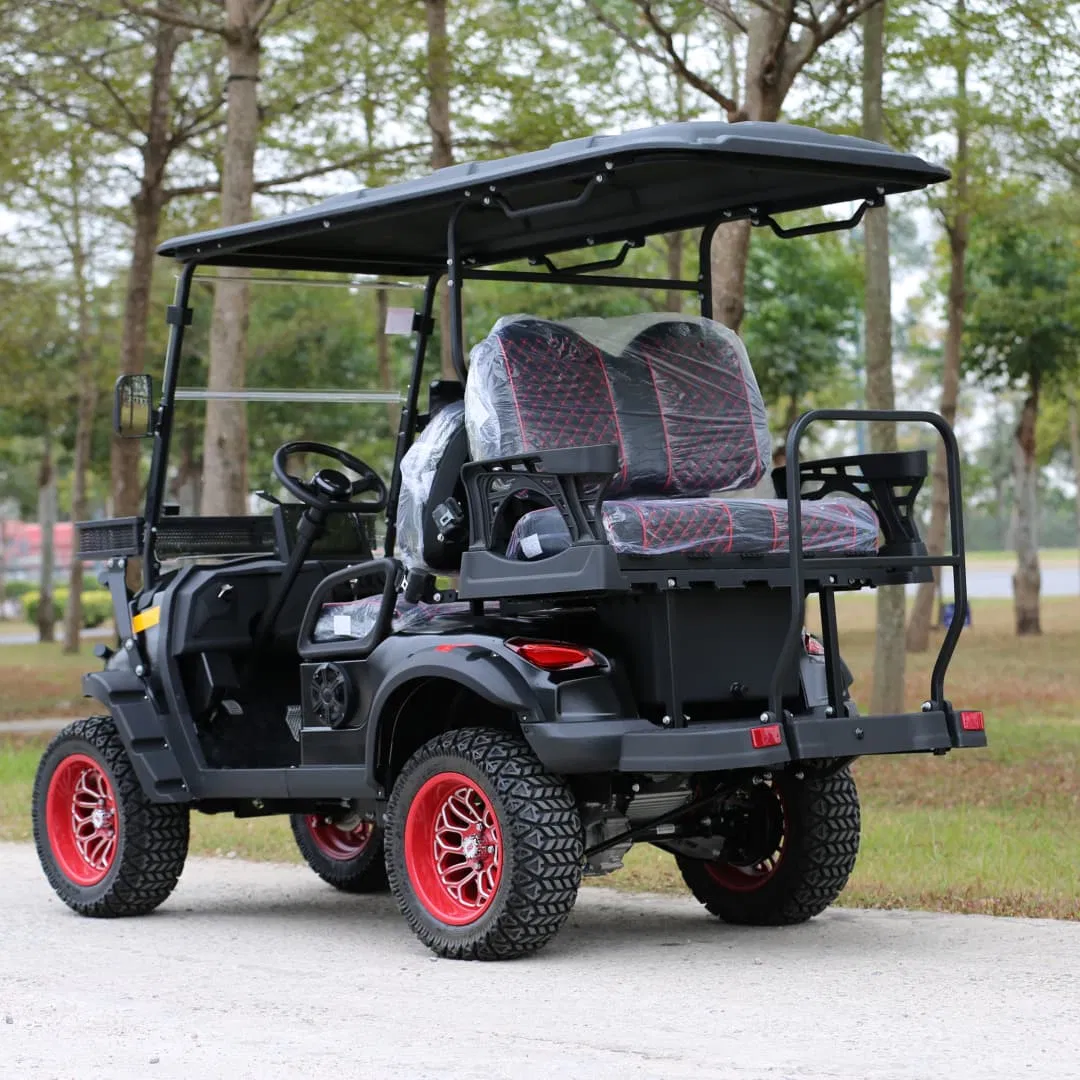

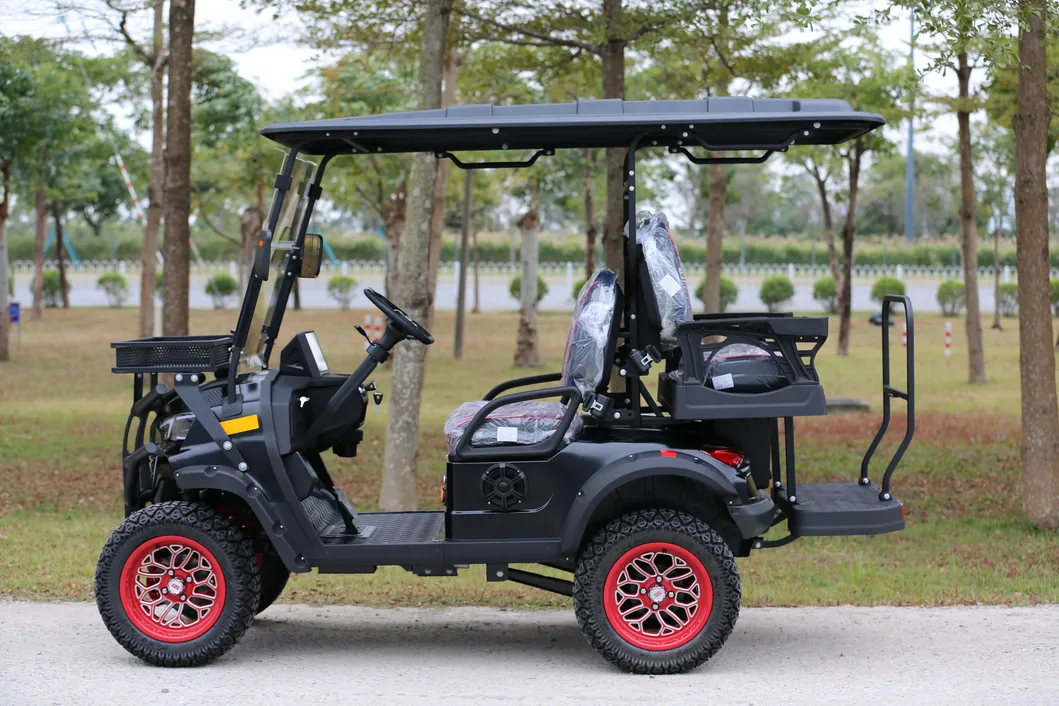

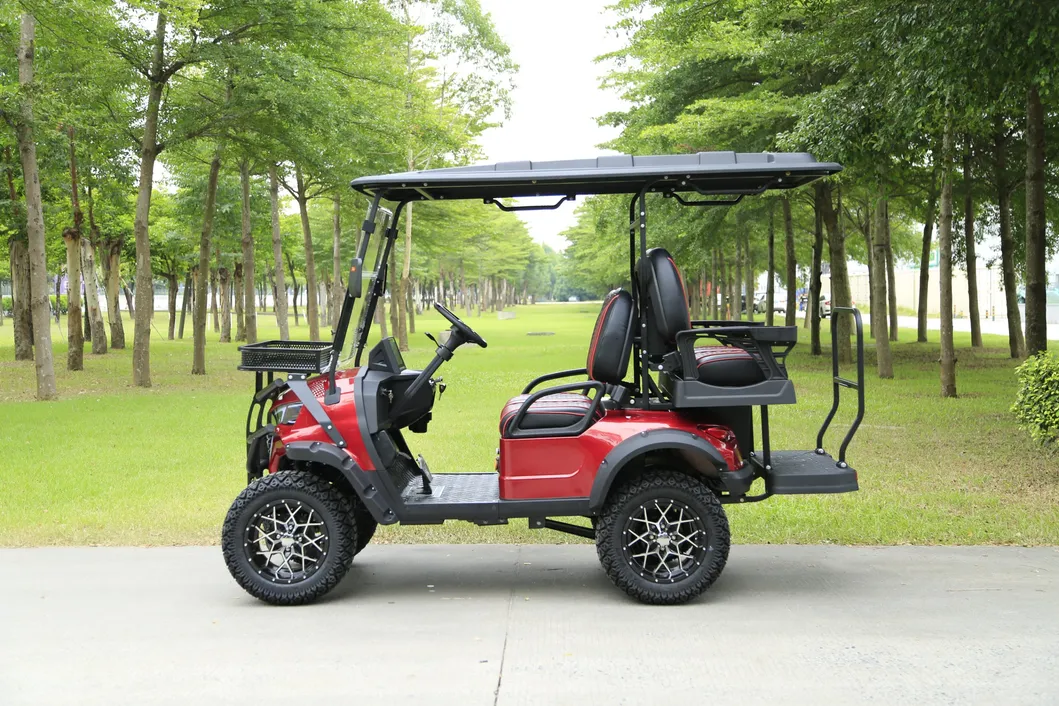

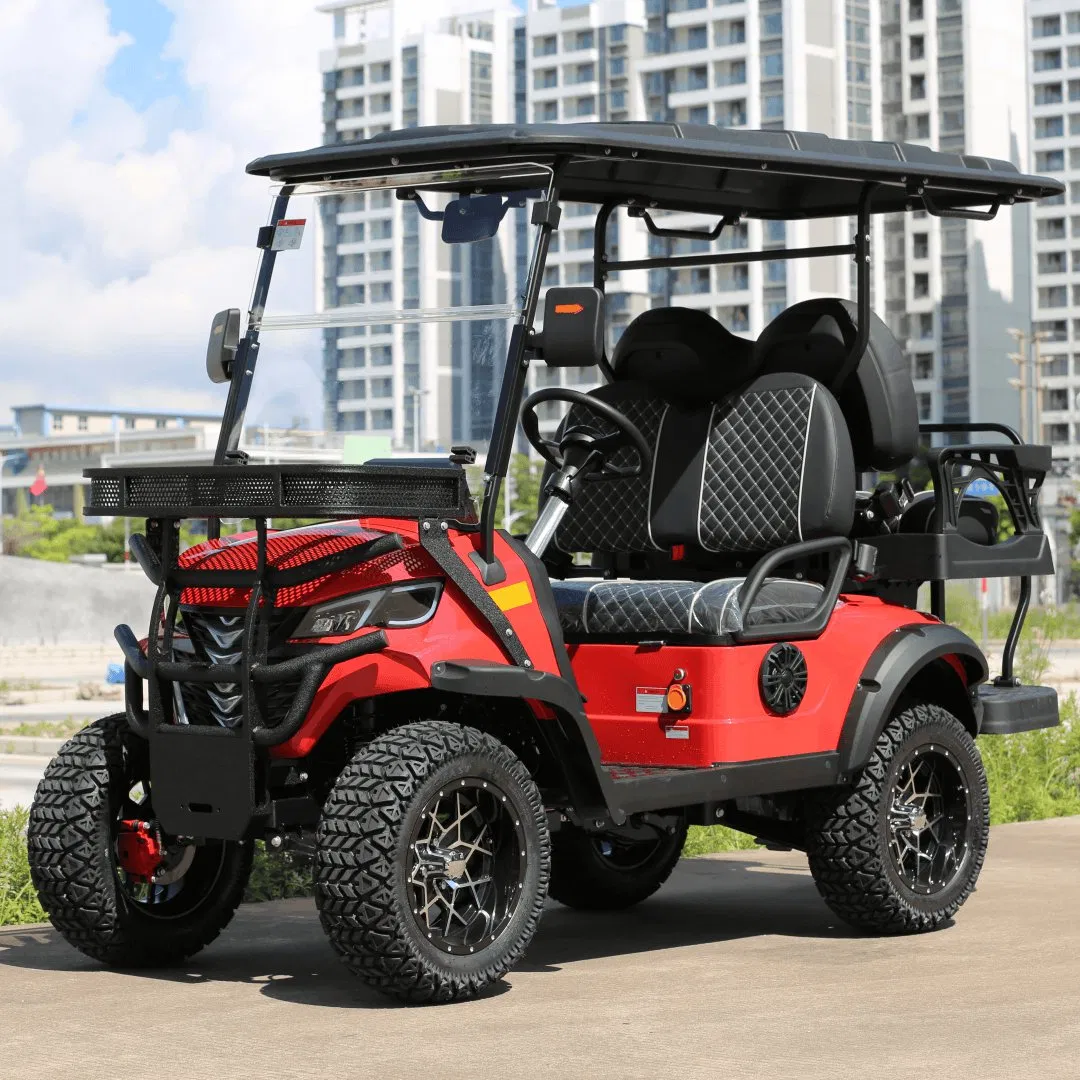

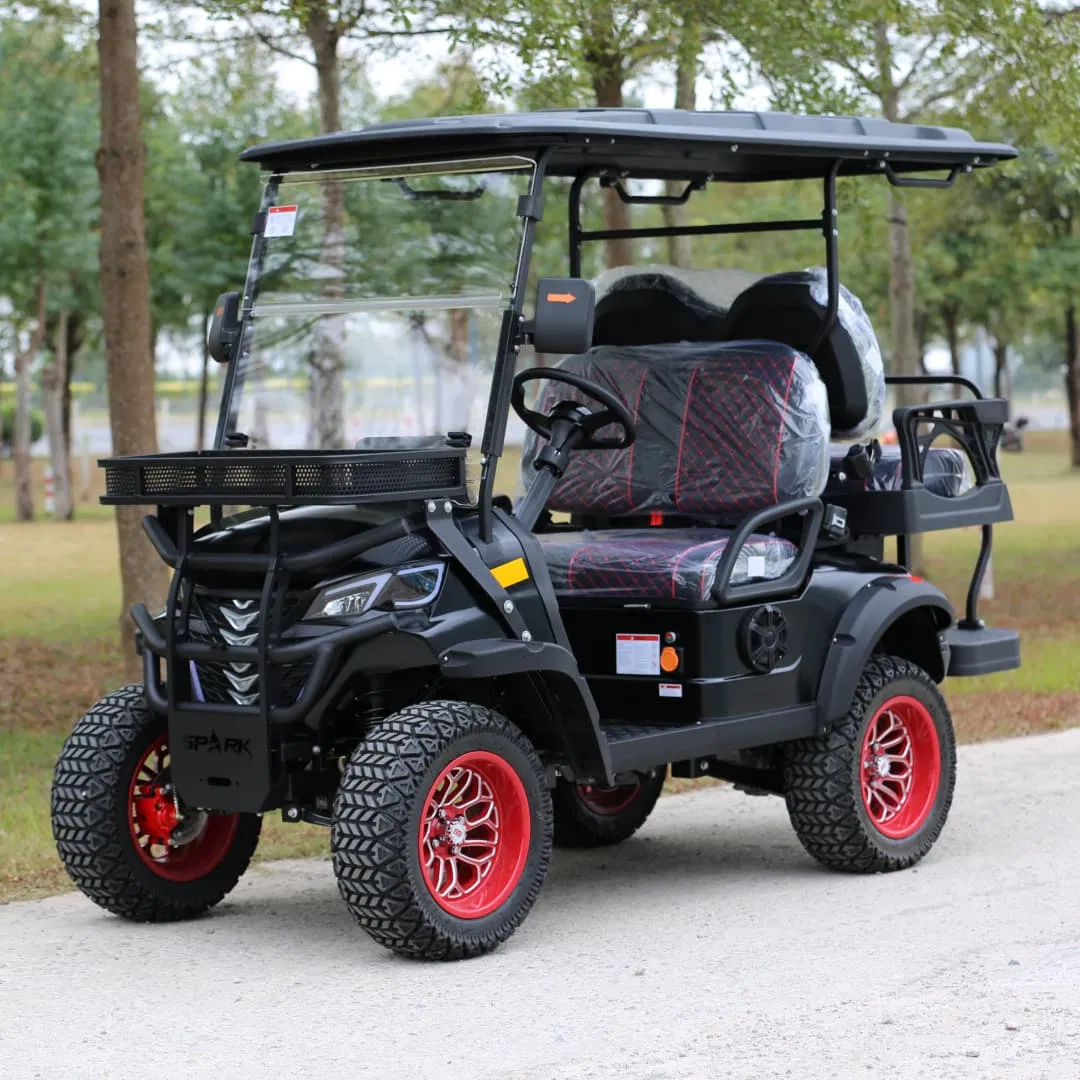

New Model Independent Suspension Comfort Driving Electric Golf Cart with Stable Quality
Electric Golf Car {Hunting Car} 2 +2 Seats FHA2+2
| Capacity & Shipping Load | |
|---|---|
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 UNIT |
| Qty/40'HQ (Assembled) | 3 UNITS |

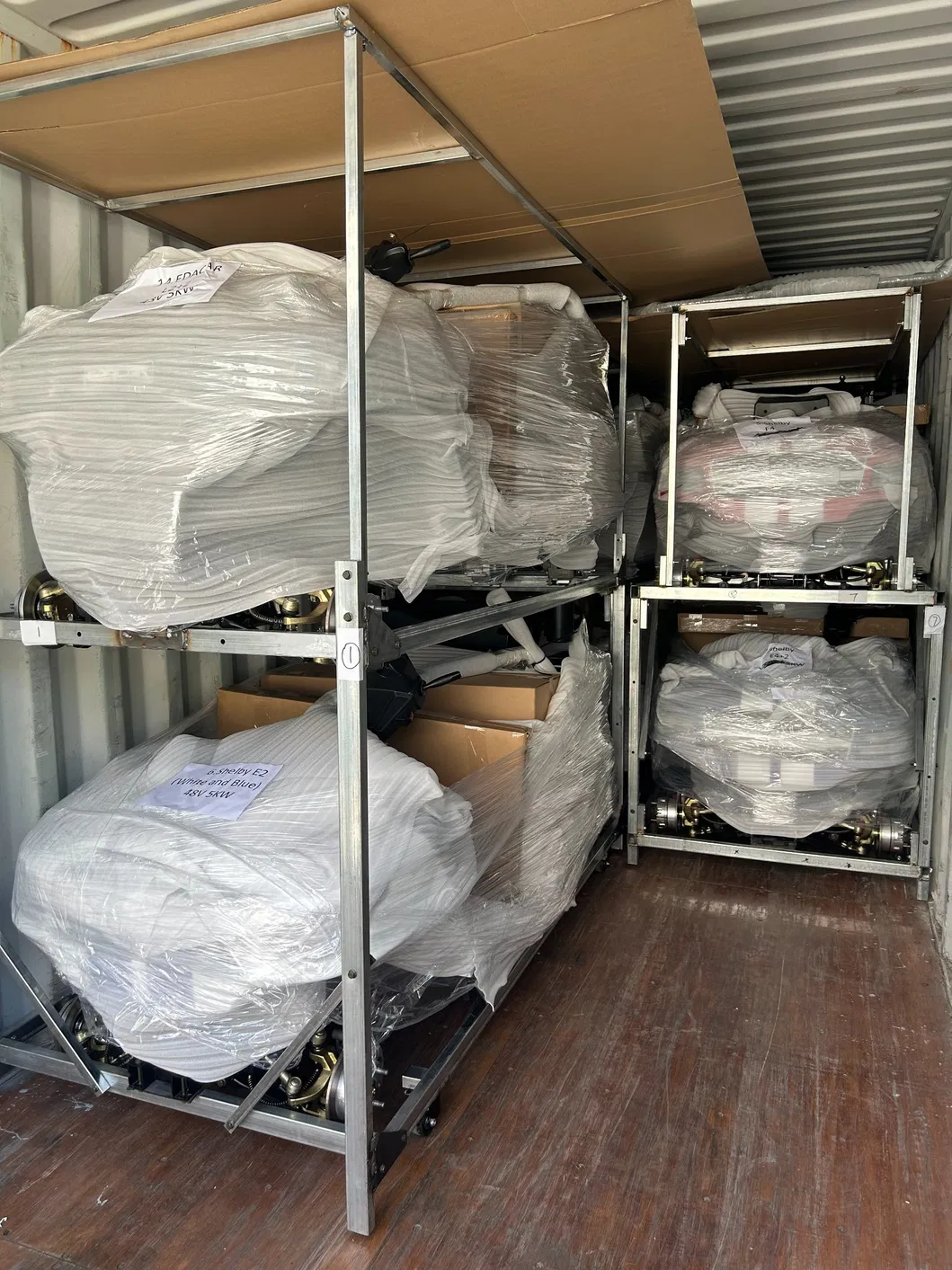

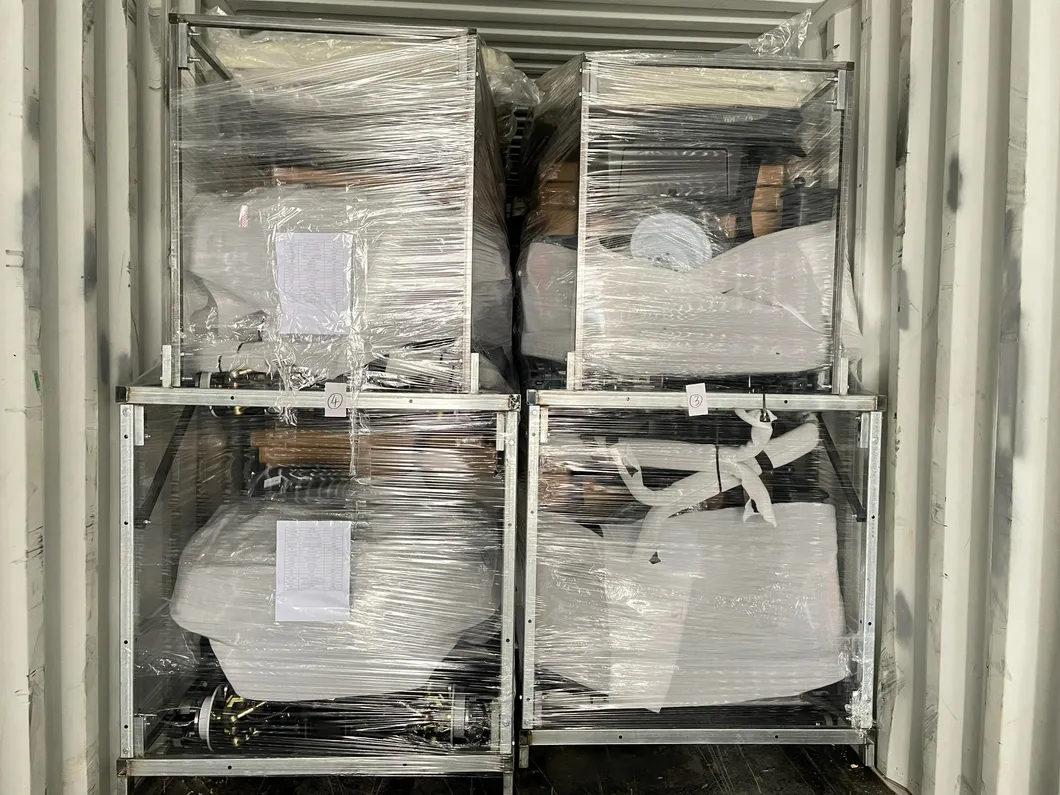

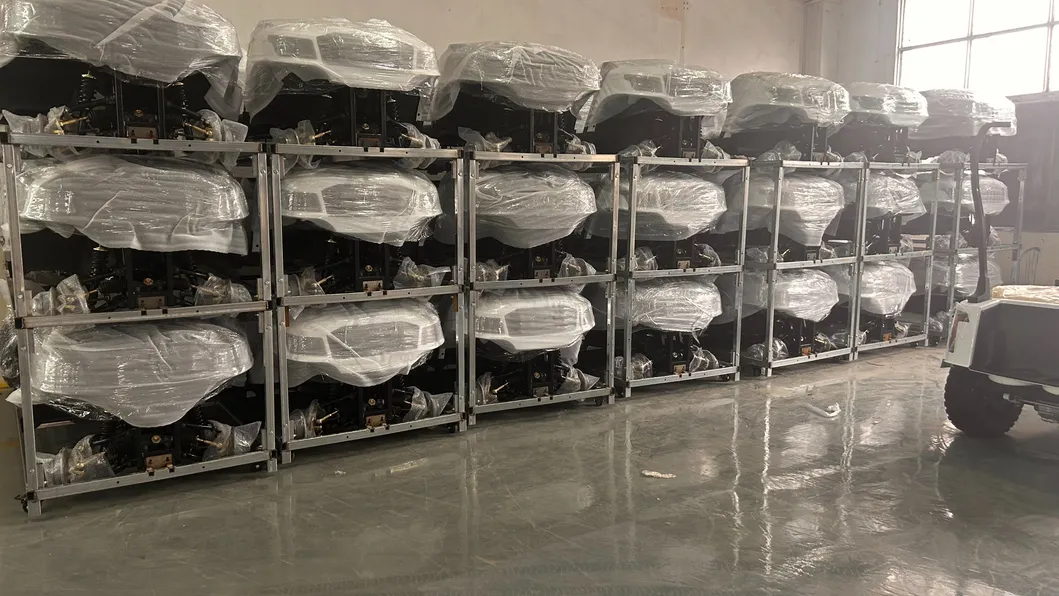

| Qty/20'GP (Disassembled) | 7 UNITS |
| Qty/40'HQ (Disassembled) | 18 UNITS |
| Passenger capacity | 2+2 seats |
| Max. Speed | 40km/h |
| Range (loaded) | 80km (level road) |
| Climbing Ability | 25% |
| Braking Distance | < 3.5m |
| Min. Turning Radius | 3m |
| Min. Clearance | 170mm |
| Recharge time | 8~10h |
| L×W×H | 3005*1350*2080mm |
| F/R Tread | 965mm//968mm |
| Axle Distance | 1670mm |
| Curb Weight | <=575kg |
| Max. loading | 340kg |
| Motor | 48V/5KW AC motor |
| Controller | 48V |
| Battery | Maintenance-free battery 48V |
| Body & Roof | The front cover, seat bucket, body and rear bumper cover parts are injection molded with engineering PP special materials for aging resistance and ultraviolet protection + Grsted black square pipe frame + PP material injection molding roof |
| Windshield | Foldable windshield |

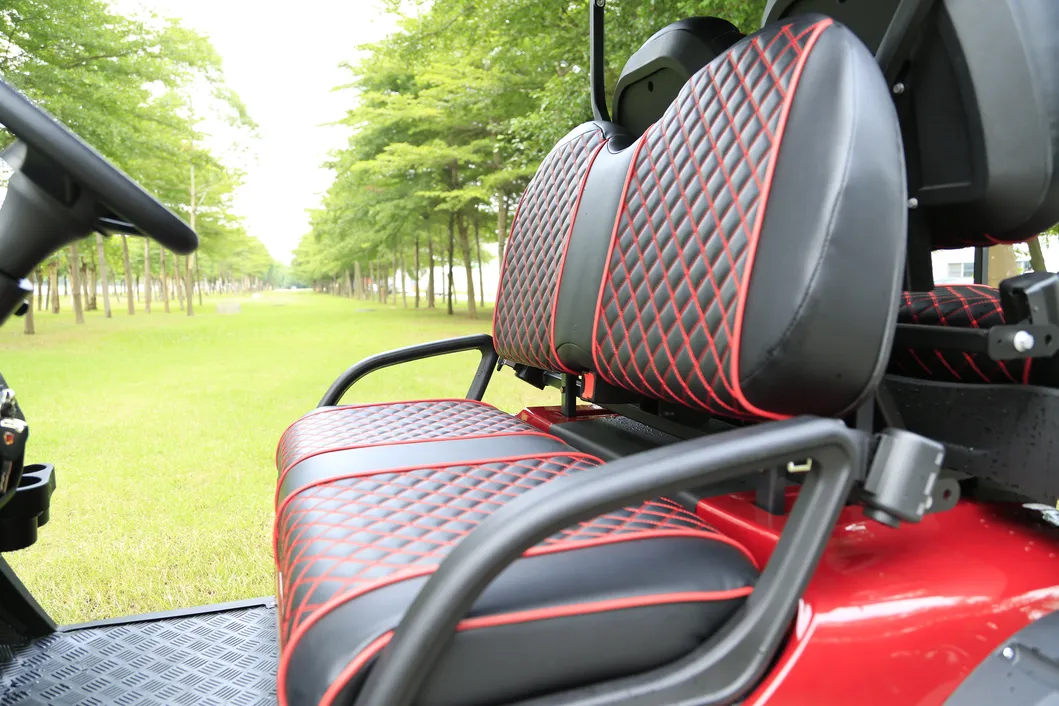

| Seats | PU leather + special sponge modeling sofa |
| Rear view mirror | Left and right mirrors |
| Bumper | Front Bumper |
| Tire | 14-inch aluminum alloy wheels + 14-inch off-road tires |
| Chassis | Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying |
| Front Suspension | McPherson independent front suspension + spiral spring + damped hydraulic shock absorber. |
| Rear suspension | Integral rear axle, speed ratio 16:1 spiral spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar |

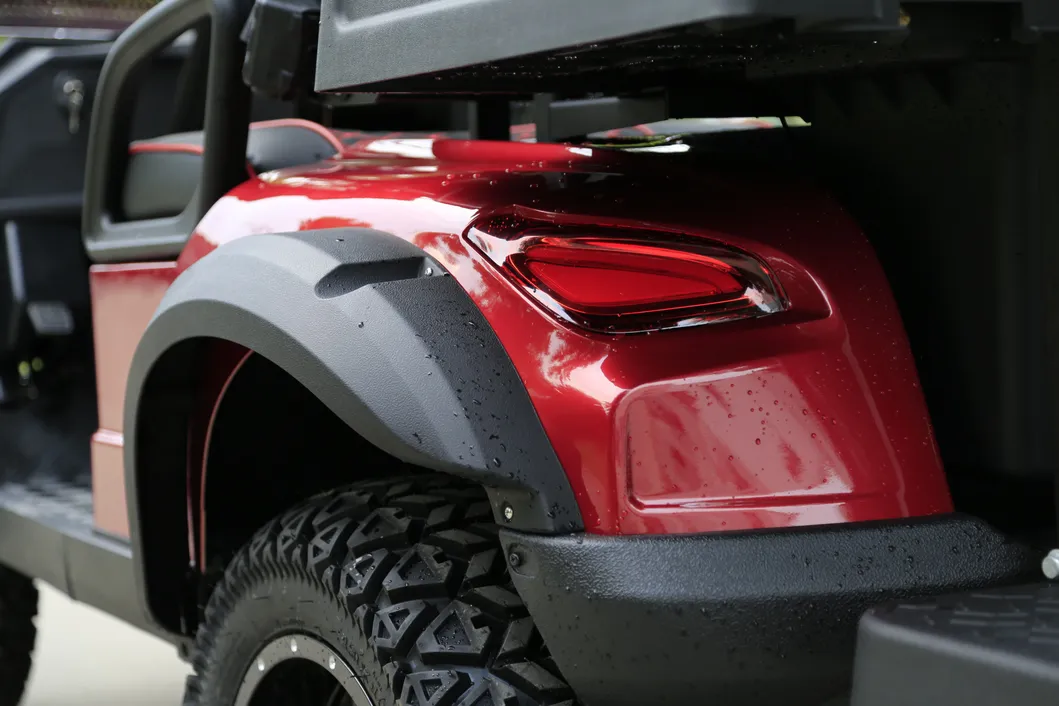

| Lighting system | LED front combination (near light, high beam, turn signal, daily light) LED rear taillights (brake lights, running lights, turn signal lights); snail horn, reversing buzzer. |
| Sound system | Speaker |
| Brake system | 220 large size hydraulic drum brake rear axle: four wheel hydraulic brake, front disc rear drum + foot parking |
| Steering system | Double gear rack steering system, automatic clearance compensation function |
| Charger | Output:48V, Input AC 220V/50HZ ~ 60HZ |

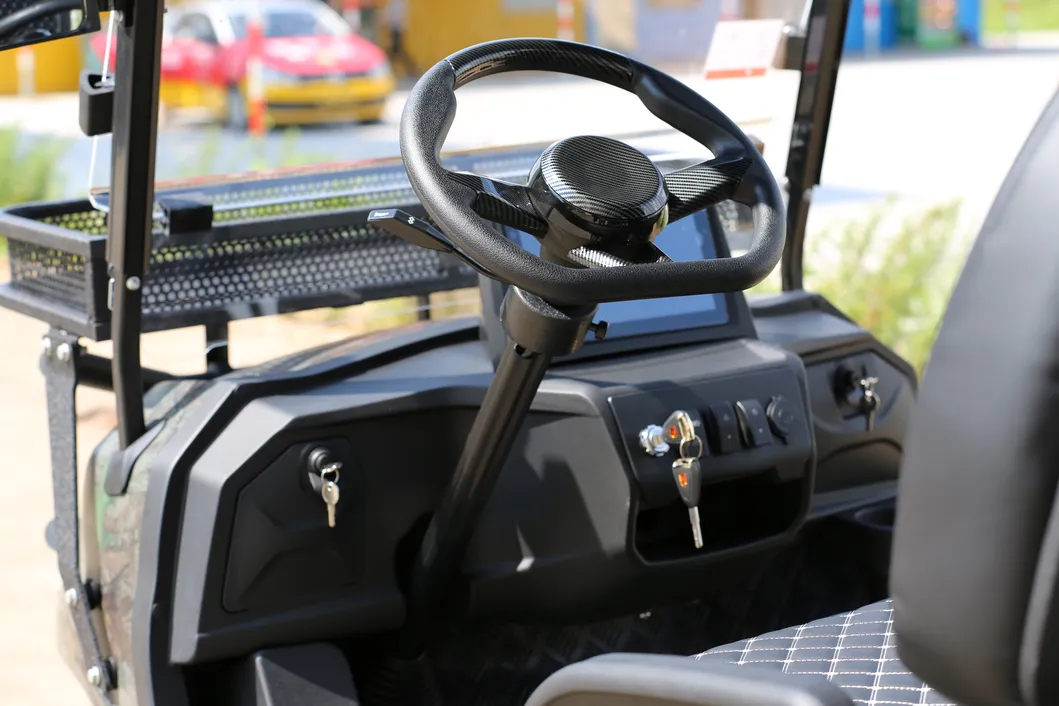

| Dashboard | Injection molding instrument panel, ignition switch, direction selection switch, high beam switch, horn headlight combination switch, water cup holder; USB + Type-c charging / double USB charging. |
| Display | 10-inch large screen waterproof advanced multimedia combination LCD screen, with vehicle status information |
| Seat belt | two-point seat belt |
| Roof | Black |
| Optional color | White, Metallic silver, Metallic black, Blue, Bright cherry-red, Green, Red. |
