| Electrical System | Controller | 48V | ||
| Battery | Lead-Acid & Lithium | |||
| Motor | 5KW(AC) Mahler motor | |||
| Charger | On board charger, 48V/25A | |||
| Body And Chassis Configuration | Front Windshield | Injection Molding | ||
| Roof | Plastic suction art & injection molding | |||
| Seat | Formed anti-skid floor leather | |||
| Floor | Injection molding of PP for automobile | |||
| Body | Injection molding | |||
| Rearview Mirror | Manually adjustable, foldable rearview mirrors left and right | |||
| Lighting and Signals |

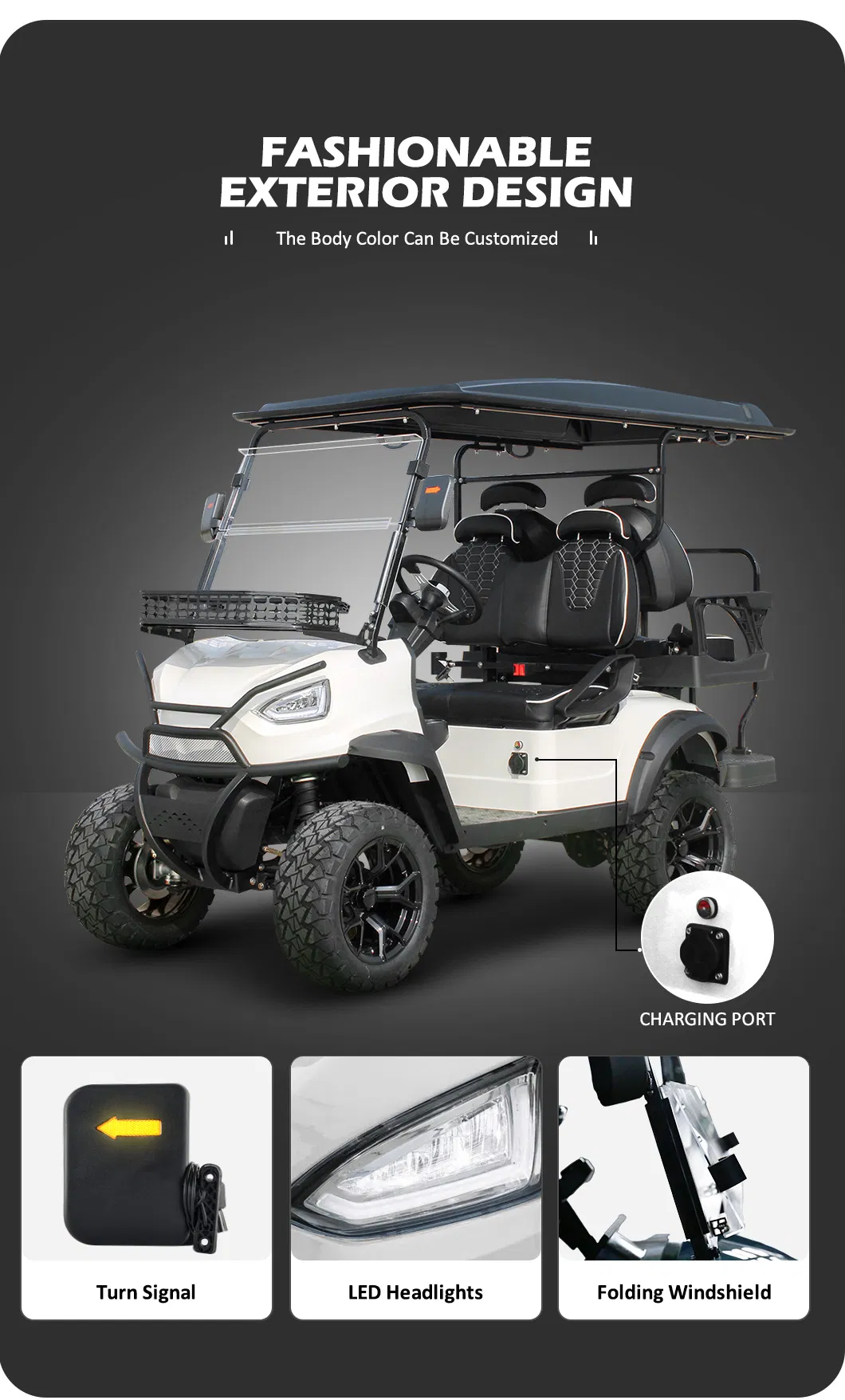

LED headlamp : ( low beam , high beam , steering light, clearance lamps ) LED tail lamp : ( brake light, position light, steering light ) snail horn, reversing buzzer |
|||

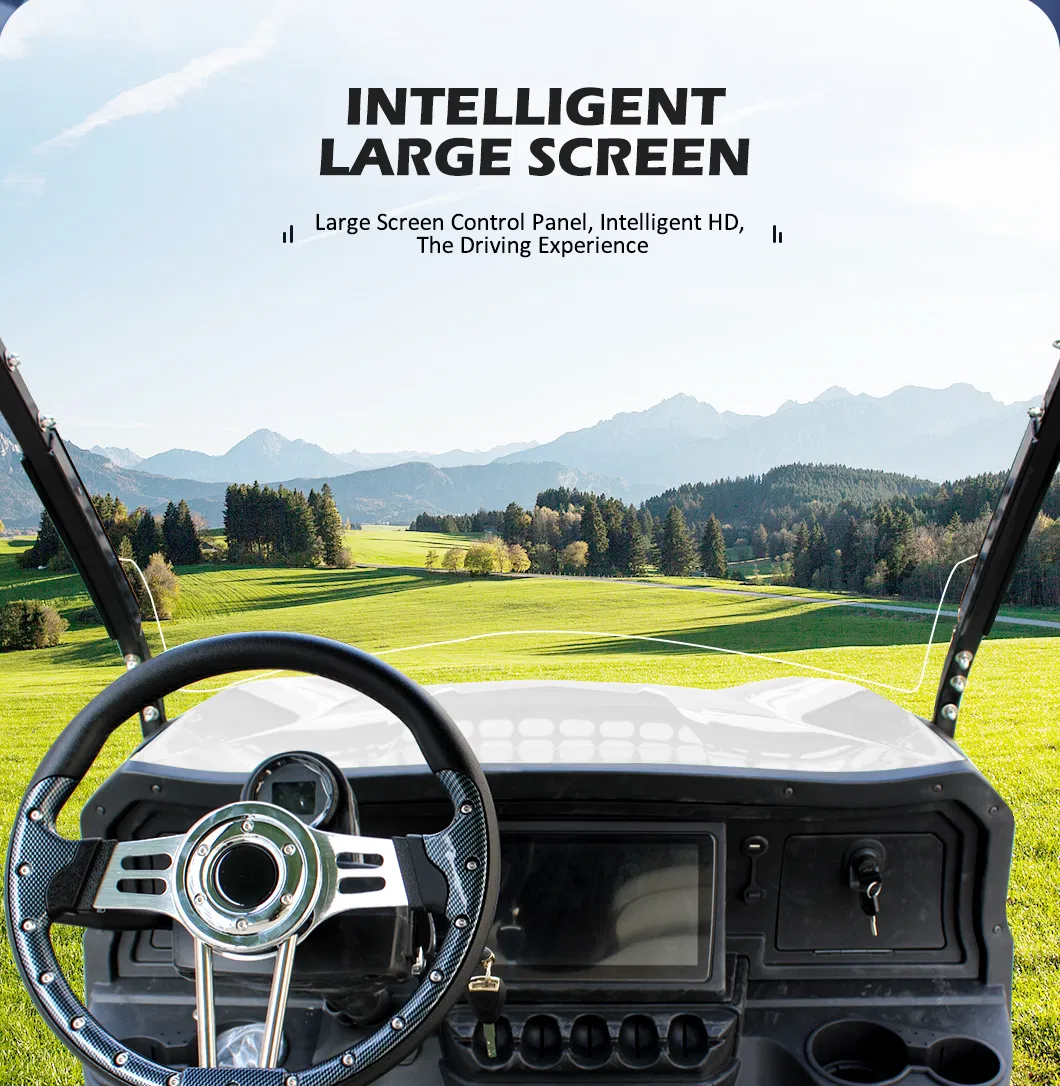

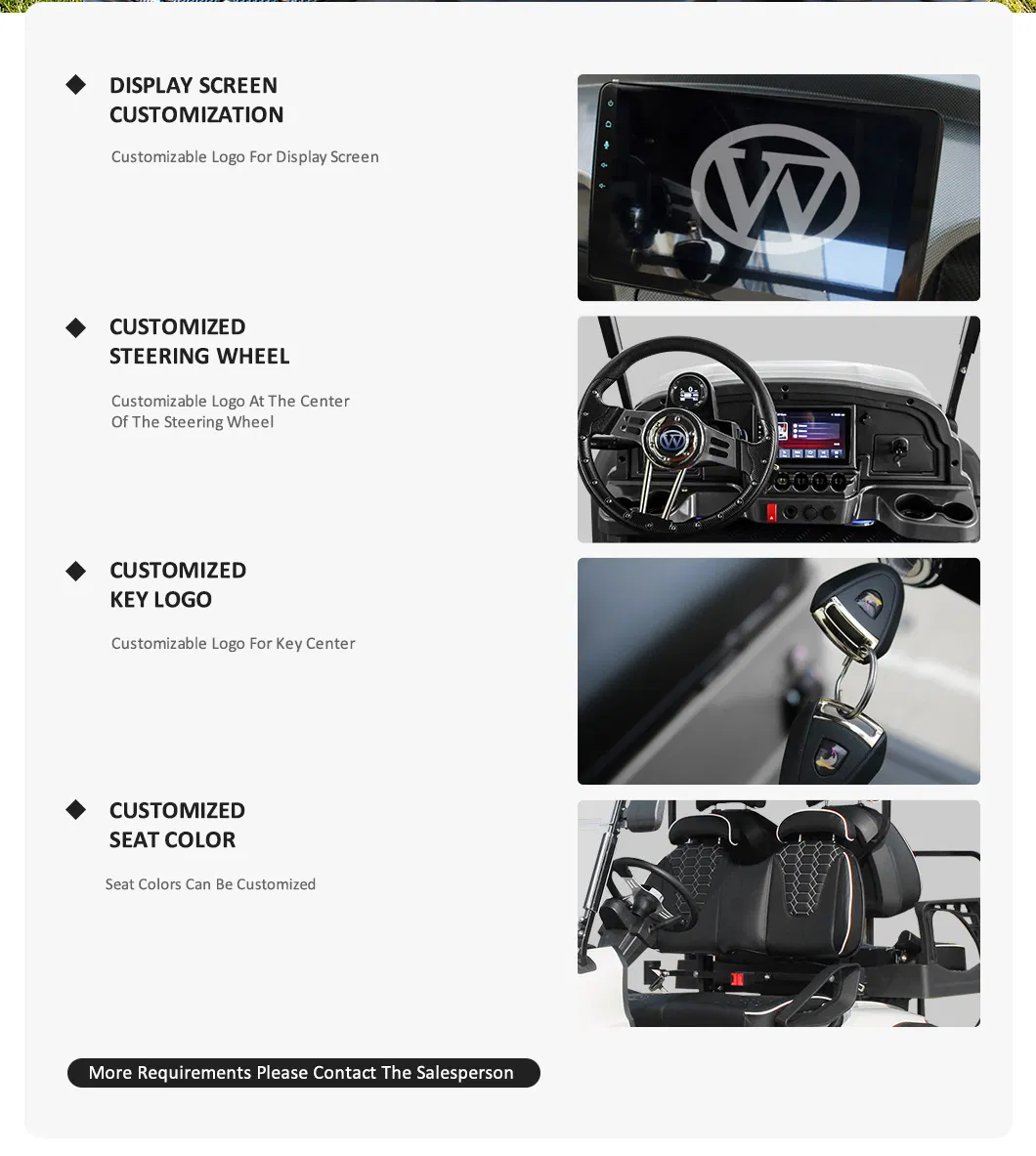

| Instrument Platform | Injection molding instrument, liquid crystal combination instrument, lock switch, single arm combination switch, gear switch, cup seat, 12V power supply | |||
| Direction System | Bidirectional rack and pinion steering system | |||
| Braking Systems | 4 wheel disc brake | |||
| Parking | Electromagnetic parking | |||

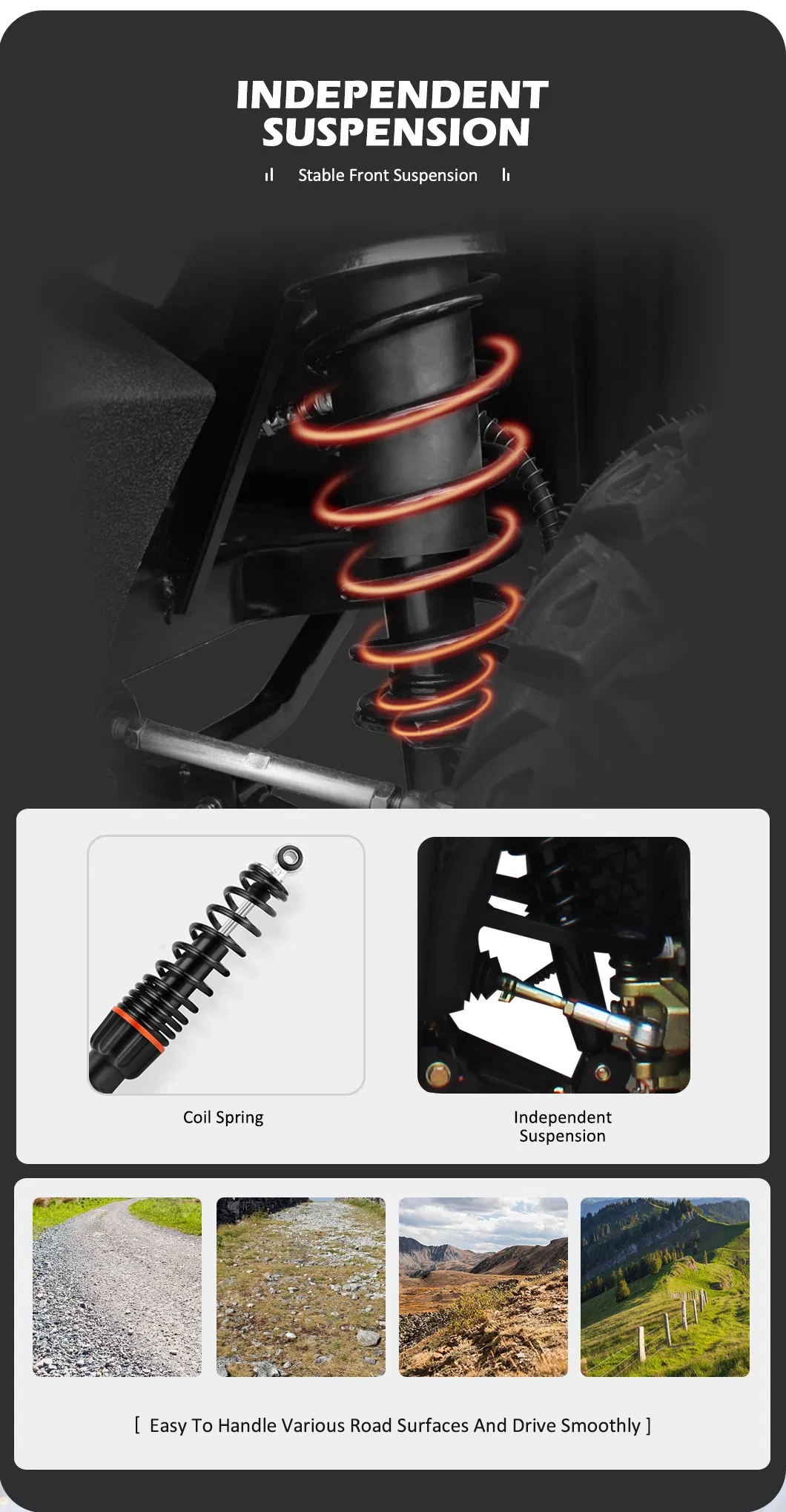

| Front Suspension System | Double-arm independent suspension | |||
| Rear Suspension System | Trailing arm | |||
| Tire Size | 12/14 inch | |||

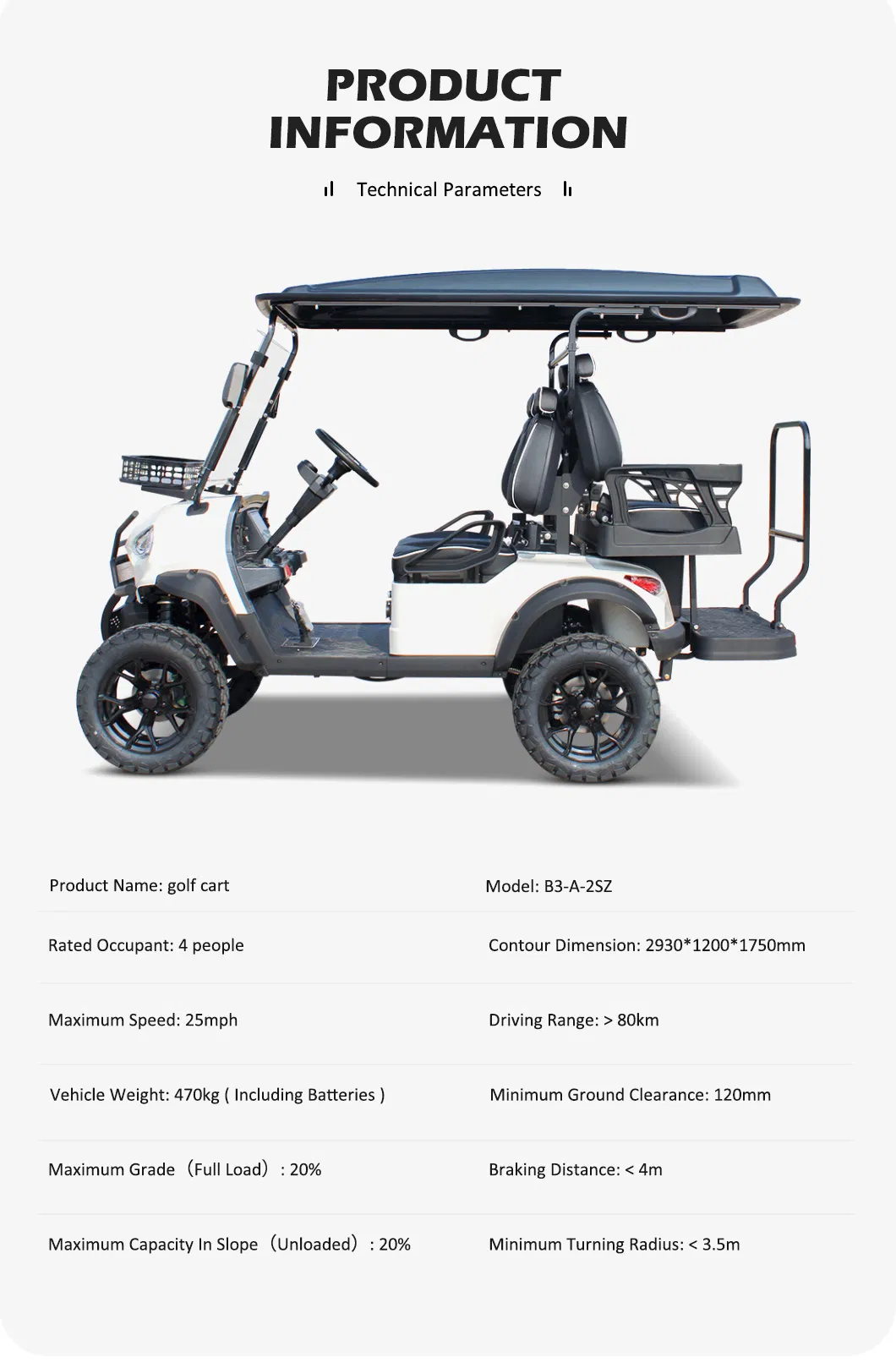

| Technical Parameter | Contour Dimension(mm) | 2930*1200*1750 | Vehicle Weight(kg) | 470(including batteries) |
| Passenger Capacity | 4 | Maximum Capacity In Slope(unloaded) | 20% | |
| Maximum Speed(mph) | 25 | Minimum Turning Radius(M) | <3.5 | |
| Driving Range(km) | >60 | Minimum Ground Clearance(mm) | 200 | |
| Maximum Grade(full load) | 15% | Braking Distance(M) | <4 | |
