Gel Battery 12V Storage Power Supply Golf Cart Battery UPS System

Basic Info

Model NO.

DJW

Nominal Voltage

12V

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Rechargeable

Chargeable

Standard

IEC60896, GB/T19638, Yd/T799, Dl/T637

Design Floating Life

12 Years

Certification

CE, Tlc

Self Discharge

<3%

Transport Package

Plywooden Box

Specification

330*173*220mm

Origin

China

HS Code

85072000

Production Capacity

10000/Month

Product Description

Gel Battery 12V Storage Power Supply Golf Cart Battery UPS System

Our battery with certifications of IEC, VdS, CE, POCC, ISO/IATF16949 and more, widely used in the areas of:

Wind / solar energy
Uninterruptable Power Supply (UPS)
Electric Power System (EPS)
Emergency light
Emergency backup power supply
Auto control system
Tele-communication central station (wired or cellular)
Power system communication

Key Features

Using oxygen recombination technology: maintenance-free
PbCaSn alloy for plate grids: less gassing, less self-discharging
High quality AGM separator: extend cycle life and prevent micro short circuit
ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
High purity raw material: ensure low self discharge rate
Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity

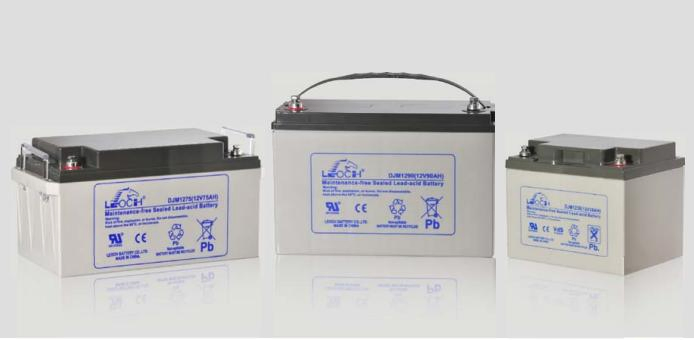

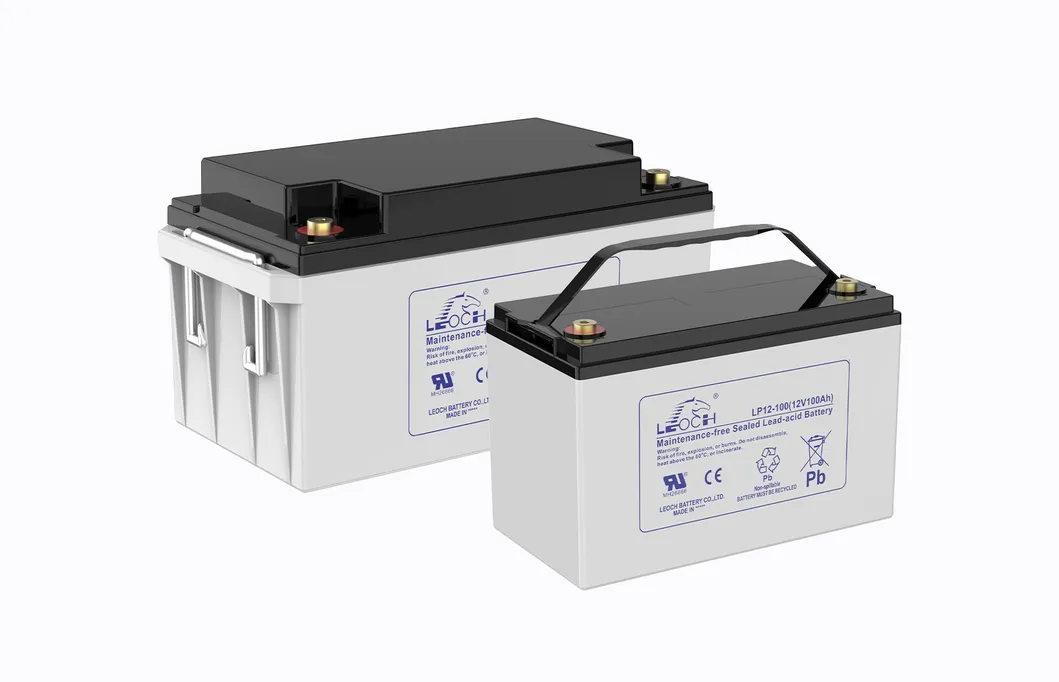

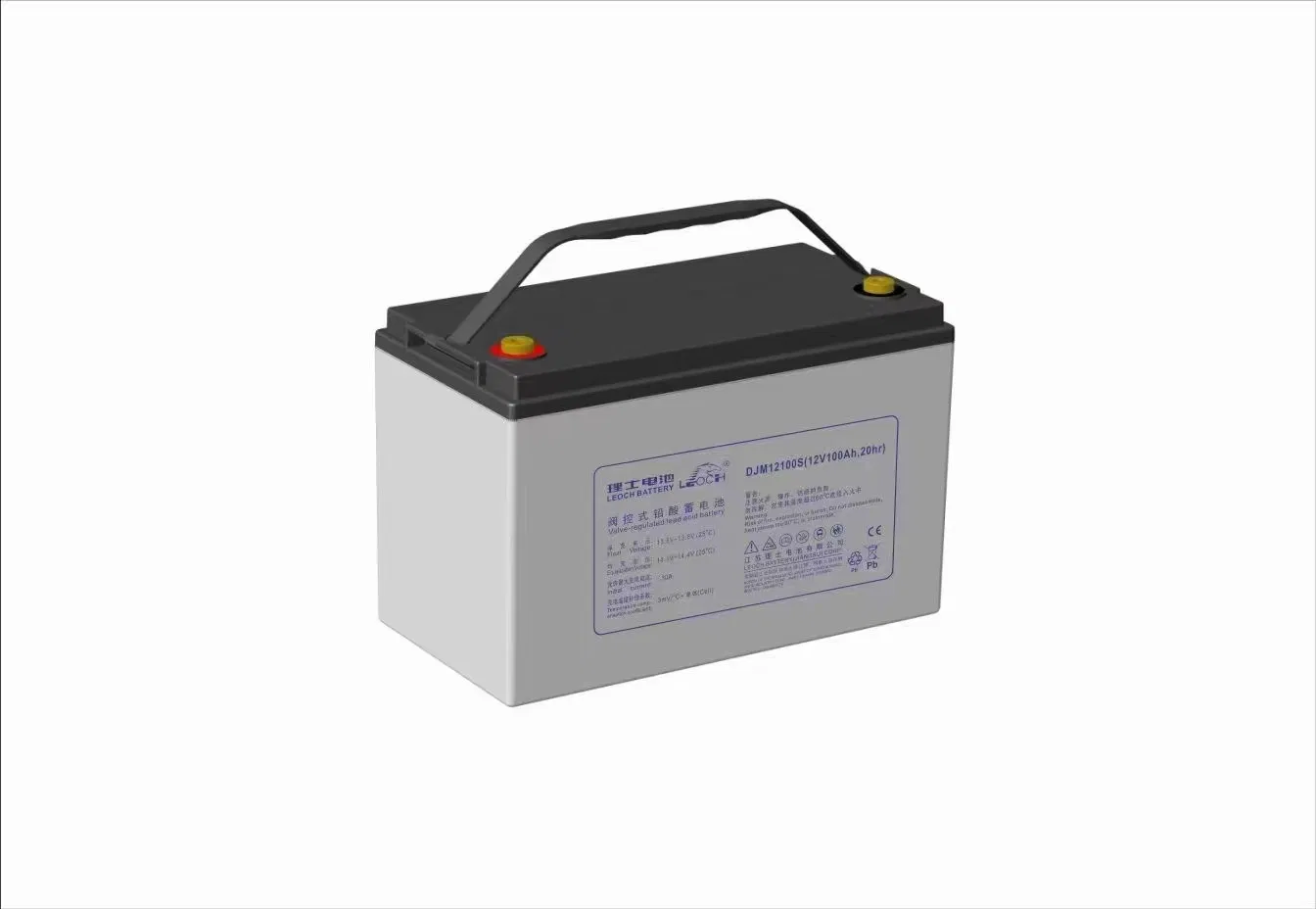

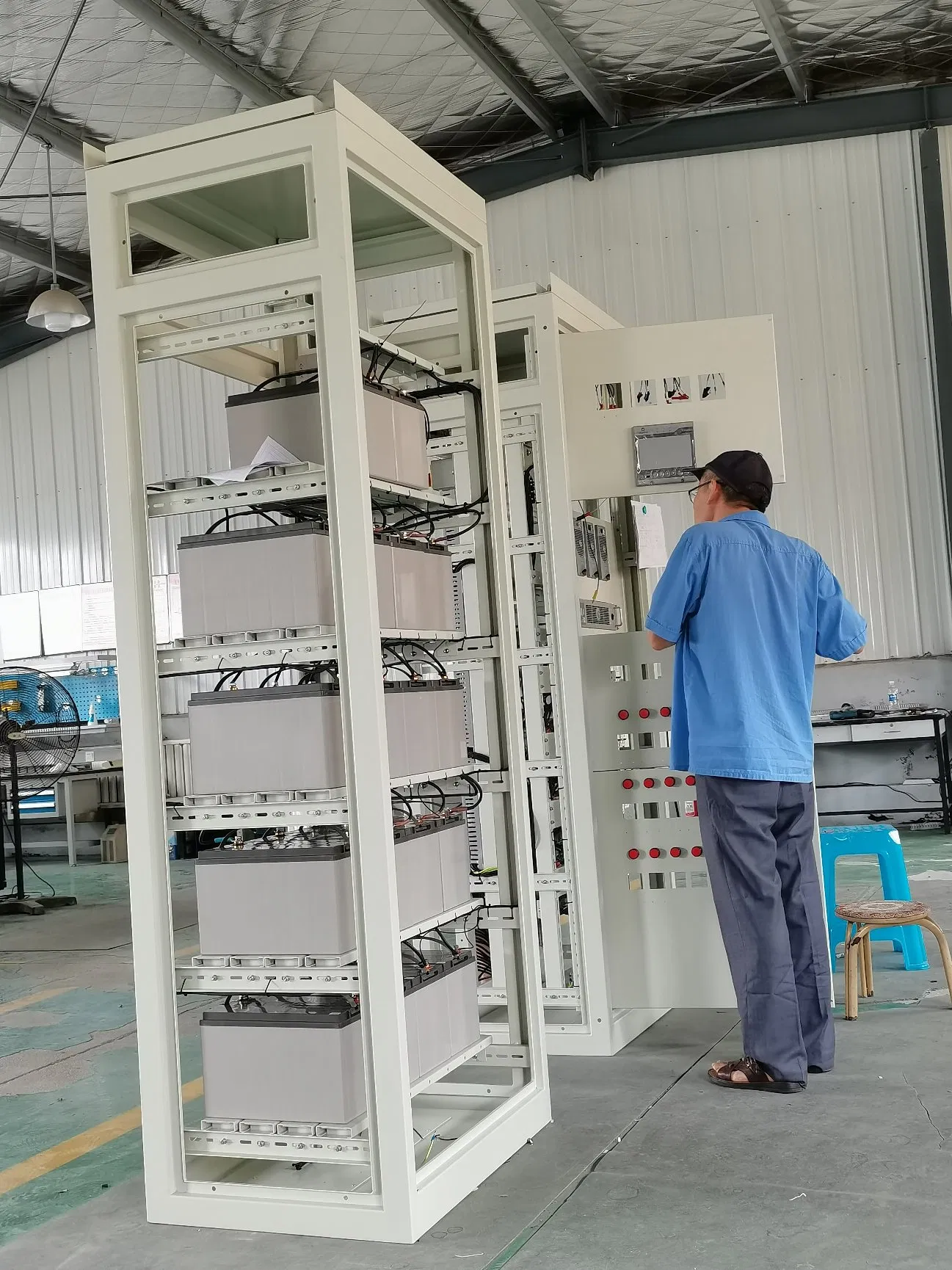

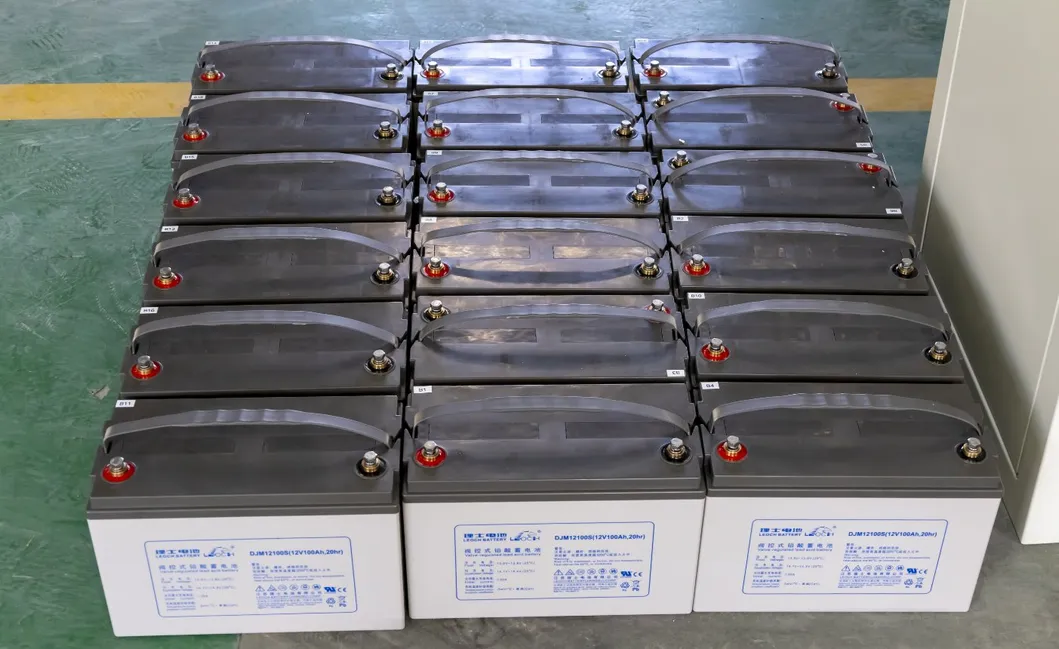

Detailed Photos

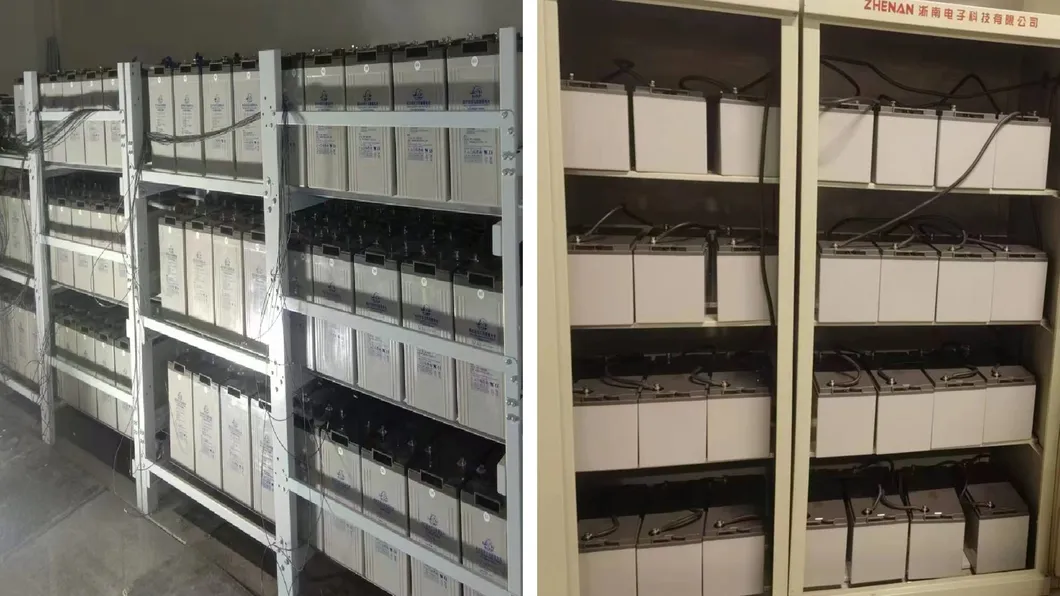

Application

Product Parameters

Rated Voltage	12V
Nominal Capacity(C,1.80V/cell)	100Ah
Dimension	Length	330±2mm (13.0 inches)
	Width	173±2mm (6.81 inches)
	Container Height	212±2mm (8.35 inches)
	Total Height	220±2mm (8.66 inches)
Approx Weight	27.8kg (61.3 lbs)
Terminal	M8
Container Material	ABS
Rated Capacity (25ºC)	100.0 Ah	C20 (5.00A, 1.75V/cell)
	92.0Ah	C10 (9.20A, 1.75V/cell)
	81.5 Ah	C5 (16.3A, 1.75V/cell)
	73.5Ah	C3 (24.5A, 1.75V/cell)
	61.3Ah	C1 (61.3A, 1.60V/cell)
Max.Discharge Current	1000A(5s)
Internal Resistance (25ºC)	Approx 5.5mΩ
Operating Temp. Range	Discharge	-20~55ºC (-4~131ºF)
	Charge	-20~40ºC (-4~104ºF)
	Storage	-15~50ºC (5~122ºF)
Nominal Operating Temp. Range	25±5ºC (77±5ºF)
Max.Charging Current (25ºC)	30A
Charge voltage (25ºC)	Charge voltage		Temp. Coefficient
	Float	2.23~2.27V/cell	-3mV/Cell/ºC
	Equalization	2.35~2.40V/cell	-4mV/Cell/ºC
	Cycle	2.40~2.50V/cell	-5mV/Cell/ºC
Effect of temp. to Capacity	40ºC (104ºF)	106%
	25ºC (77ºF)	100%
	0ºC (32ºF)	86%
Self Discharge	≤3%/month @ 25ºC

Certifications

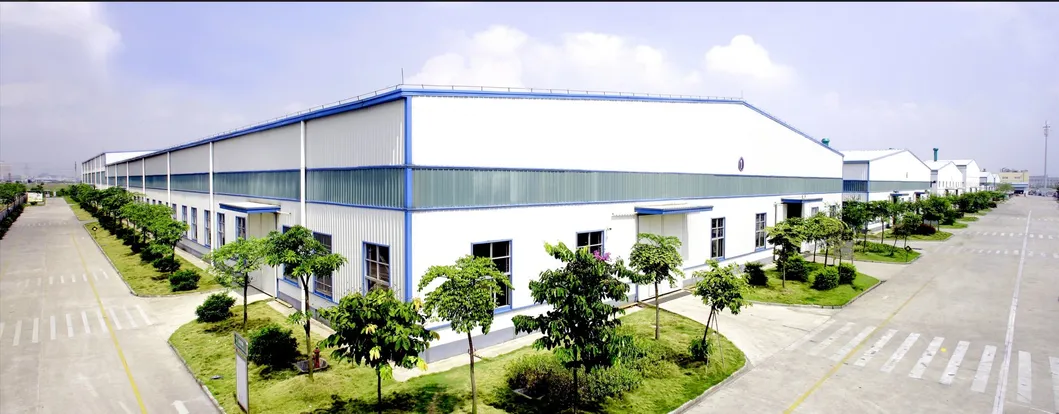

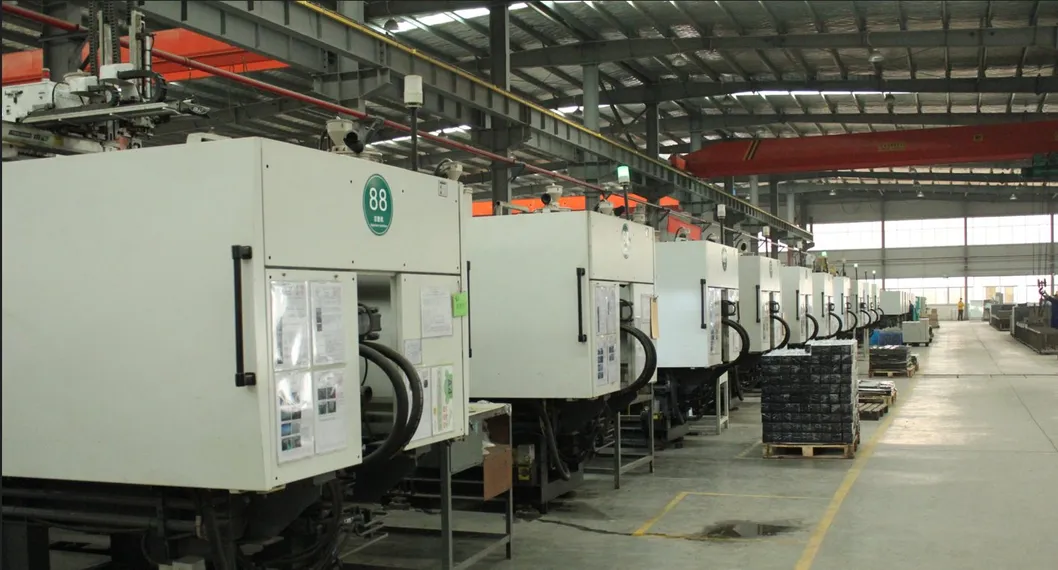

Company Profile
