Standard Battery, Lion/Lifep04/ Lithium /Lead Acid Battery Charger
Nominal Voltage
12V/24V/36V/48V/60V/72V
Charger Style
Inductive Charger
Compatible Battery Type
Lithium/Li-ion Lefepo4/Lead Acid Battery
Size
12V20A/24V20A/36V12A/48V12A/60V10A/72V8a
Certification
RoHS, CE
Socket Type
Customized
Recyclable
Recyclable
Product Name
Portable Battery Charger
Model
Sts800
Material
Aluminium
Input
180VAC ~ 260 VAC, 50 Hz / 60Hz
Output
800W
Efficiency
≥ 93% ( Full Loading )
Application
Golf Cart/Forklift/Electric Scooter/Motorcycle
Function
Charging
Feature
Safe Convenient
Warranty
24 Months

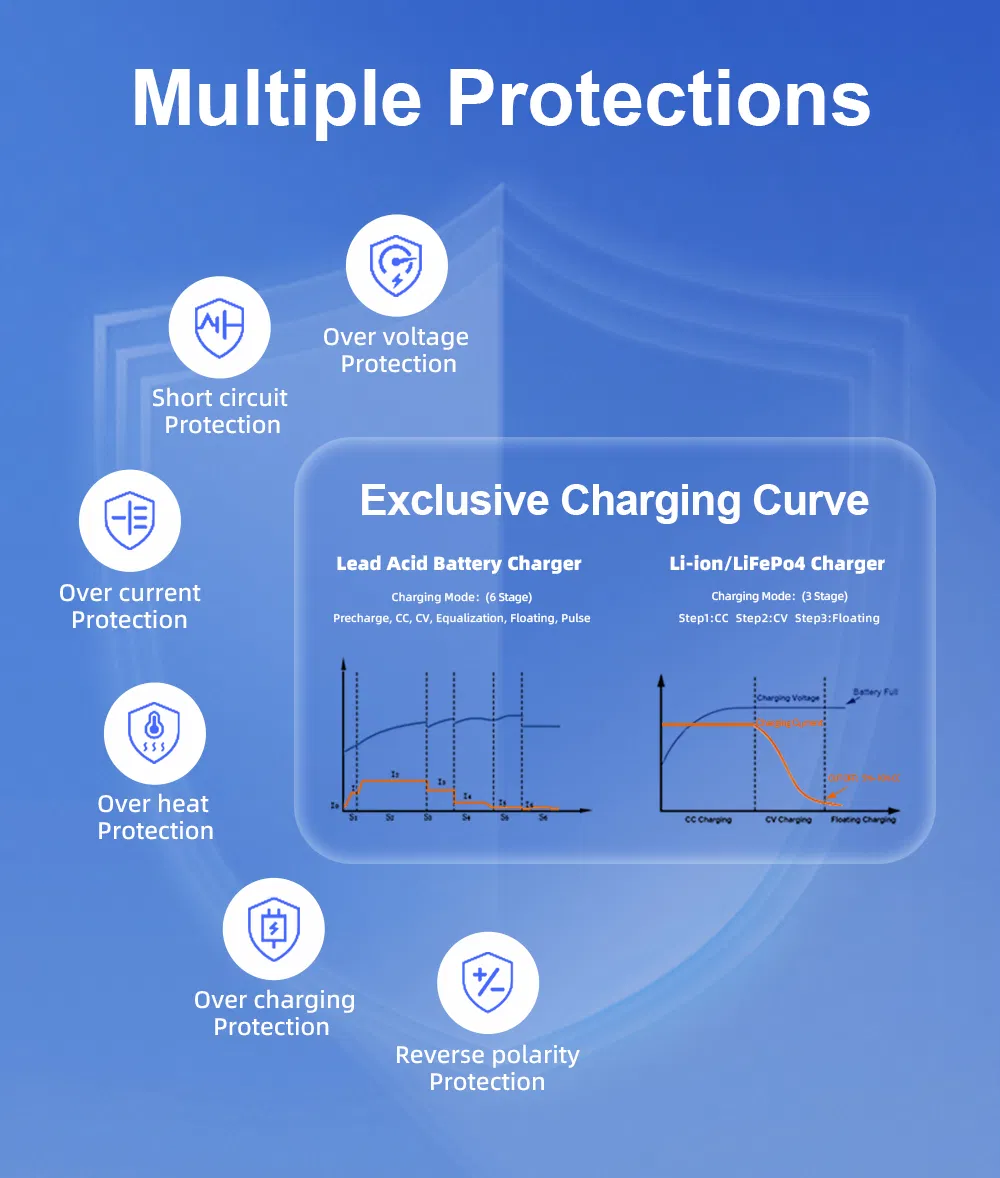

Protection
Multiple Protection
Logo
Customized
OEM/ODM
Acceptable
Package
Customized
MOQ
1PCS
Transport Package
Paper Box Packed
Specification
167*85*63MM
Trademark
QIX
Origin
China
HS Code
8504409999
Production Capacity
50000
Packaging & Delivery Details
Package Size
55.00cm * 31.00cm * 40.00cm
Package Gross Weight
21.000kg
Lead Time
15 days (1 - 2 pieces)
20 days (3 - 100 pieces)
25 days (101 - 200 pieces)
To be negotiated ( > 200 pieces)
Product Description

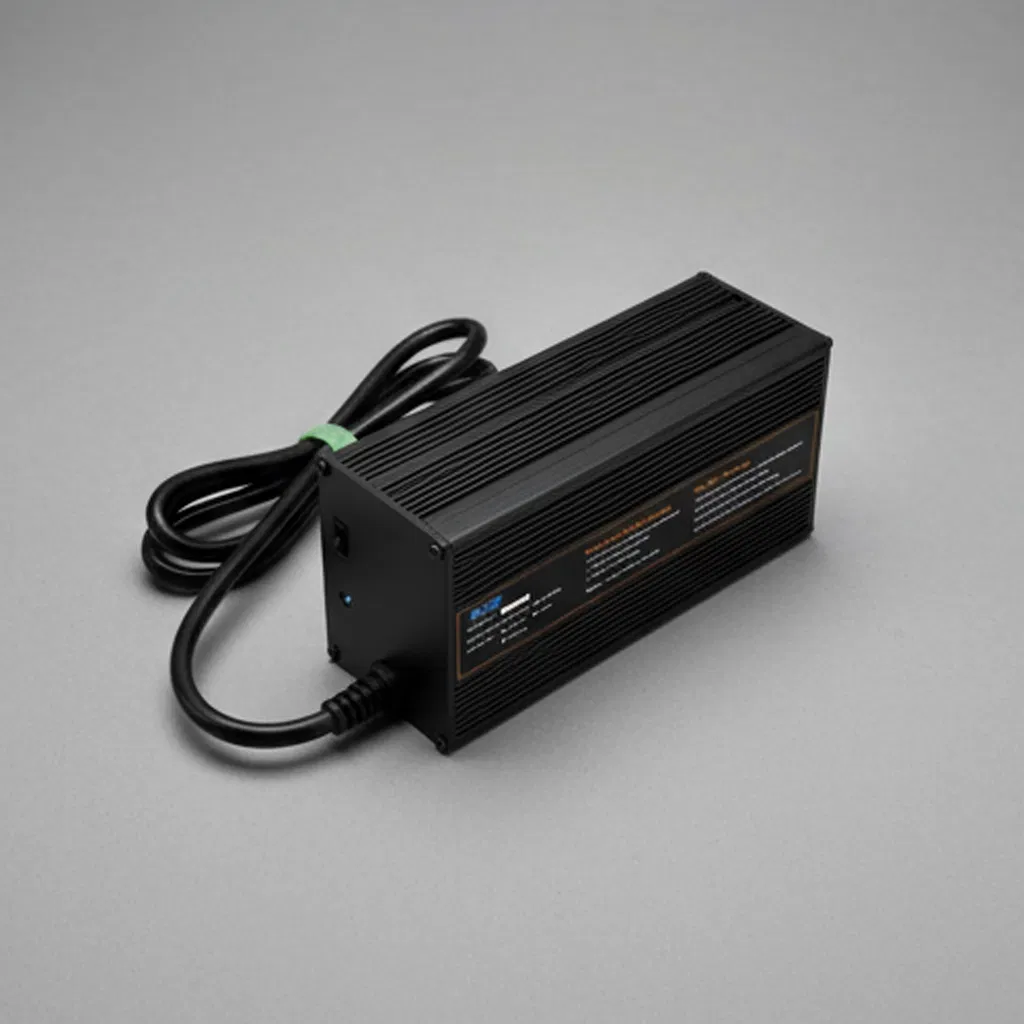

QIX Intelligent Battery Chargers

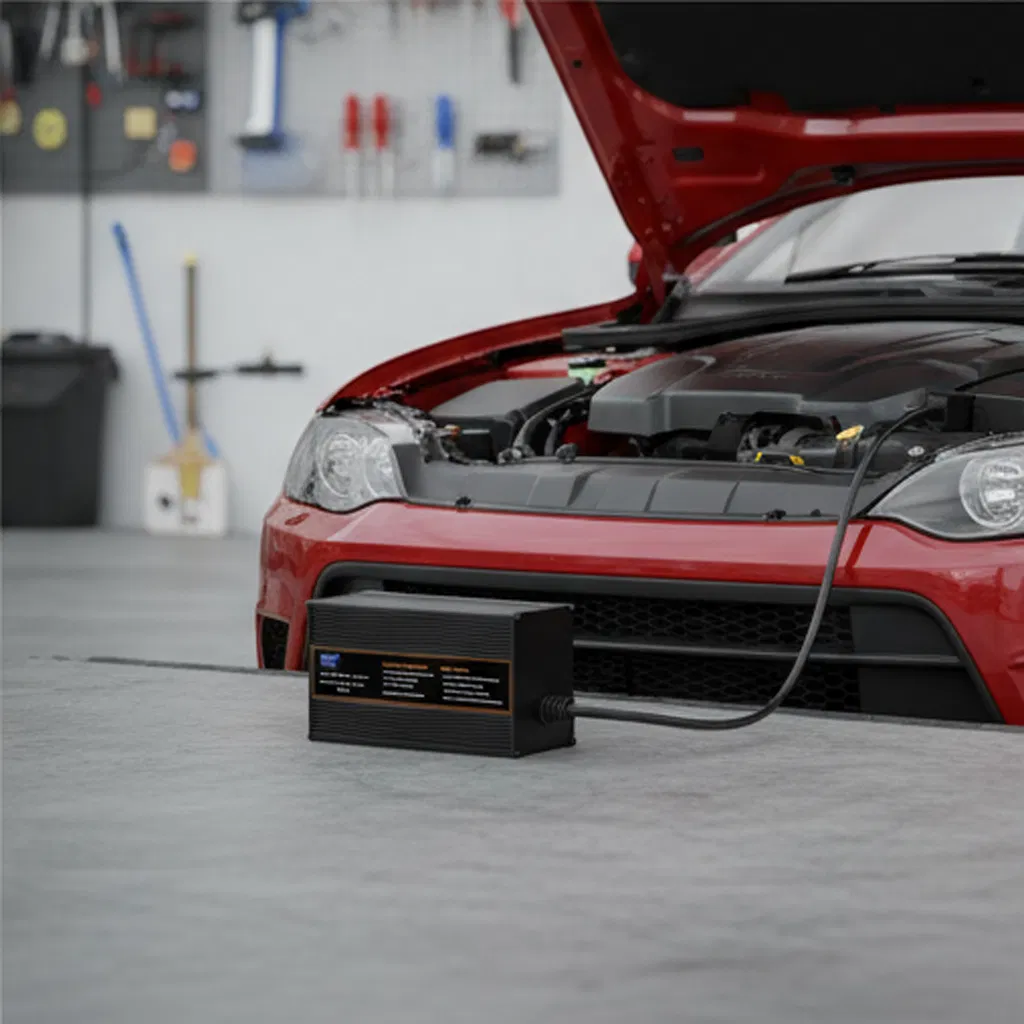

This smart battery charger is designed for lead acid batteries, LiFePO4 batteries, lithium batteries, etc. It can be used in electric cars, electric forklifts, electric sightseeing cars, electric patrol cars, golf carts, and electric dining cars for battery pack recharging.

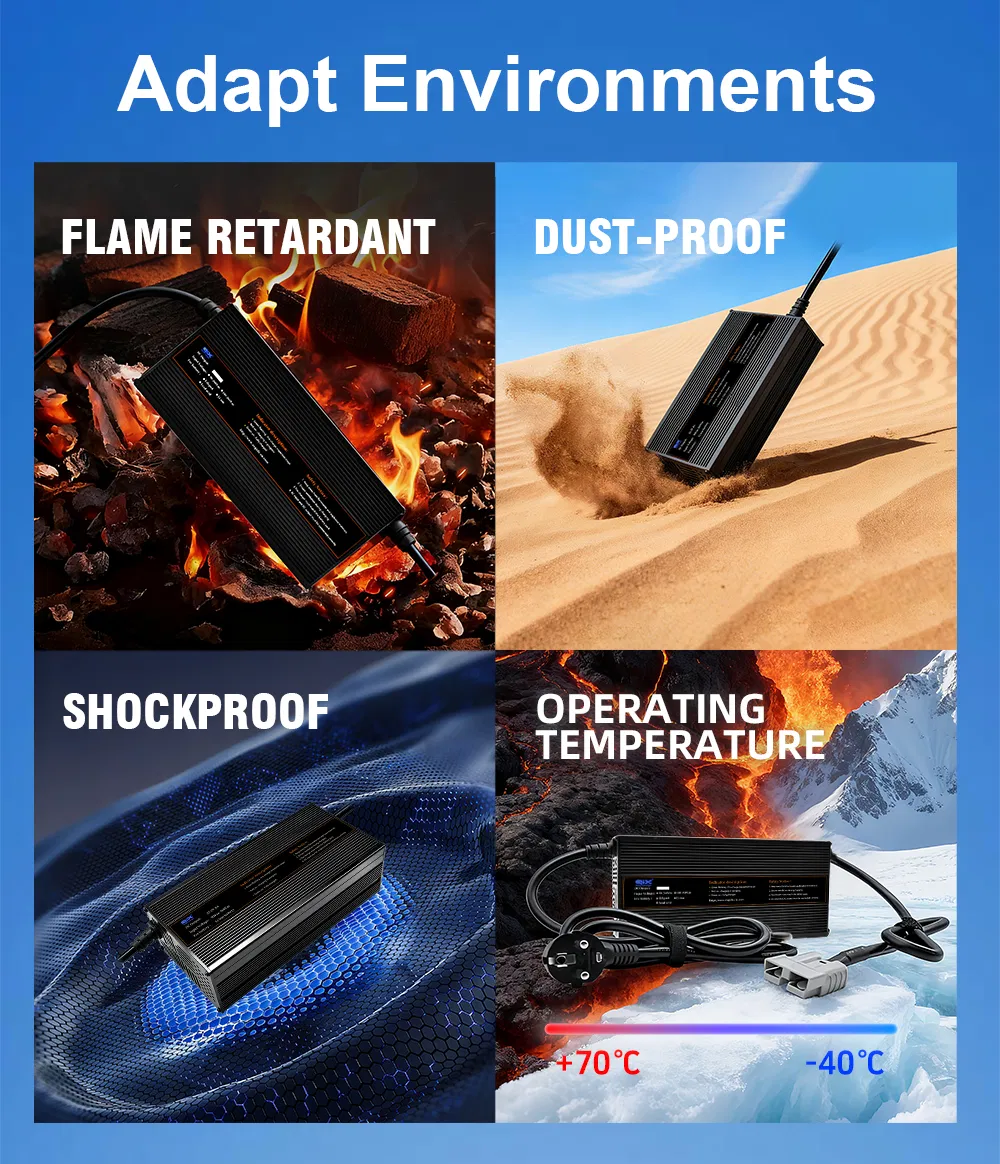

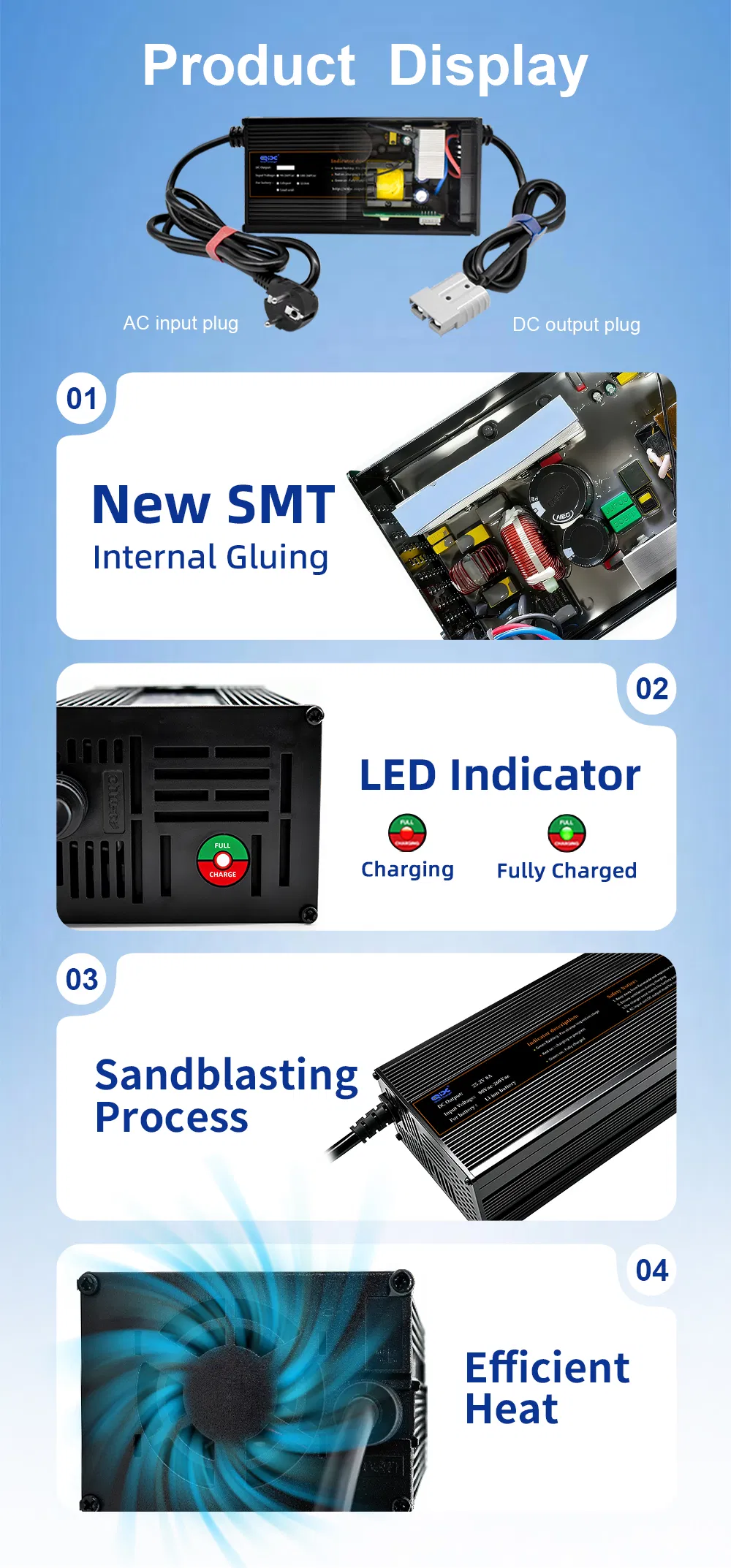

Fully enclosed aluminum alloy shell, faster heat dissipation, intelligent temperature control fan, ensuring long-term stable operation. Quality is guaranteed! Simultaneously achieving waterproof rating, splash proof and rain proof, making outdoor use more reassuring.
Detailed Specification
STS800 Battery Charger Parameter
Input voltage: 180VAC~260VAC 50HZ/60HZ
CV
CC
Transition / Cut-off Current
Net Weight
Size
Rated voltage
Lead Acid
Li-ion
LiFePo4
A
Lead Acid
Li
Kg
mm
12V
14.7V
16.8V
14.6V
20A
2.7A
2A
1.0
167*85*63
24V
29.4V
33.6V
29.2V
20A
2.7A
2A
36V
44.1V
42V
43.8V
12A
1.6A
1.2A
48V
58.8V
54.6V
58.4V
12A
1.6A
1.2A
60V
73.5V
71.4V
73V
10A
1.3A
1.0A
72V
88.2V
84V
87.6V
8A
1.1A
0.8A
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 3-10%.

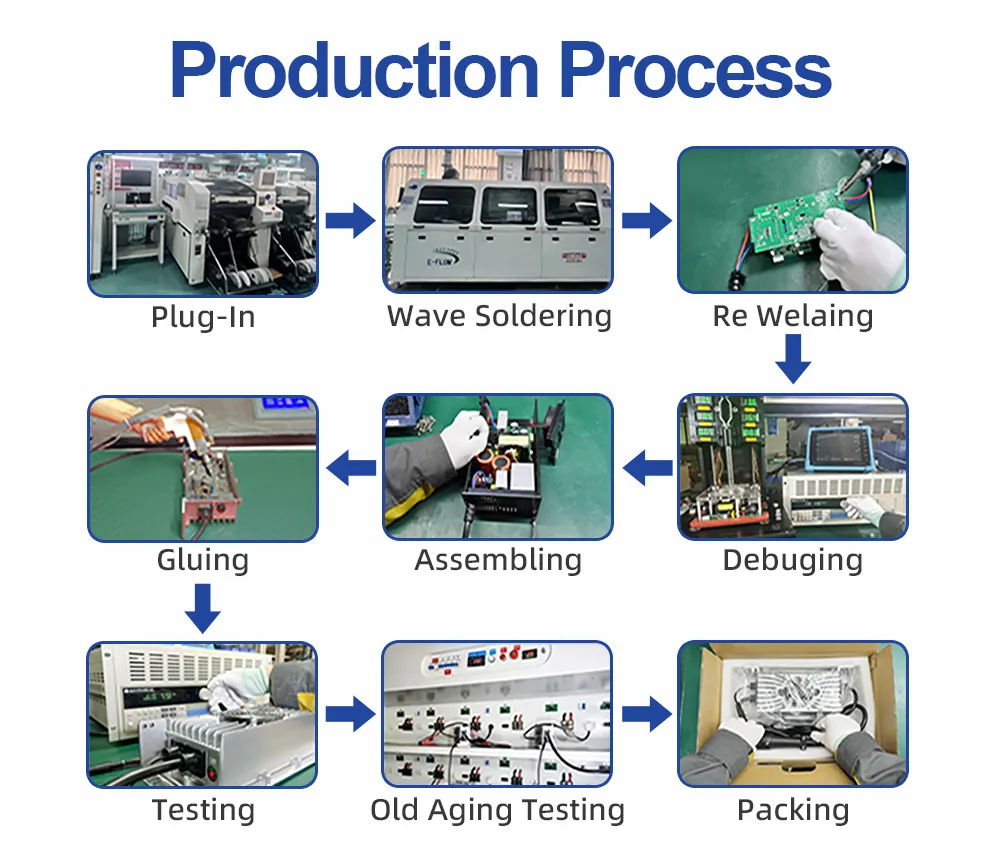

Production Process
Product Process Overview Guide
SMT: Accurately mount tiny electronic components onto the PCB circuit board to ensure the precise positioning of each component.
Wave soldering: The plug-in components are firmly soldered to the circuit board through high-temperature soldering, forming a stable electrical connection.
Re welding: Perform manual re inspection and repair welding on key welding points to further enhance product reliability.
Debugging: Conduct the first functional test to ensure that the circuit performance meets the design requirements.
Assembly: By modular assembly, PCBA is precisely combined with other structural components to form a complete product framework.
Glue Filling: The core part adopts the sealing process of glue filling, which improves the waterproof, shockproof, and heat dissipation performance.
Testing: The product will undergo comprehensive functional testing, including strict verification of performance, stability, and security.
Old Aging Test: Simulate a long-term operating environment and conduct continuous power-on aging tests on the product to ensure its long-term reliability.
Packing: Adopting shockproof and dust-proof packaging to ensure transportation safety.
Every step carries our ultimate pursuit of quality. If you have any questions, please feel free to communicate at any time!
Certifications
Our Credentials: A Promise of Excellence
Specializing in chargers, lithium batteries, BMS, inverters, and other electronic products, we uphold global standards to deliver quality, integrity, and innovation. Below are our key certifications and their value to you:
1. CE Certification: Our products meet EU safety, health, and environmental regulations—enabling seamless entry into European markets.
2. RoHS Certification: Our products comply with EU safety standards, ensuring that they do not contain harmful chemicals to human health and the environment during production, use, and disposal processes.
3. CB Certification: This certification covers safety standards for electronic and electrical products, and our products comply with CB safety testing.
4. ISO 9001 (Quality Management System): A robust quality framework guarantees consistent product quality, efficient processes, and continuous improvement.
5. Design Patent Certificate: This protects our innovative designs, showcasing our commitment to unique, market-leading solutions.
6. Product Test Reports: Independent testing confirms our battery chargers and accessories meet global performance and safety standards.
Why This Matters to You
• Quality: Rigorous systems ensure consistent, reliable products.
• Integrity: Fair practices and responsible sourcing align with your values.
• Innovation: Patented designs set your offerings apart.
• Market Access: CE/RoHS/CB/ISO certifications open doors to global markets.
Customer Feedback
OUR Mission: Provide reliable, efficient, and environmentally friendly new energy chargers for global marketing
From customer feedback, it can be seen that everyone is extremely satisfied with the product. They praise the product's functionality for meeting their needs, smooth use, and far exceeding expectations in terms of battery life and texture, solving many pain points in daily use.
They also highly appreciate the service, with timely and professional responses to pre-sales inquiries, efficient and thoughtful after-sales handling, and the ability to quickly follow up and solve problems.
Many customers have expressed that they will recommend it to people around them and look forward to more new products, which shows their trust and recognition.
Choosing us is like finding a partner who understands you.

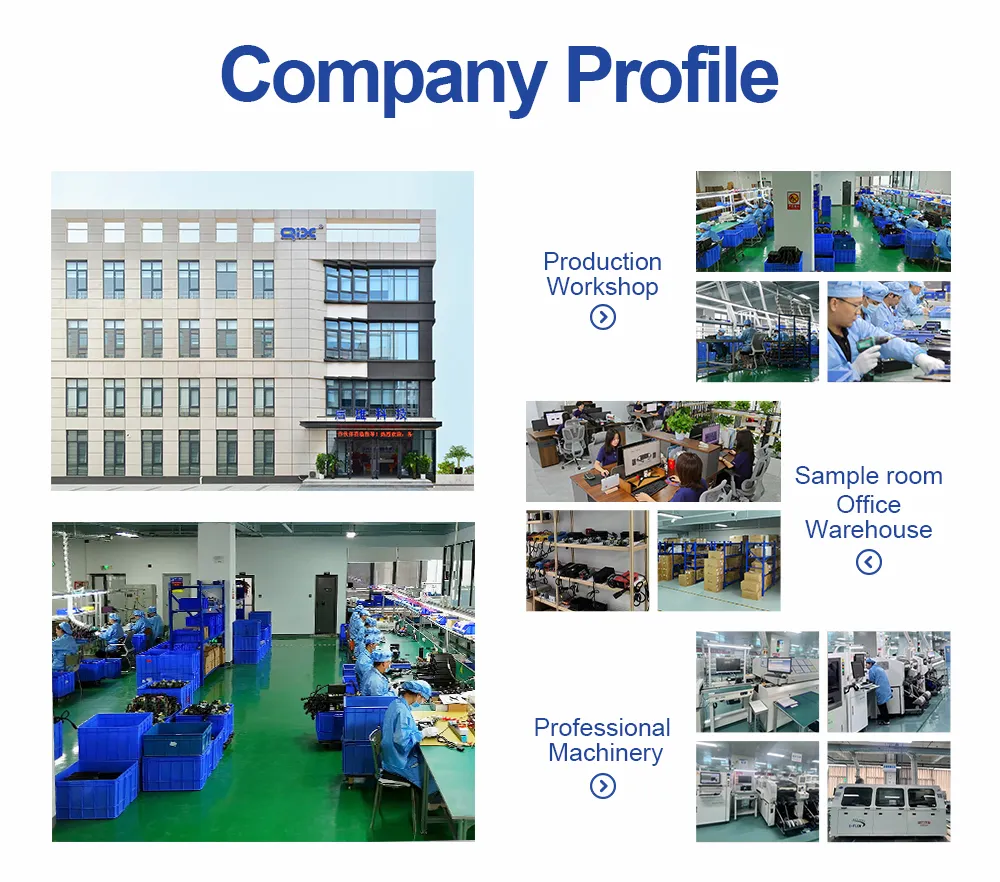

Company Profile
Innovation Leader in the Field of New Energy
We have been steadily advancing in the field of new energy lithium batteries and battery chargers for 20 years. Operating from a 3000 square meter intelligent production base, which serves as our center for innovation and quality.
We implement a unique "Five Dimensional Quality Assurance System", which includes 26 quality inspection processes from raw material selection to finished product delivery. Our products cover various types such as lead-acid battery chargers and lithium-ion battery chargers, passing multiple international certifications such as CE, RoHS, CB, etc., ensuring that each product meets high global standards.
In terms of battery chargers, we constantly innovate and develop efficient and safe charging solutions for different models such as electric motorcycles, electric bicycles, and electric tricycles. Looking ahead, we will continue to uphold the concept of innovation, quality, and service, committed to providing global customers with higher quality new energy products and solutions.
Excellent Service and Comprehensive Procurement Support
What sets us apart in the industry is our consistent high-quality service and solid comprehensive service capabilities. For overseas customers planning to purchase products, we are undoubtedly your trusted partner.
We have the purchasing strength to accurately match various products you need, relying on extensive and stable cooperation resources accumulated through years of deep market cultivation. Our professional team follows up throughout the entire process, from requirement communication to order delivery, providing meticulous and efficient service support to ensure a smooth and worry-free process for you.
No matter what category, specifications, or quantity of products you need, we can handle them with ease, making your procurement journey simple and worry-free.
Packing & Delivery
To ensure shipping fees and delivery schedules align with your needs, let's collaborate to craft the ideal plan. Connect with us directly to discover smooth shipping solutions and bespoke arrangements, perfectly tailored to your requirements.
Frequently Asked Questions (FAQ)
Q1. Are you the manufacturer?
Yes, we are a factory with 15+ years of experience, mainly engaged in: Lead acid battery chargers, Lithium battery chargers, and LiFePO4 battery chargers.
Q2. How do I choose a charger?
Please provide us with the following information:
1) Input voltage
2) Output voltage and current
3) Battery type

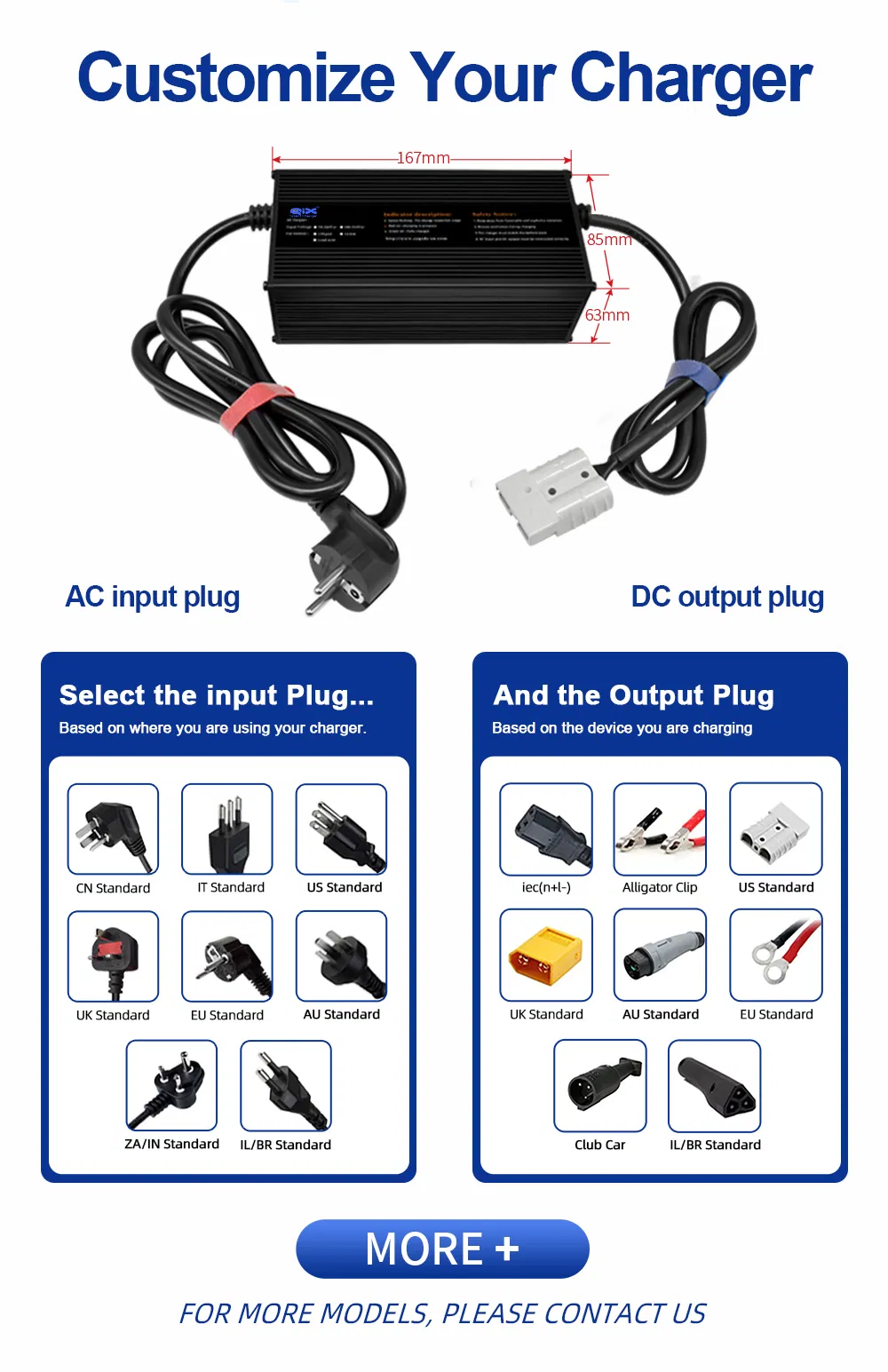

4) Specification of input and output plugs
Then we will suggest the most suitable charger for your reference.
Q3. Can you do customized designs for us?
Yes, we provide OEM and ODM services. We have rich experience to understand buyers' requirements and execute development effectively.
Q4. How about the shipment and delivery times?
Generally, it takes 5-7 days for production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. It can be shipped by DHL, FedEx, UPS, sea freight, etc.
Q5. What are the accepted payment methods?
You can pay via T/T, PayPal, bank transfer, D/A, D/P, credit card, L/C, etc.
Q6. How do you resolve technical issues?
We have a professional team ready to assist you. 24-hour after-service consulting is dedicated to resolving any problems you might encounter. If you meet any issues, please do not hesitate to contact us.
