Advanced IP67 Rapid Charging System for Electric Cars

1 / 5

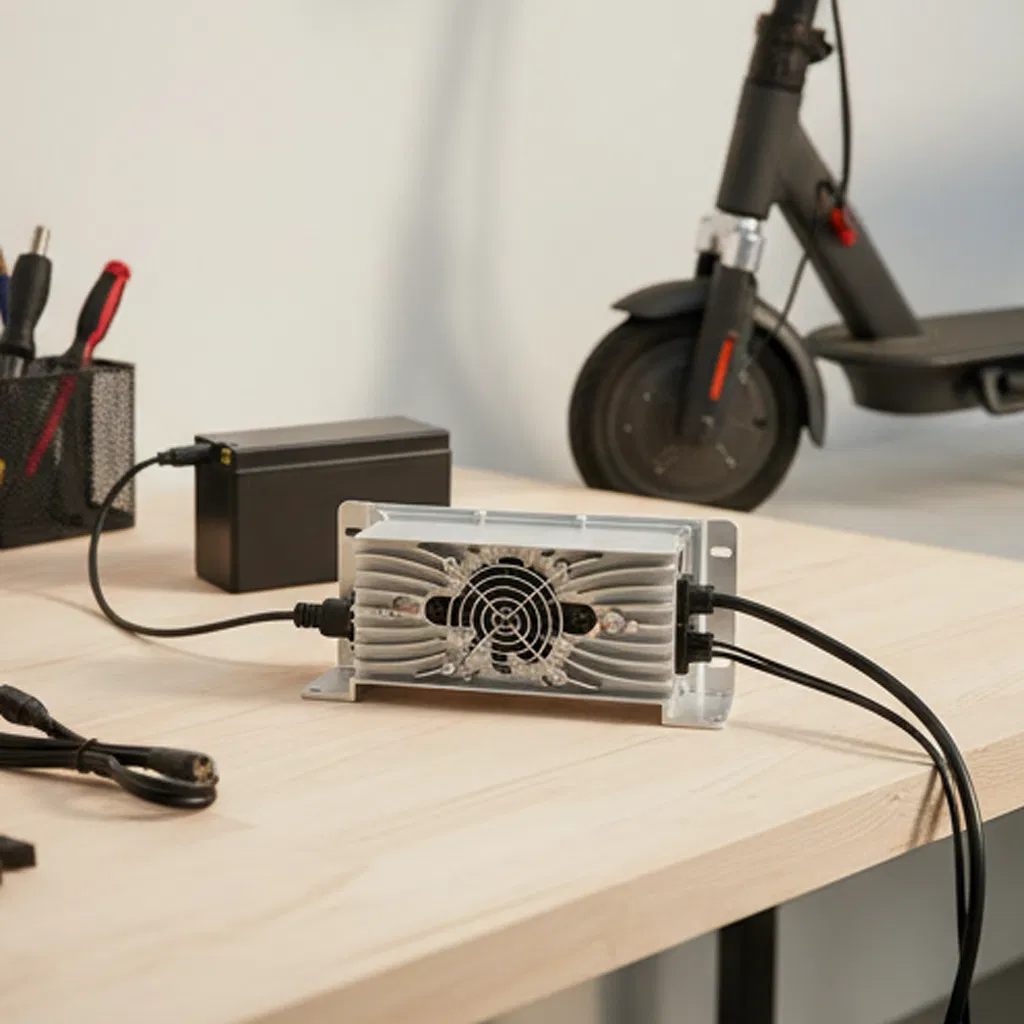

Advanced IP67 Rapid Charging System for Electric Cars

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

QX1200

Charger Application

Standard Battery, Lithium/Li-ion Lefepo4/Lead Acid Battery Charger

Nominal Voltage

12V/24V/36V/48V/60V/72V

Charger Style

Intelligent Charger

Compatible Battery Type

Lithium/Li-ion Lefepo4/Lead Acid Battery

Size

12V30A/24V30A/36V30A/48V25A/60V20A/72V18A

Certification

RoHS, CE

Socket Type

Customized

Material

Aluminium

Input

90V-260V

IP Rating

IP67

Efficiency

≥ 93% ( Full Loading )

Warranty

24 Months

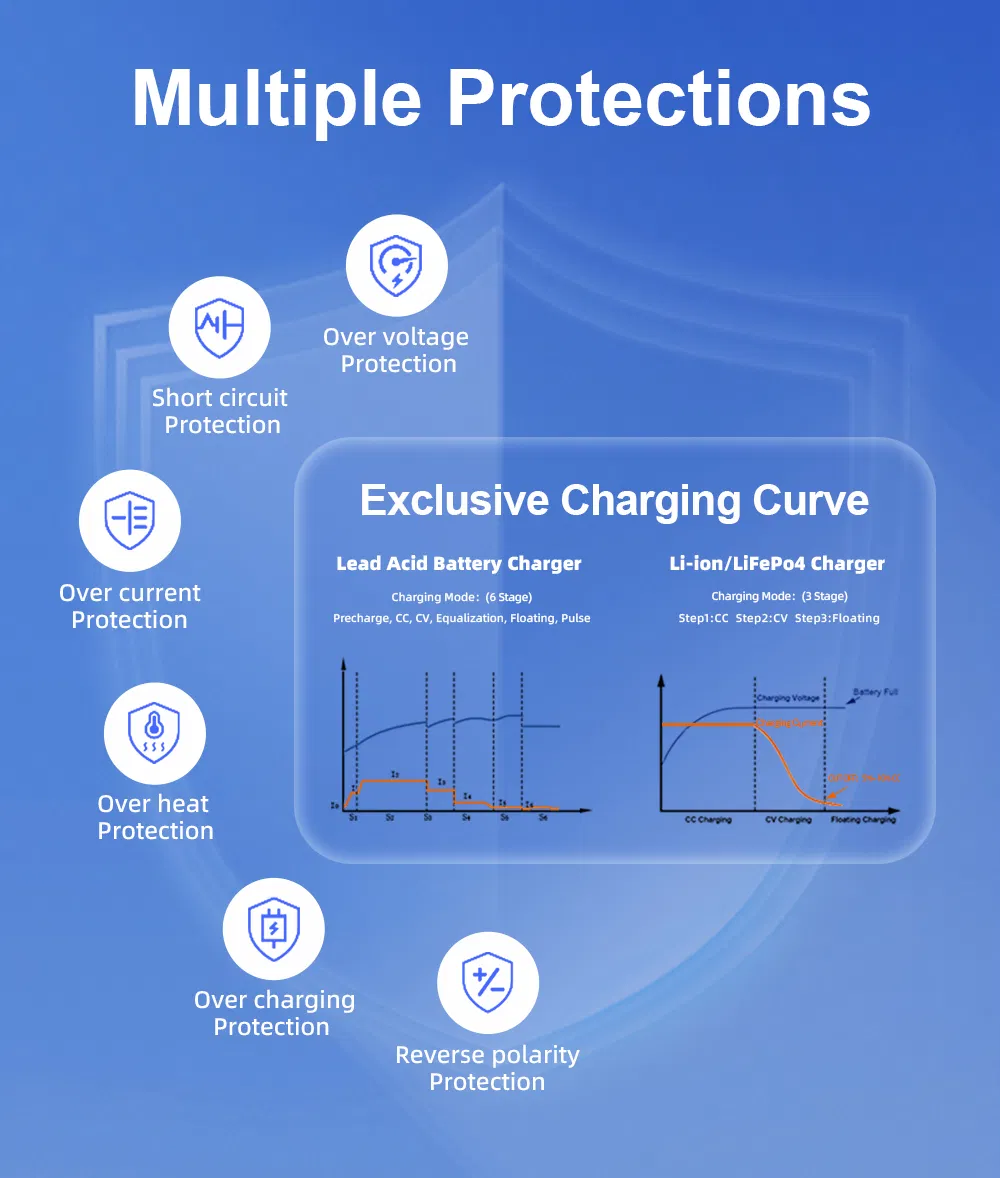

Protection

Short Circuit Protection, Over-Charging

Packaging & Delivery Details

Package Size

55.70cm * 40.00cm * 46.00cm

Package Gross Weight

18.000kg

Lead Time

15 days (1-2 pcs) / 20 days (3-100 pcs) / 25 days (101-200 pcs)

Product Description

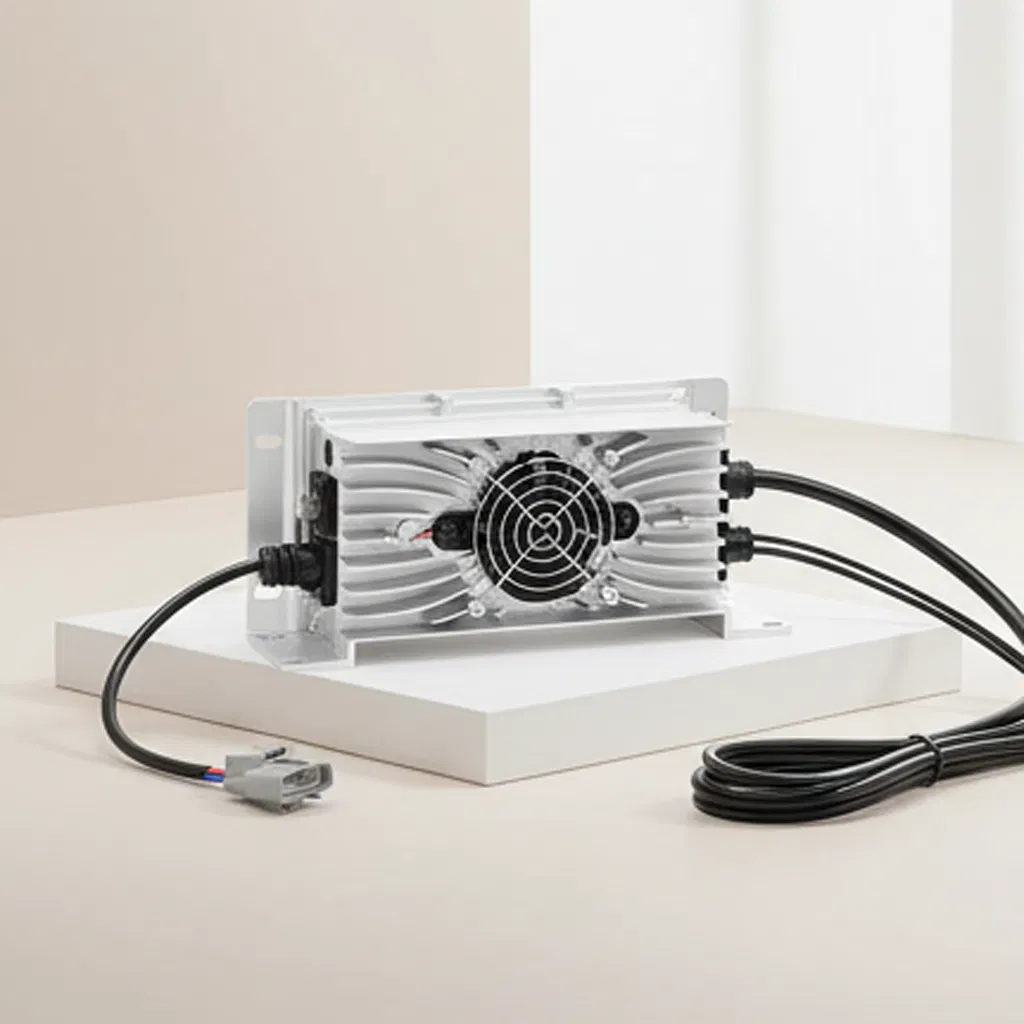

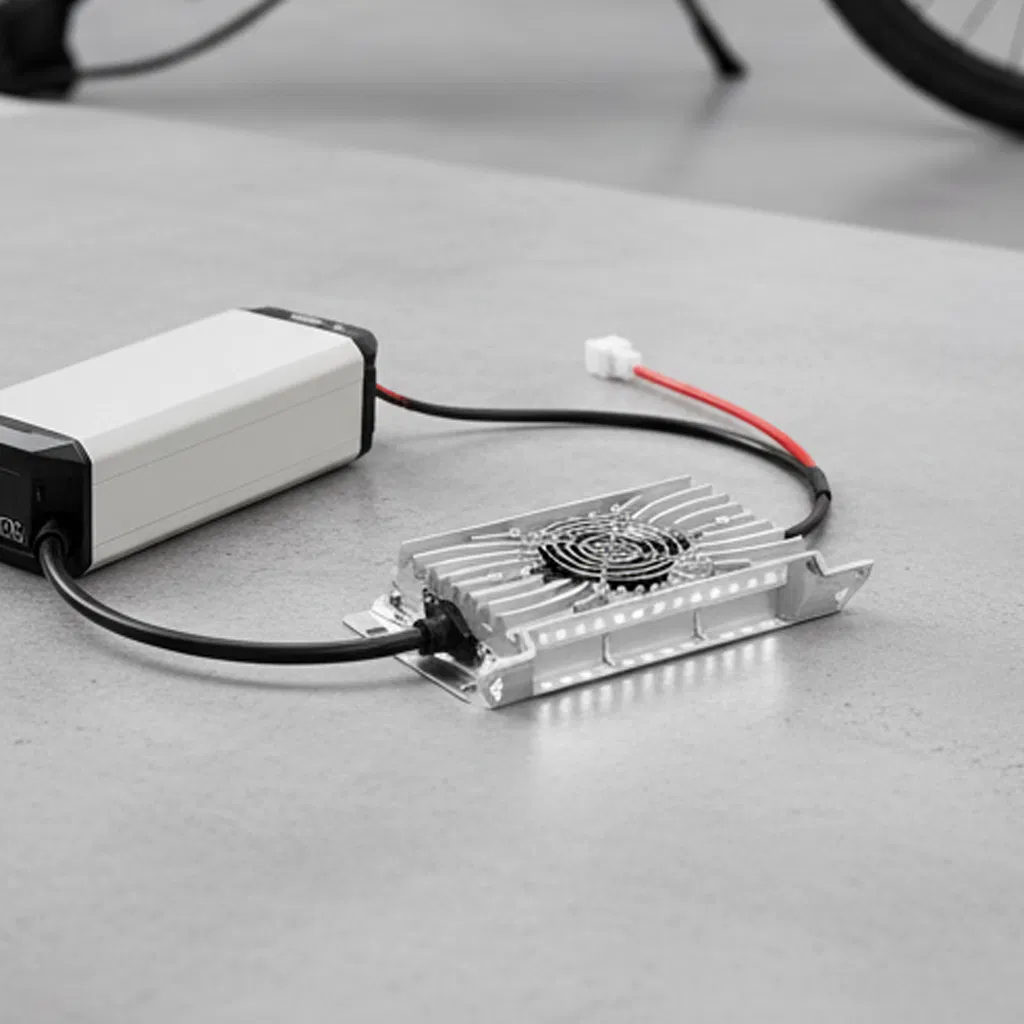

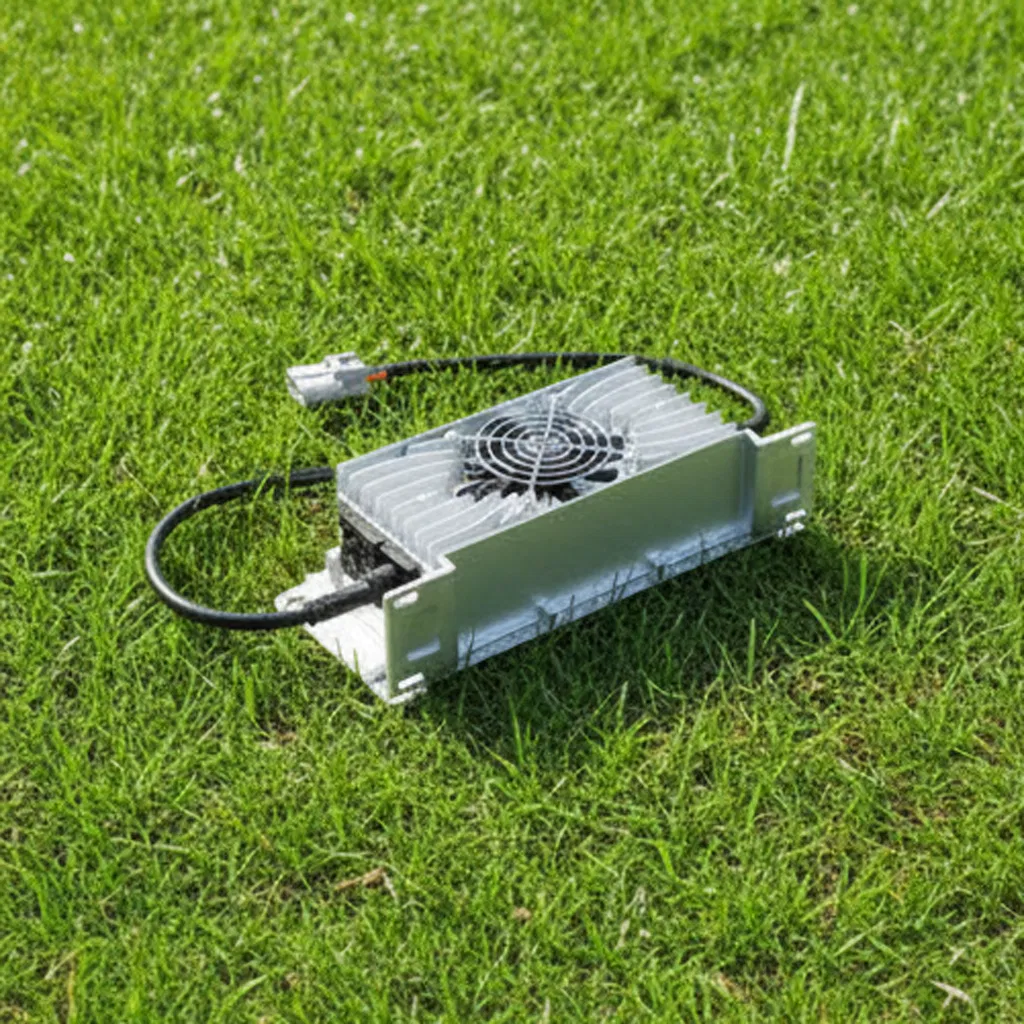

Intelligent Battery Chargers

This smart battery charger series is specifically engineered for lead-acid, LiFePO4, and lithium battery charging. It is widely applicable in electric vehicles, electric forklifts, sightseeing cars, patrol cars, golf carts, and electric dining cars for safe and efficient battery pack recharging.

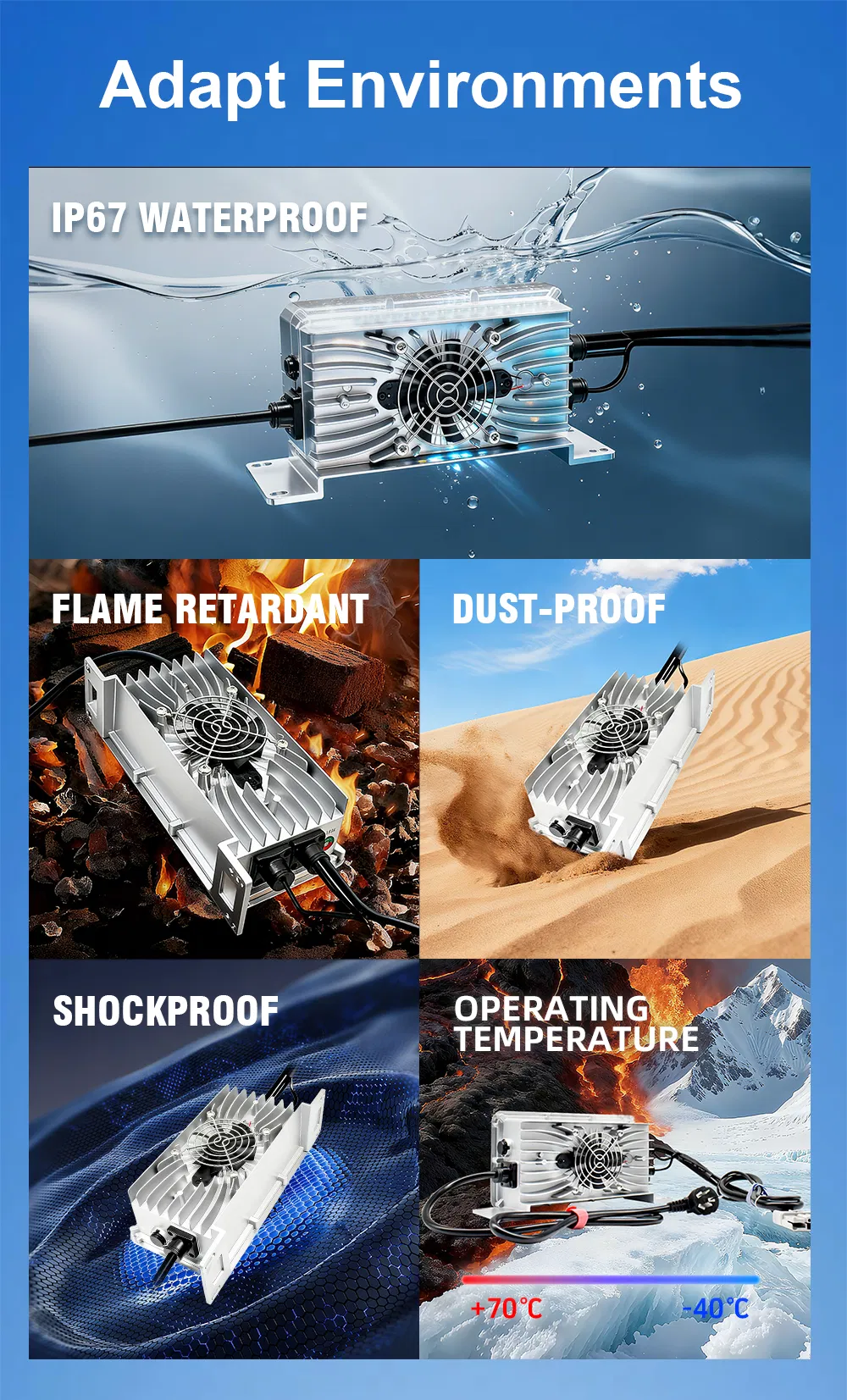

Featuring a fully enclosed aluminum alloy shell for enhanced heat dissipation and an intelligent temperature-controlled fan, it ensures long-term operational stability. Rated at IP67 for waterproof capability, it provides excellent dust, splash, and rain protection for confident outdoor use.

Specifications

QX1200 Battery Charger Parameters
Input Voltage	90VAC ~ 260VAC, 50Hz/60Hz
Rated Voltage	Lead Acid (CV)	Li-ion (CV)	LiFePo4 (CV)	CC @220Vac	CC @110Vac	Net Weight (kg)	Dimensions (mm)
12V	14.7V	16.8V	14.6V	30A	30A	3.0	28112880
24V	29.4V	33.6V	29.2V	30A	18A
36V	44.1V	42V	43.8V	30A	18A
48V	58.8V	54.6V	58.4V	25A	15A
60V	73.5V	71.4V	73V	20A	12A
72V	88.2V	84V	87.6V	18A	11A
Note: Cut-off point for Lithium battery is 5% of Constant Current (CC), adjustable between 3% to 10%.

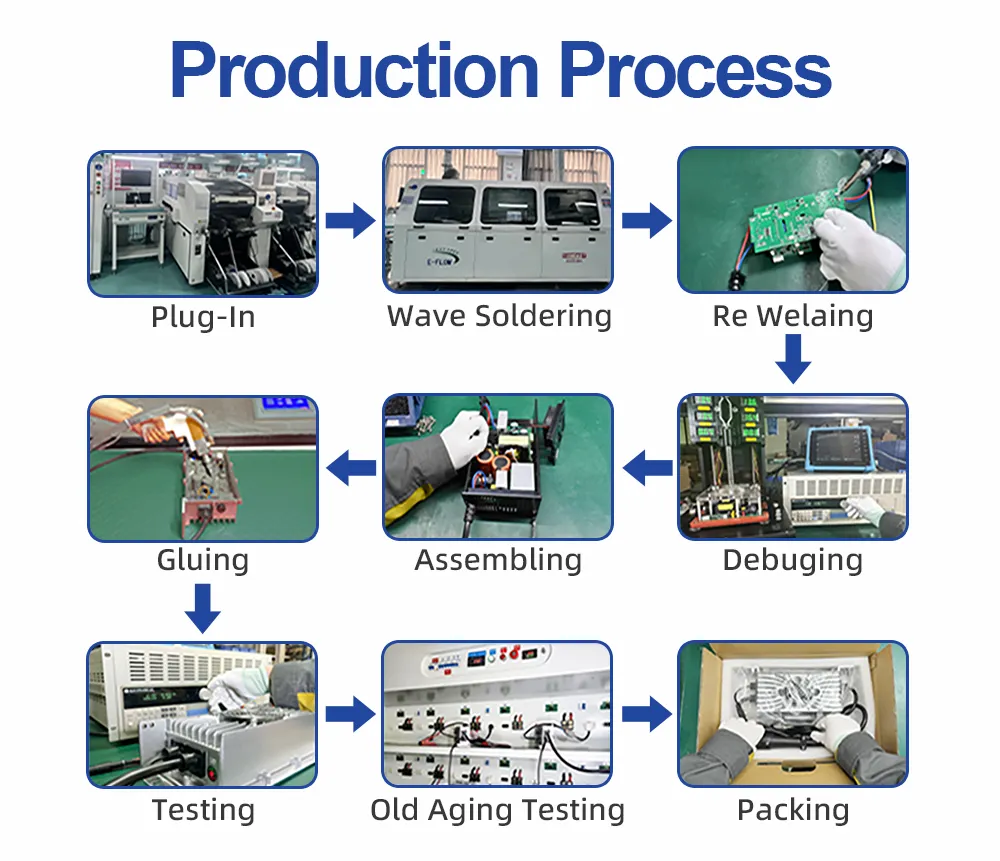

Production Process

Product Process Overview Guide

Step 1: SMT

Accurately mount electronic components onto the PCB board to ensure precise positioning.
Step 2: Wave Soldering

The plug-in components are firmly soldered through high-temperature soldering, forming a stable electrical connection.
Step 3: Re-welding

Perform manual inspection and repair welding on key joints to enhance product reliability.
Step 4: Debugging

Conduct functional testing to ensure that circuit performance meets design standards.
Step 5: Assembly

Combine PCBA modular components with the outer casing structures to form a complete unit.
Step 6: Glue Filling

Apply a sealing glue process to protect core components, improving waterproof, shockproof, and thermal dissipation levels.
Step 7: Testing

Complete comprehensive testing for functionality, safety, and stability.
Step 8: Burn-in / Aging Test

Subject the products to continuous operation under load to verify long-term runtime reliability.
Step 9: Packaging

Secure products using protective, shock-absorbing materials for safe shipment.

Every step carries our ultimate pursuit of quality. If you have any questions, please feel free to communicate with us.

Certifications

Our Credentials: A Promise of Excellence

Specializing in chargers, lithium batteries, BMS, inverters, and key electronic products, our factory upholds global standards to deliver high quality, integrity, and innovation.

CE Certification: Complies with EU safety, health, and environmental regulations.
RoHS Certification: Guarantees hazardous substance compliance for safety and ecology.
CB Certification: Facilitates universal safety testing acceptance globally.
ISO 9001: Verifies our robust Quality Management System.
Design Patent Certificate: Showcases our investment in original and unique product styling.
Product Test Reports: Third-party audits verifying reliability, electrical stability, and safety.

Customer Feedback

Our Mission: Provide Reliable & Efficient Energy Chargers Global-Wide

Customer feedback indicates high satisfaction with charger functionality and build quality. Users report stable, long-term battery performance, which resolves common daily recharging challenges.

Our pre-sales communication and responsive support are highly valued. Professional guidance ensures every project finds the matching charger requirements quickly and easily.

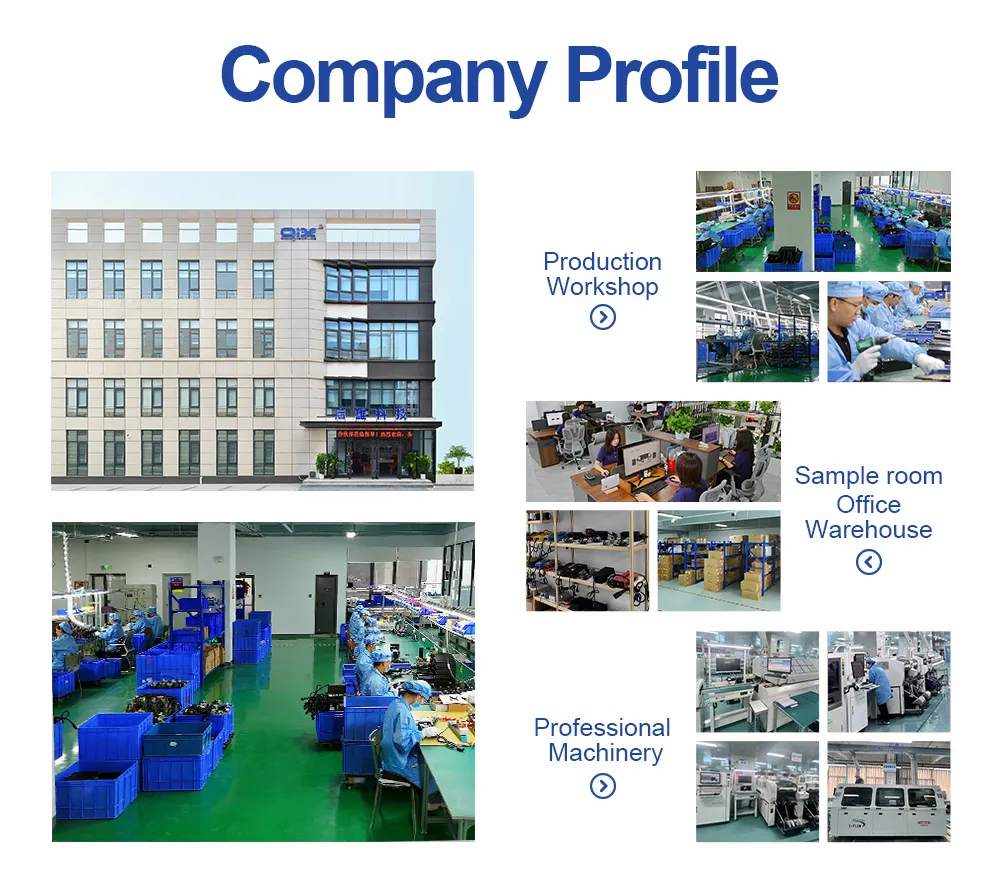

Company Profile

Innovation Leader in New Energy

With 20 years of focus in the lithium battery and smart charger sectors, our factory spans a 3,000 square meter intelligent manufacturing floor. We utilize a comprehensive multi-stage Quality Assurance system covering raw materials incoming inspection, SMT, wave soldering, manual inspection, waterproofing, and load burn-in trials.

Robust Engineering & Capabilities

Our engineering support provides bespoke charging solutions tailored for electric motorcycles, cleaning equipment, golf carts, and material handling systems. Constant integration of certified standards keeps our offerings safe and efficient.

Packing & Delivery

To ensure logistics costs and delivery times match your scheduling needs, our team will coordinate the optimal shipping routes and packaging styles for you. We provide shock-resistant, highly durable packaging configurations suitable for express courier, air freight, or ocean shipment.

Frequently Asked Questions

Q1. Are you a manufacturer?

Yes, we operate a production facility with over 20 years of experience, specializing in the development and manufacturing of lead-acid battery chargers, lithium battery chargers, and LiFePO4 battery chargers.

Q2. How do I choose a suitable charger?

Please provide us with your requirements including: 1) Input voltage, 2) Output voltage and current, 3) Battery chemistry type, and 4) Input/Output plug specifications. Our engineering team will suggest the most compatible match.

Q3. Do you support customized designs?

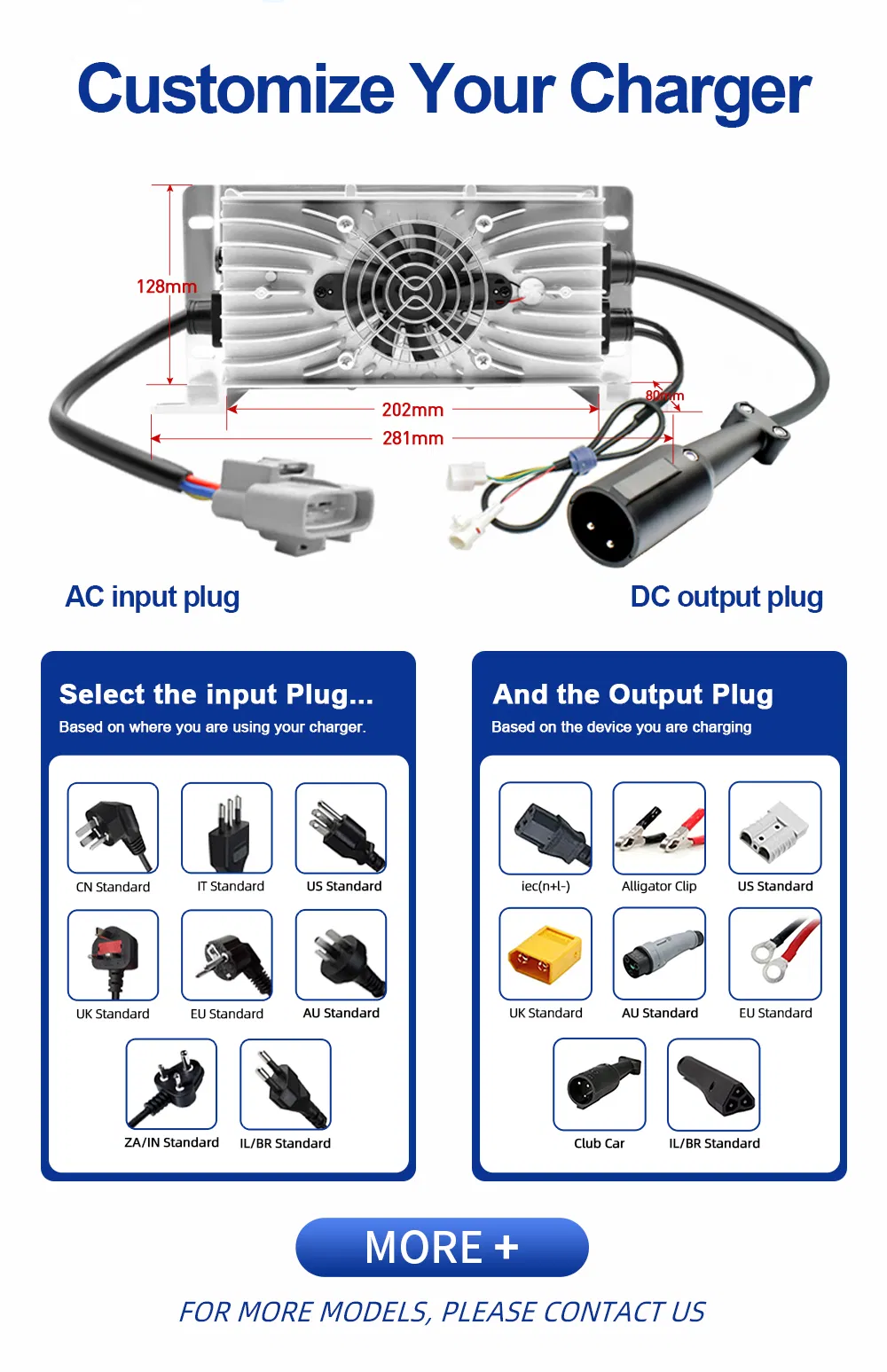

Yes, we provide full OEM and ODM services. We have the capability to handle modifications to casing designs, output curves, plug interfaces, and logo labeling according to customer requirements.

Q4. What are the typical lead times and shipping options?

Standard production typically takes 5 to 7 days after order confirmation, depending on specific volume requirements. We ship globally via DHL, FedEx, UPS, or by ocean freight.

Q5. What payment methods do you accept?

We support multiple payment channels including T/T bank transfers, PayPal, L/C, D/P, and credit card options.

Q6. How is technical support handled for your chargers?

We offer dedicated engineering support to troubleshoot setup or integration questions. Our team provides fast technical assistance to resolve any issues you might encounter during deployment.
