| Parameter | Details |
|---|---|
| Motor | AC 5kw (with electromagnetic brake) |
| Controller | USA CURTIS:1234E-5321/AC 350A |
| Rear axle | CVT rear axle (exclusive imported product) |
| Accelerator | Non-contact angle sensor accelerator (completely sealed/patent product) |
| Steering system | Dual direction gear, rack steering system (automatic gap compensation function) |
| Front cushioning | RD double swing arm independent suspension |
| Rear cushioning | Independent suspension spring hydraulic cushioning (semi-independent suspension) |
| Vehicle exterior trimming | PP engineering plastic, mold tinting |
| Meter | Digital Meter, electric meter, speed forward, backward, fast speed, slow speed display |
| Seat | Low back soft seat |
| Tire | USA CARLISLE 205/50-10 Tire, better wear resistance |
| Brake system | Dual security by electric brake and hydraulic disc brake on four wheels,bring safer braking results(automatic parking,patent product) |
| Vehicle color | Ordinary color, special colors will incur additional charge |
| Bottom plate | PP battery plastic bottom plate (anti-rust, anti-corrosion) |
| Chassis | High strength aluminum structural main girder (solid, durable, anti-corrosion) |
| Electric start lock | Imported components |
| Forward/backward gear switch | Imported components |
| Ground clearance | 120 mm |
| Front/back wheel width | 1080 mm front/ 1190 mm back |
| Wheel base | 3290 mm |
| Minimum turning radius | 4.8m |
| Highest forward speed | 18~40 km/h adjustable, configured for fast and low gear switch |
| Gradeability | ≤30% |
| Range (flat ground) | 90-110 km |
| Net weight | 390 kg |
| Vehicle dimension (L*W*H) | 4040*1190*1900 mm |
| Tow truck switch | Easier, faster check and repair |
| Rear view mirror | Rear view mirror |
| Wheel rim | Steel rim |
| Wind shield | One piece |

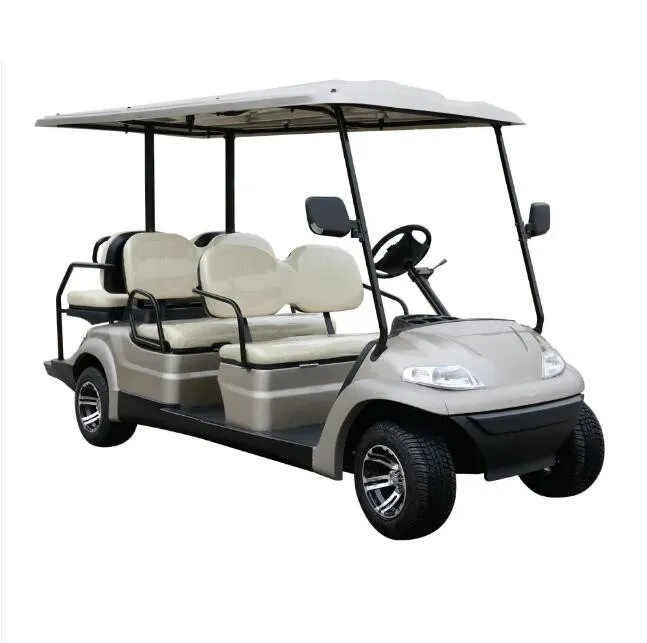

Under flat ground testing conditions, this electric golf car provides a driving range of approximately 90 to 110 km.
It is equipped with a high-performance AC 5kw motor (which includes an electromagnetic brake) and a reliable USA CURTIS 1234E-5321/AC 350A controller.
This vehicle utilizes a dual security system, combining an electric brake and hydraulic disc brakes on all four wheels. It also features a patented automatic parking mechanism to ensure safer stopping.
The chassis is constructed from a high-strength aluminum structural main girder designed for solid durability and corrosion resistance. The exterior trimming is made of mold-tinted PP engineering plastic.
The maximum forward speed is adjustable from 18 to 40 km/h via a fast and low gear switch. The vehicle also has a gradeability rating of up to 30%.
