| Electrical System | |
| Controller | Exclusive AC controller |
| Battery | Exclusive maintenance-free battery, 8V per cell, 6 cells, 150AH (3-hour rate); optional lithium battery available |
| Motor | Exclusive AC asynchronous motor, 48V/5KW |

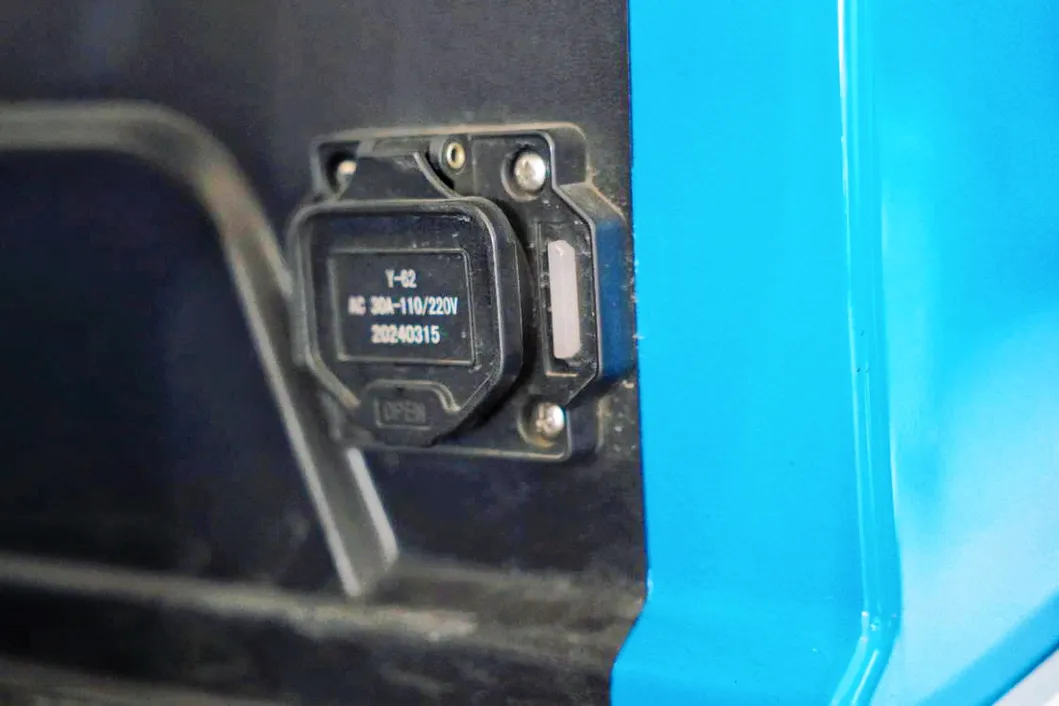

| Charger | Intelligent onboard charger, 48V/25A, wide voltage input 110-220V + Bluetooth communication, charging time < 8 hours |
| DC to DC Converter | High-power wide voltage DC converter, 30V-90V/12V-500W |
| Body Configuration | |

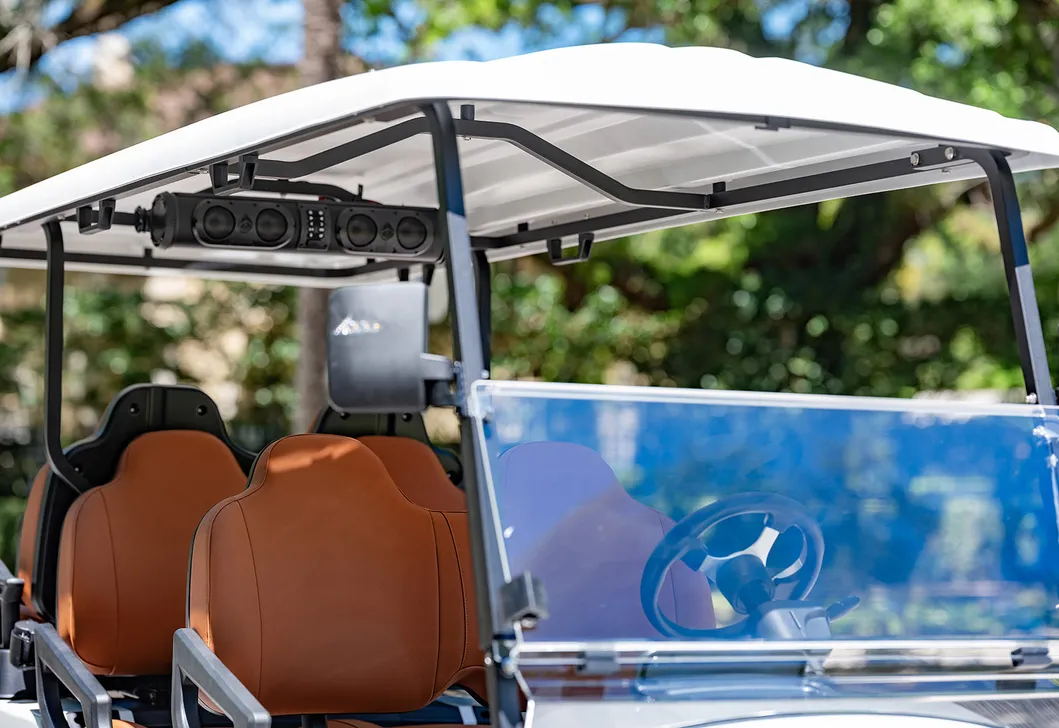

| Front Wiper | Acrylic organic glass; optional tempered glass + wiper motor |
| Roof | Automotive PP material injection-molded integrated roof |

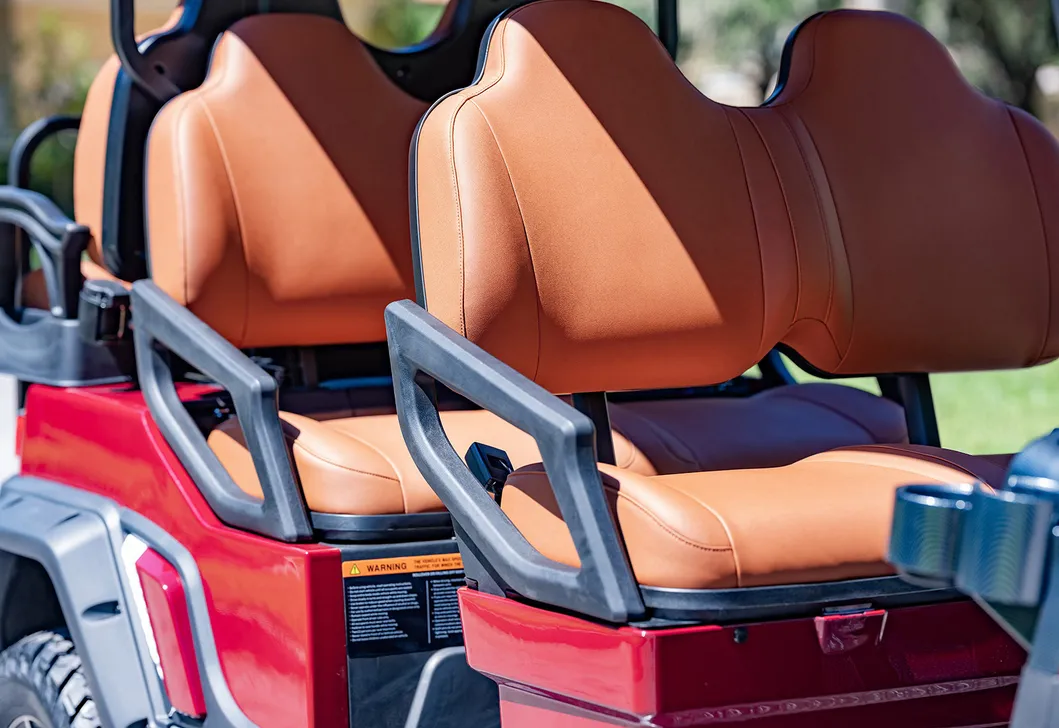

| Seats | Ergonomically designed seats, leather upholstery |
| Flooring | Automotive-grade PP material injection-molded anti-slip floor |
| Body | Front cover, seat bucket, and body panels are made of automotive-grade PP material injection-molded parts; aluminum alloy roof support columns |

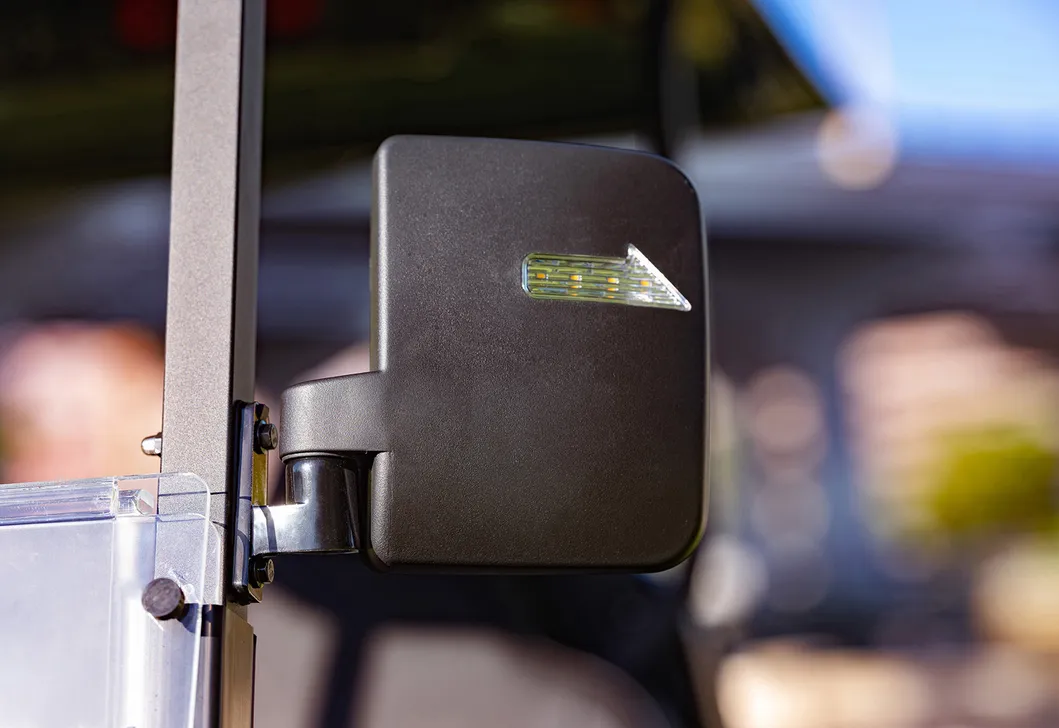

| Rearview Mirrors | Manually adjustable and foldable exterior rearview mirrors on both sides |

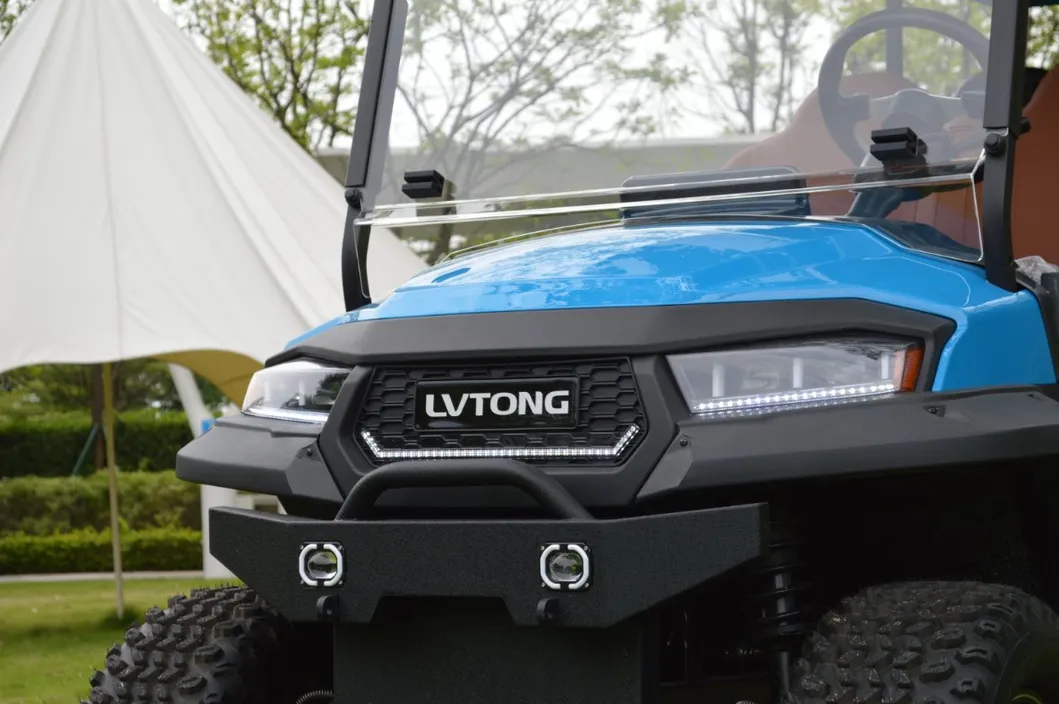

| Lighting Warning System | LED front combination lights (low beam, high beam, turn signals, daytime running lights, position lights) LED rear lights (reverse light, brake light, position light, turn signal); horn, reverse beeper |

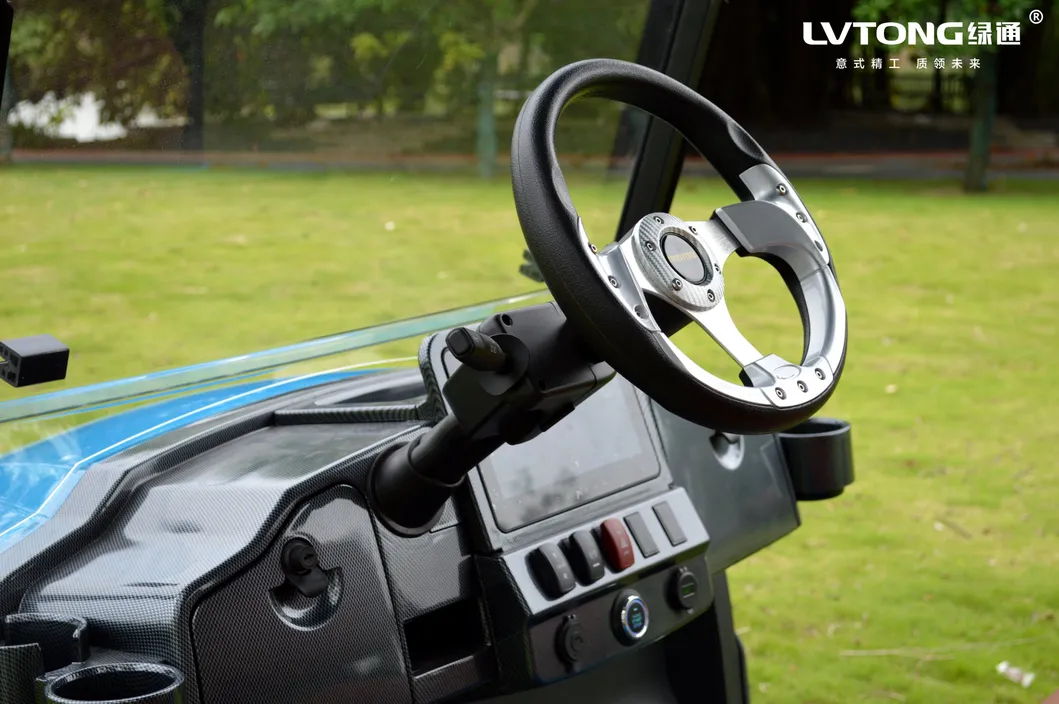

| Dashboard | Injection-molded dashboard, single-arm switch assembly, gear switch, hazard switch, cup holder, Type-C + USB communication port, electronic parking brake switch, one-key start switch (with RKE, PKE remote key) |

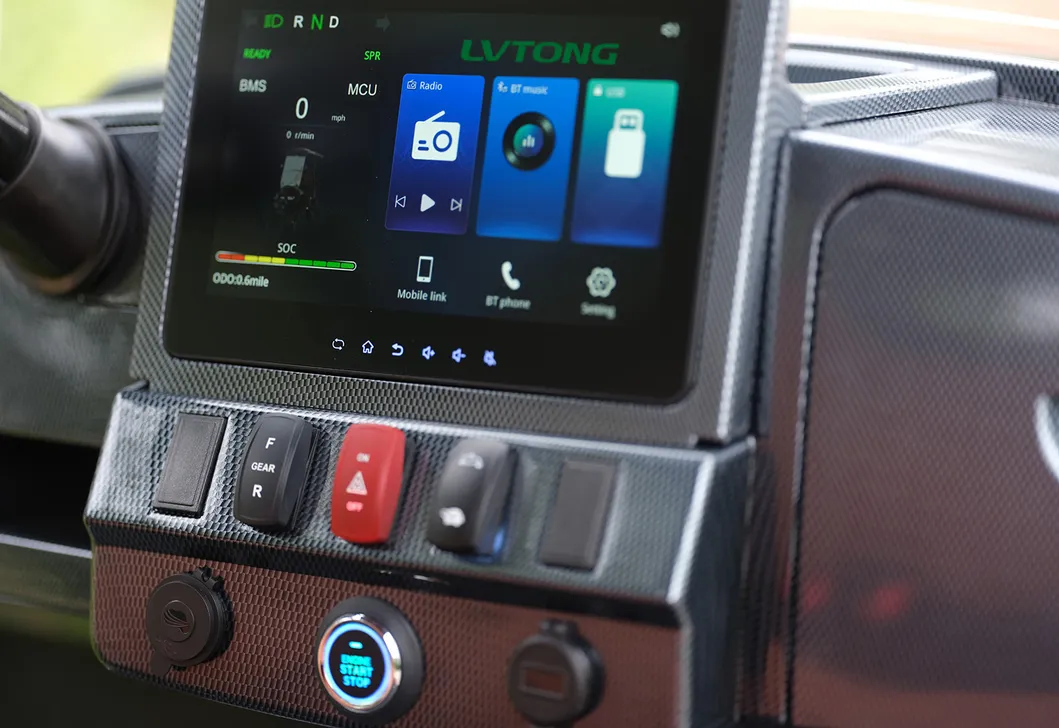

| Multimedia System | 10.1-inch instrument + vehicle system (IP67 waterproof), fault diagnostic information display, Bluetooth phone, radio, music, video, USB playback |
| Steering System | Rack and pinion steering system with automatic clearance compensation; optional electric power steering |
| Brake System | Dual-circuit four-wheel hydraulic braking system, four-wheel disc brakes + EPB electronic parking brake |
| Front Suspension System | MacPherson independent suspension; coil springs + hydraulic shock absorbers |
| Rear Suspension System | Solid rear axle, gear ratio 14:1, coil springs + hydraulic shock absorbers + rear stabilizer bar |
| Tire Size | Special beach bike tire 23 * 10.5-12 12 inch wheel hub |
| Technical Parameters | |
| Dimensions (L x W x H) | 2400 x 1360 x 2030 mm |
| Vehicle Weight (including battery) | 635kg |
| Rated Passenger Capacity | 2 persons |
| Cargo Bed Size | None |
| Max Speed | 25 km/h |
| Cargo Load Capacity | None |
| Driving Range | 80-95 km (on flat ground) |
| Max Climbing Ability | 30% |
| Braking Stability | 1.8m |
| Minimum Ground Clearance | 185mm |
| Hill-hold Capability | 30% |
| Wheelbase | 1690mm |
| Minimum Turning Radius | 3.8mm |
| Track Width | Front 980mm / Rear 1060mm |
| Braking Distance | <6m |
| Energy Consumption per 100km | 8kWh |

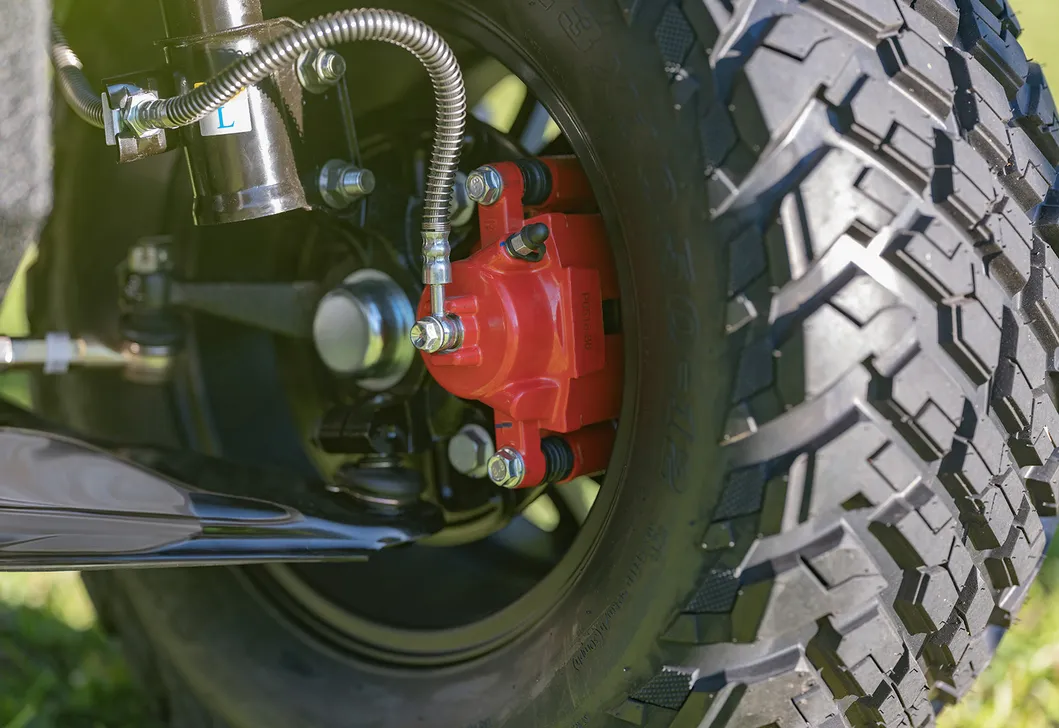

Vehicles boast a sophisticated dual-circuit four-wheel hydraulic braking system, complete with four-wheel disc brakes harmonized with an EPB electronic parking brake. This advanced configuration promises unparalleled braking prowess and a steadfast sense of safety. Regardless of road conditions, revel in a flawlessly smooth and accurate driving experience that inspires confidence.

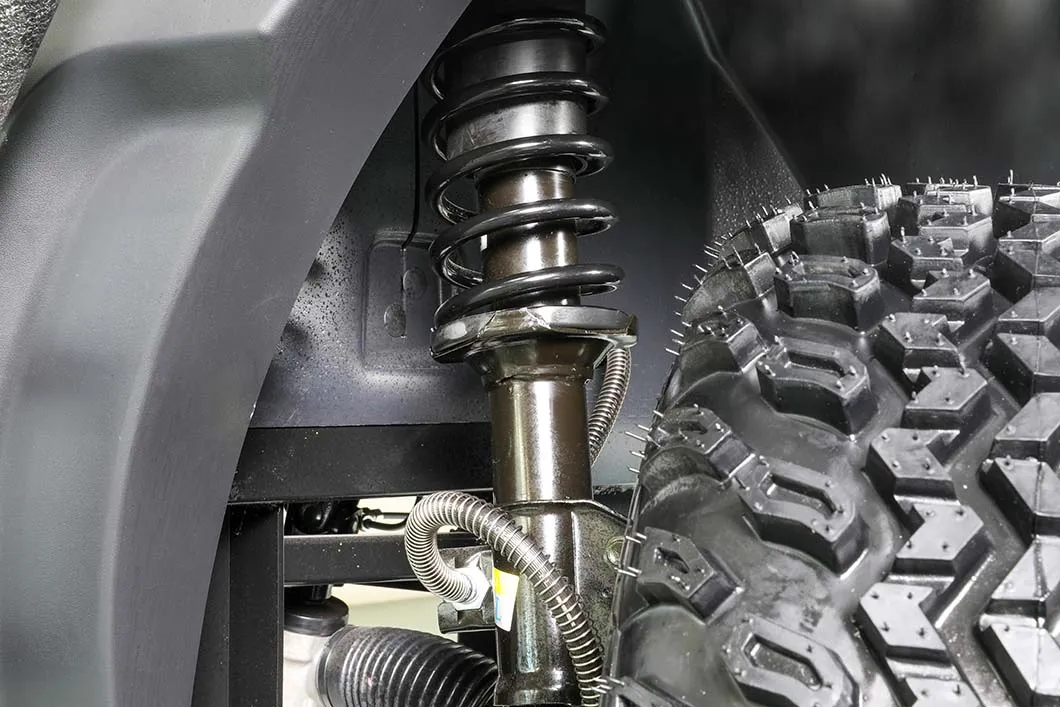

The state-of-the-art MacPherson independent suspension system deftly minimizes road vibrations, ensuring that stability is a constant companion. The coil spring fortifies elastic support, while the tubular hydraulic shock absorber masterfully mitigates impacts, guaranteeing unparalleled comfort and precision in every drive.

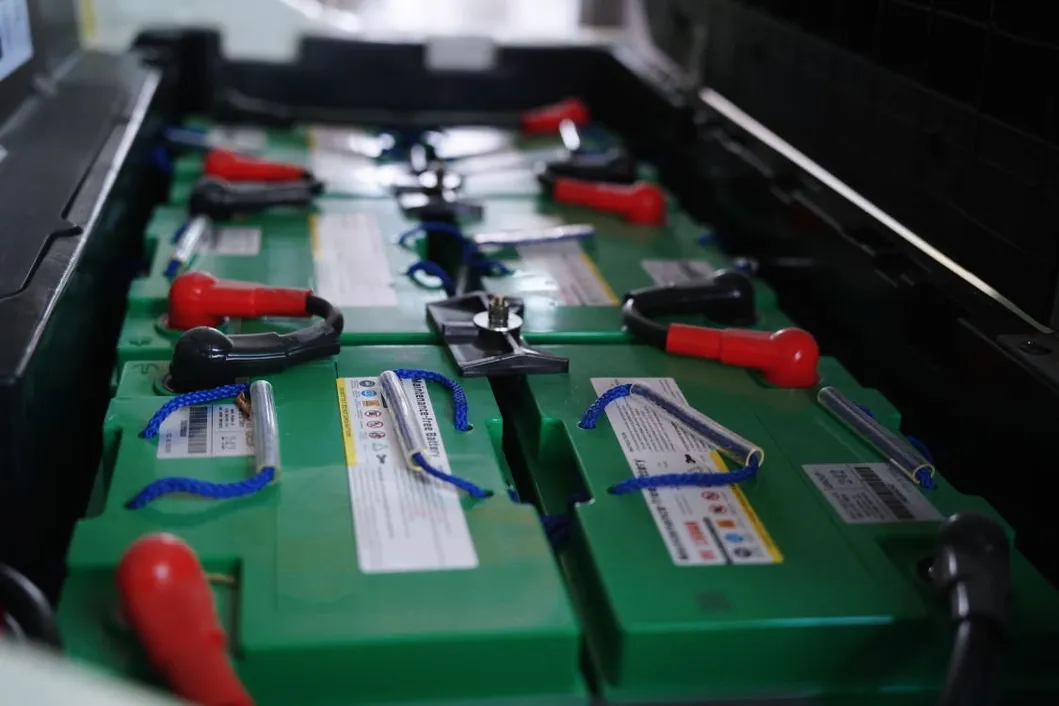

Our innovative maintenance-free battery is engineered with a cutting-edge sealed design, abolishing the need for frequent checks or electrolyte top-ups. This drastically lowers maintenance time and expenses. With its powerful and consistent output, it offers unwavering support for your golf cart, ensuring efficient and reliable performance.

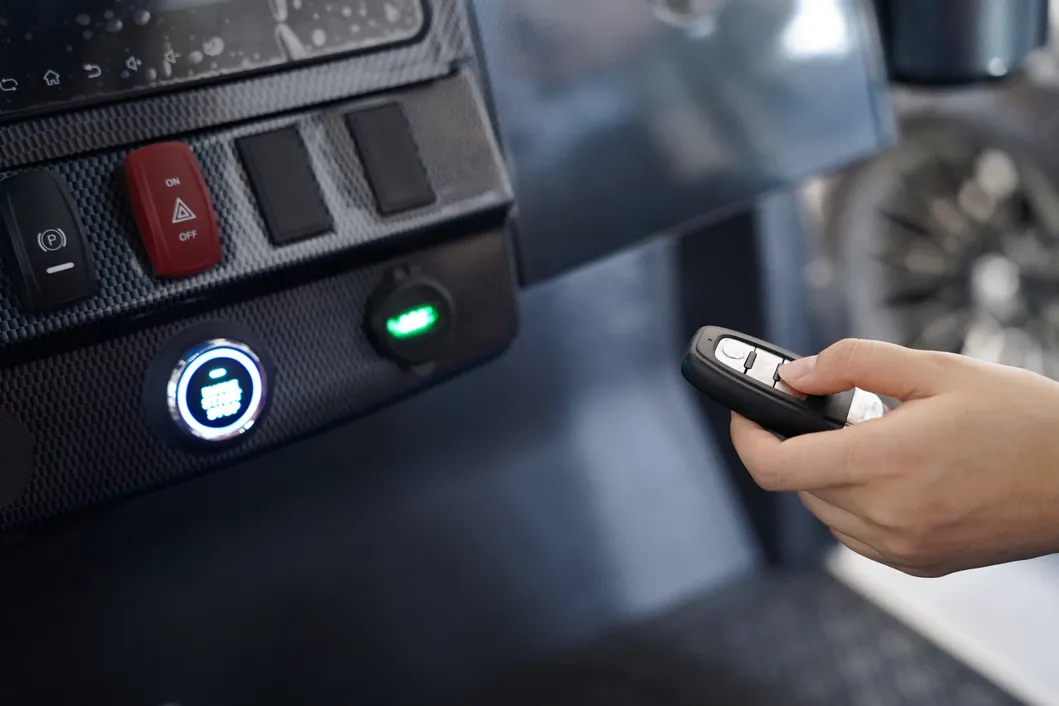

The RKE system empowers you with the ability to lock or unlock your vehicle from afar using a remote key, streamlining security management. The PKE system introduces a contactless sensing feature that intelligently recognizes the key upon your approach, negating manual interventions and enhancing both convenience and safety seamlessly.
On a fresh and invigorating spring day in 2004, the remarkable journey of superior golf carts began.
The brand's inception stemmed from the visionary minds of a group of innovative entrepreneurs. They possessed deep insights into the golf cart landscape, along with boundless aspirations for what lay ahead. Recognizing both challenges and vast opportunities within the market, they clean-heartedly committed to quality and innovation. Together, these pioneers set out to create an unprecedented golf cart enterprise, driven by a steadfast belief that their dedication would yield an unparalleled product, revolutionizing the golfing experience for enthusiasts worldwide.
In the nascent stages of their entrepreneurial journey, the dedicated team toiled with relentless passion within a humble workshop. They persistently refined and perfected their product designs, overcoming innumerable obstacles along the way. Each challenge only solidified their resolve to craft exceptional products. Their perseverance bore fruit swiftly, as these golf carts captivated the market with their superior performance and stunning aesthetics, leading to an avalanche of orders.

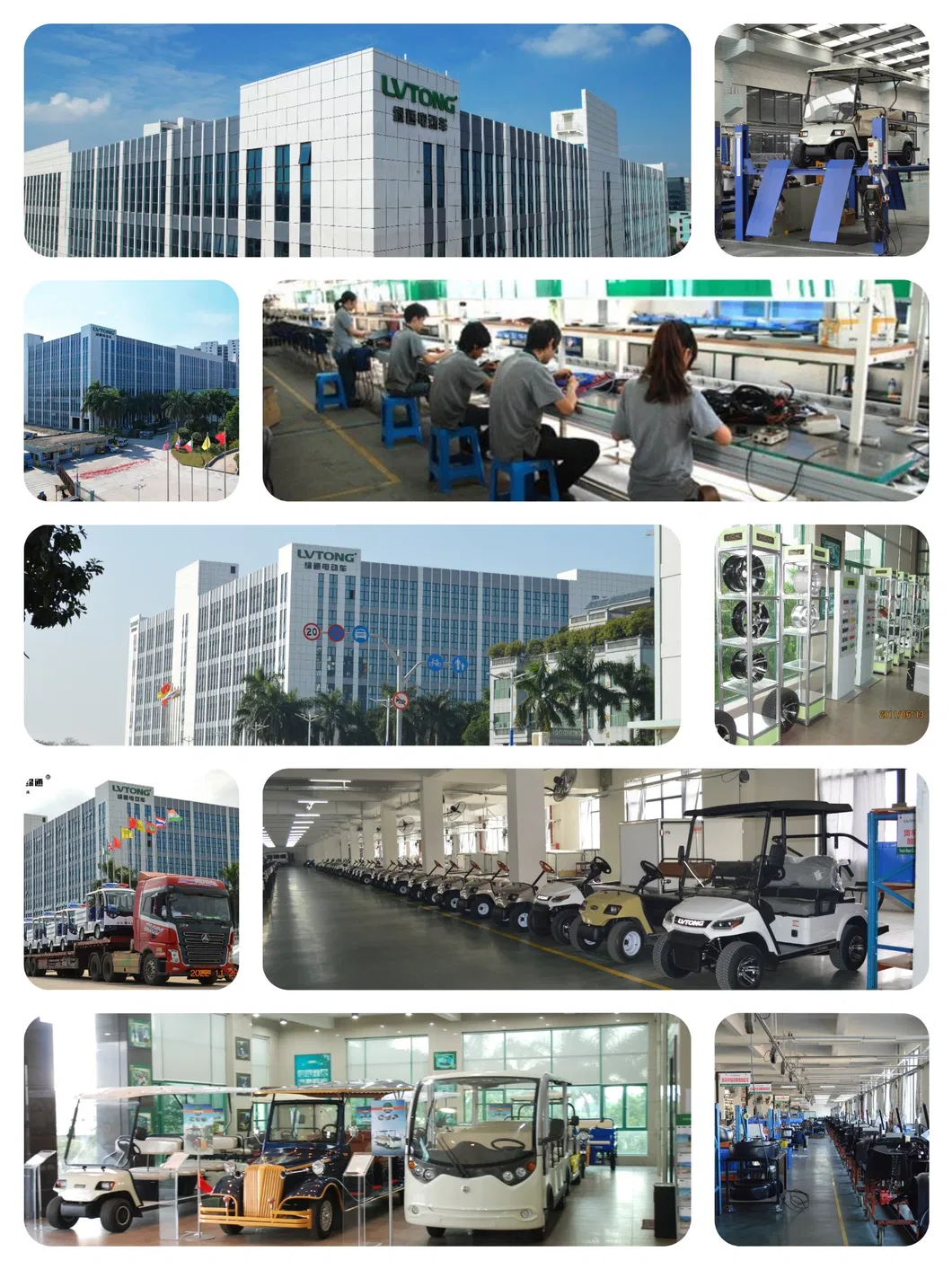

Today, the brand stands tall, having navigated through 20 years of dynamic evolution, transforming from a fledgling startup into a trailblazer of the industry. Nestled in a vibrant industrial park, the expansive headquarters sprawls over more than 150,000 square meters. Annually, it produces tens of thousands of vehicles, including golf carts, sightseeing cars, patrol cars, vintage vehicles, and electric trucks. These products reach a global audience, being exported to diverse regions such as the European Union, the United States, Canada, Russia, Japan, and South Korea.
The brand has achieved remarkable milestones, having secured comprehensive certifications under ISO9001 and ISO14001. It has also been honored as a model unit within esteemed credit enterprise certification systems. With a portfolio boasting over 100 high-tech products and numerous national patents, these offerings have been designated as famous brand products. Additionally, the brand provided specialized vehicles for landmark utility projects. The brand's cutting-edge research and development capabilities, combined with its immense production strength, have established a formidable influence and sterling reputation within the industry.
Over the past twenty years, the brand has consistently earned the trust of its clientele and garnered accolades from industry peers, driven by a spirit of perpetual innovation and a commitment to superior service. In 2023, the brand reached a pivotal milestone by going public, unveiling a visionary new corporate ethos. The mission is to champion green, sustainable development and ascend as a leader in the burgeoning electric vehicle sector.
We are passionately dedicated to delivering unparalleled services to our esteemed partners, fostering an environment where collaboration thrives, and forging an extraordinary win-win cooperation experience. By harnessing the power of exhaustive market research and relentless technological innovation, we tailor bespoke solutions that cater precisely to the distinct needs of each partner. Our focus is steadfastly on nurturing enduring and robust partnerships, uniting through shared resources, product exchanges, and the exploration of new markets to achieve mutual prosperity and harmonious success. We are excited about the prospect of embarking on this journey together with you, crafting a brighter, more prosperous future.
