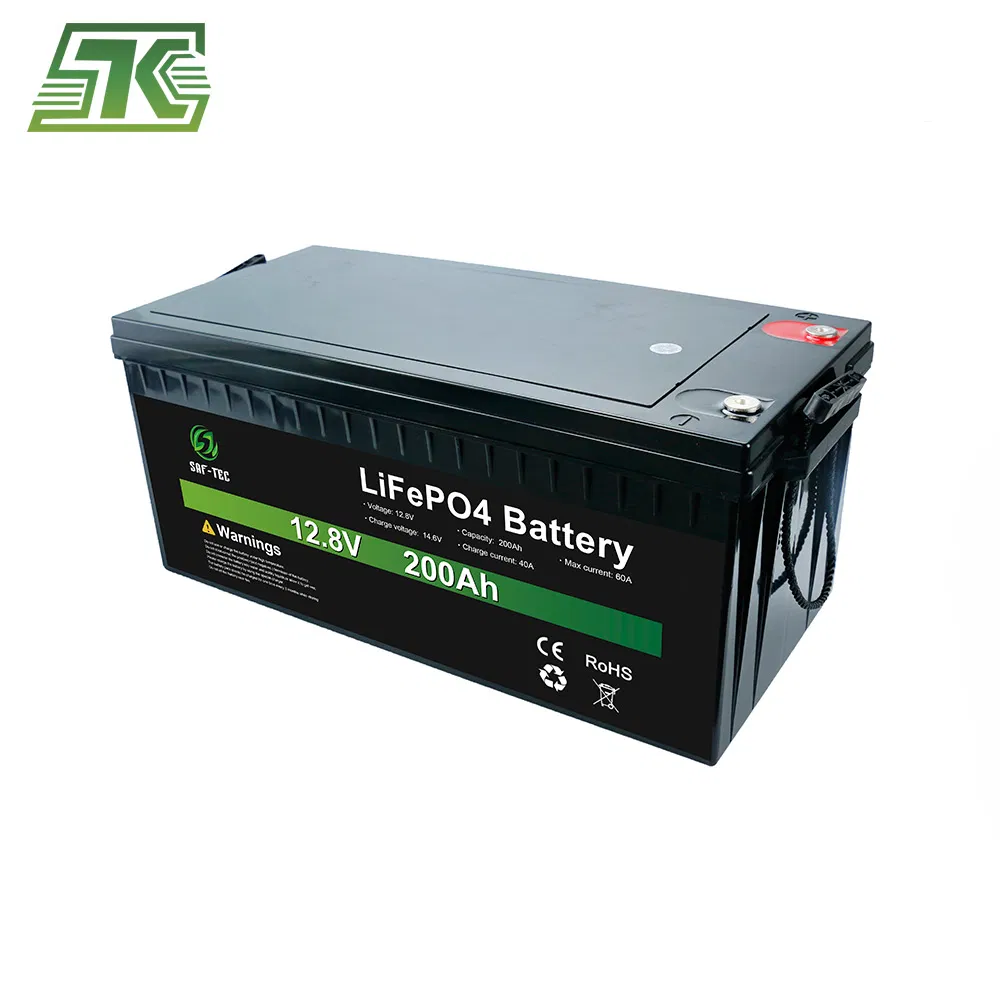

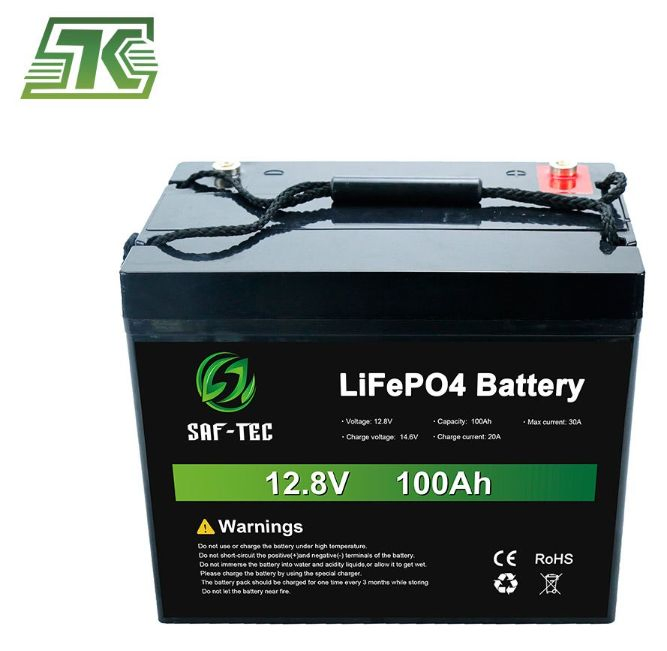

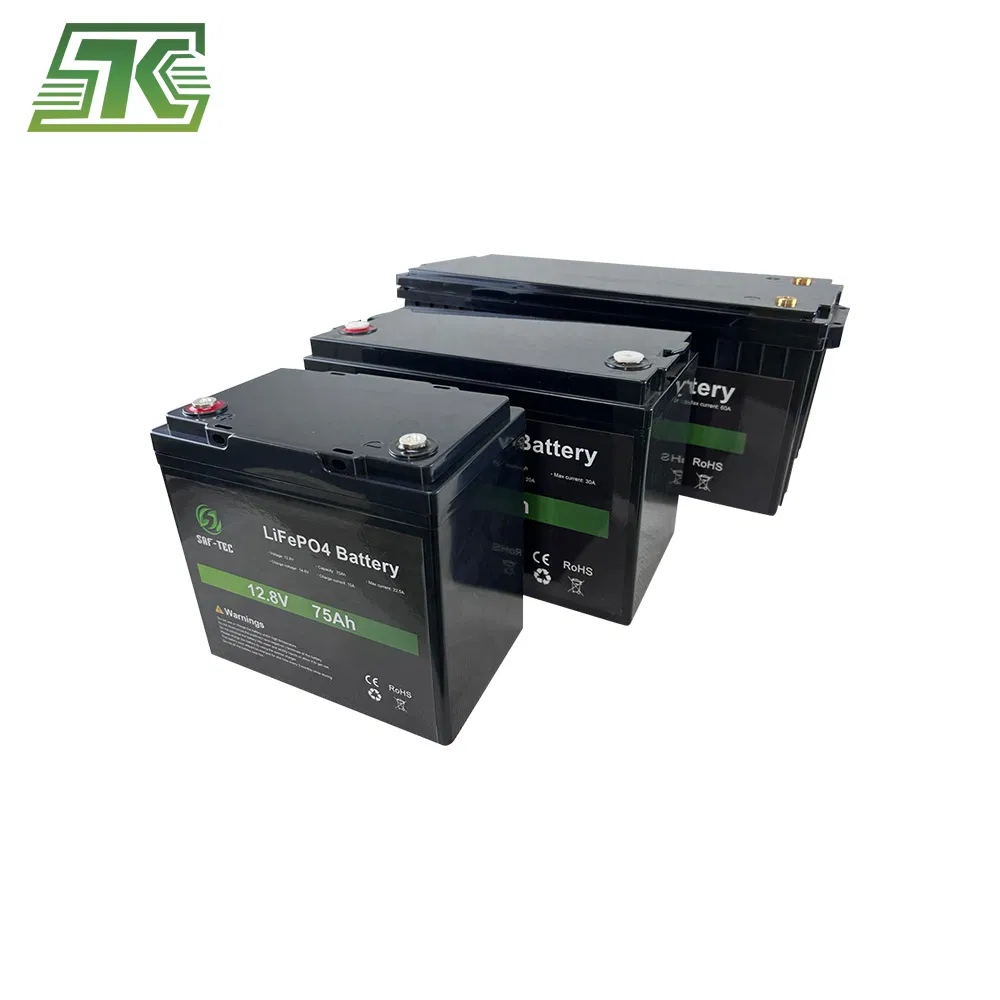

12V 12.8V 48V 50ah 75ah 100ah 120ah 150ah 200ah 260ah Solar Energy Storage Lithium UPS Lithium Ion LiFePO4 Battery Home System Golf Cart Fishing Boat Agv RV

1 / 5

12V 12.8V 48V 50ah 75ah 100ah 120ah 150ah 200ah 260ah Solar Energy Storage Lithium UPS Lithium Ion LiFePO4 Battery Home System Golf Cart Fishing Boat Agv RV

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

SizeMedium

Application 1Solar Energy System

Application 2Electric Wheelchair

Application 3Emergency Systems

Application 4UPS/EPS Systems

Application 5Medical Equipment

BMSBattery Management System

Capacity8ah-240ah Optional

OEM/ODM ServiceSupport

Hybrid Inverter CompatibleDeye/Goodwe/Sofar/Growatt

CertificatesCE/9001/14000/RoHS/Un38.3/SGS

PackageCarton or Wooden Box with Pallet

MOQ1PCS

KeywordsLiFePO4 Battery Pack/Solar Battery

MaterialABS

Transport PackageCarton

Specification12.8V 150Ah

OriginChina, Zhejiang

HS Code8507

Product Presentation

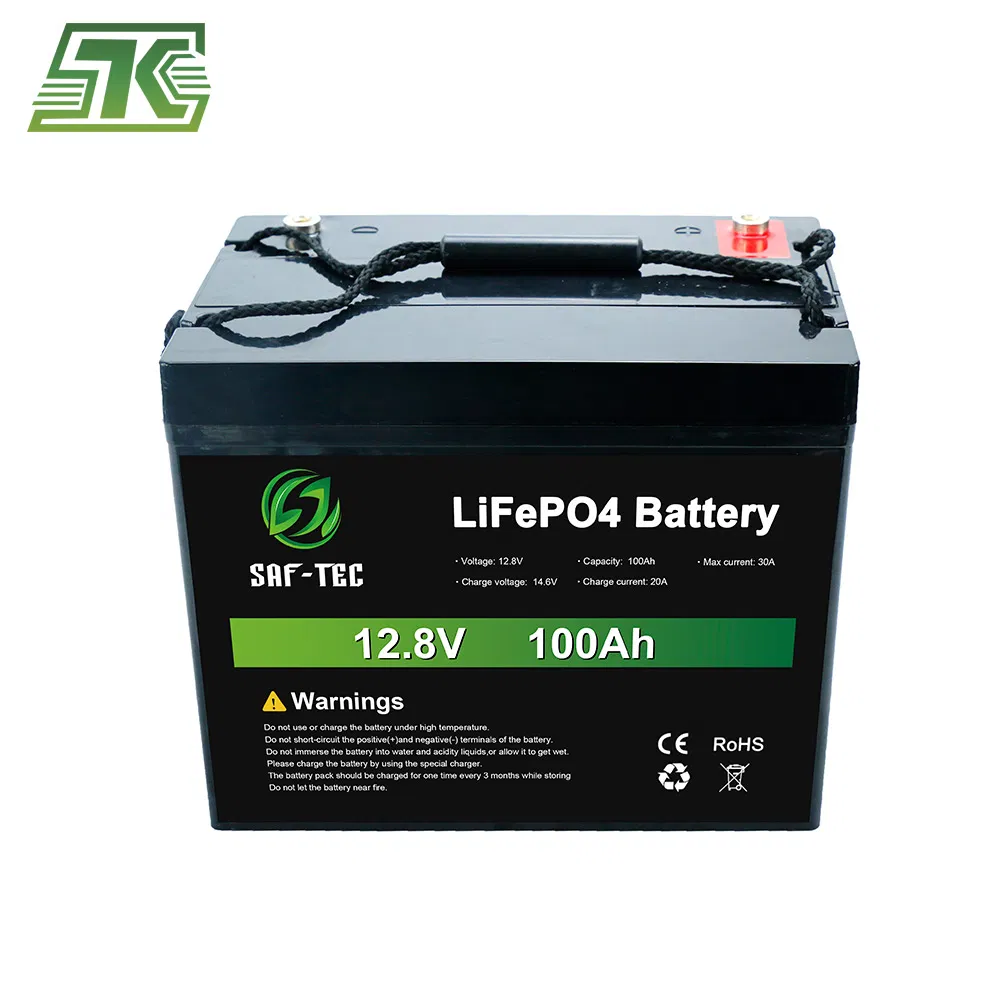

Solar Energy Storage Lithium UPS Battery

The Solar Storage Battery is an advanced energy storage solution that offers powerful performance, intuitive control and reliable efficiency. With up to 12kWh of solar energy storage capacity, this battery is an excellent choice for any renewable energy system. It also provides a dependable power source when the grid is not available, making it a great choice for off-grid living, emergency backup and emergency preparedness.

The Solar Storage Battery boasts a number of advantages that make it appealing. It has a long life expectancy of up to 10 years before needing to be replaced, and its sophisticated charging and discharging systems run at optimum efficiency while providing the highest levels of safety. In addition, its intuitive control system makes it easy to use and manage, allowing you to adjust your stored power as needed.

When it comes to features, the Solar Storage Battery is packed with plenty of useful options. It boasts a range of power management features to help maximize its usefulness, as well as advanced technology to ensure reliable and efficient operation. Additionally, its user-friendly control system makes it easy to maintain, helping you to enjoy reliable power from the battery for years to come.

The Solar Storage Battery is a cost-effective, reliable and efficient energy storage solution for any environment where clean, affordable, and unlimited power is desired. With its powerful performance, intuitive control system and reliable efficiency, it is an ideal choice for powering your home or business.

Solar Storage Battery Dimensions and System Layout

Product Specifications

Parameters	STC12-200M	STC12-6M	STC12-12M	STC12-18M
Voltage	12.8V	12.8V	12.8V	12.8V
Capacity	204Ah	6Ah	12Ah	18Ah
Dimension	522x239x218 mm	152x65x96 mm	150x99.5x99.7 mm	181x78x183 mm
Weight	17.5kg	0.752kg	1.336kg	2.17kg
Charge Current	40A	1.2A	2.4A	3.6A
Max Charge Current	60A	1.8A	3.6A	5.4A
Max Discharge Current	60A	1.8A	3.6A	5.4A
Charge Voltage	14.6V	14.6V	14.6V	14.6V

Parameters	STC12-24M	STC12-50M	STC12-75M	STC12-100M	STC12-150M
Voltage	12.8V	12.8V	12.8V	12.8V	12.8V
Capacity	24Ah	50Ah	75Ah	100Ah	150Ah
Dimension	165x125.5x175 mm	229x138x208 mm	260x168x209 mm	328x172x230 mm	483x170x240 mm
Weight	2.854kg	6.588kg	8.338kg	9.428kg	17.78kg
Charge current	4.8A	10A	15A	20A	30A
Max charge current	7.2A	15A	22.5A	30A	45A
Max discharge current	7.2A	15A	22.5A	30A	45A
Charge voltage	14.6V	14.6V	14.6V	14.6V	14.6V

Deep Cycle Solar Battery Charging Performance

Key Features & Applications

Battery Advantages

Long service life
High discharge rate
Low self-discharge rate
Deep cycle & Super cycling ability
Excellent high current performance
Safe and reliable with no memory effect
Flexible installation variety
High temperature & vibration resistance
Wide operating temperature range

Main Applications

Electricity & Communication Systems
Solar & Wind Energy Storage Systems
Uninterrupted Power Supply (UPS) & EPS Systems
Emergency Lighting Systems & Small Lamps
Control Equipments & Medical Equipment
Railway, Aerospace and Navigation
Electric Vehicles (EV)
Communication Systems & Inverters

Suitable for: UPS battery / Solar Battery / Deep cycle battery / VRLA battery / Sealed Lead Acid battery / Lead Acid Battery / Emergency Battery / 12v Battery / Backup battery / Sealed Battery / Emergency Light Battery / Valve Regulated Lead Acid battery / Storage battery / rechargeable battery / Uninterrupted power battery / EPS / electric vehicle battery / wind battery / Communication System / Inverter battery.

Other Products

Frequently Asked Questions (FAQ)

What are the primary applications of these LiFePO4 batteries?

These batteries are widely compatible and are ideal for Solar Energy Systems, Uninterrupted Power Supply (UPS/EPS) Systems, Electric Wheelchairs, Medical Equipment, Emergency Lighting, and Communication Systems.

What is the lifespan of the Solar Storage Battery?

The battery is designed with premium materials to ensure high cycling capability, providing a long service life expectancy of up to 10 years.

Which hybrid inverters are compatible with these batteries?

They are compatible with major hybrid inverter brands, including Deye, Goodwe, Sofar, and Growatt.

What quality and safety certifications do the batteries possess?

The batteries are manufactured under strict standards and hold CE, ISO9001, ISO14000, RoHS, UN38.3, and SGS certifications.

Do these batteries have a memory effect?

No, these batteries have no memory effect, which means they can be charged and discharged repeatedly at any state of charge without reducing performance.

Are OEM/ODM customization options supported?

Yes, OEM/ODM services are fully supported, allowing customization of capacity (ranging from 8Ah to 240Ah) and specifications to suit diverse system requirements.
