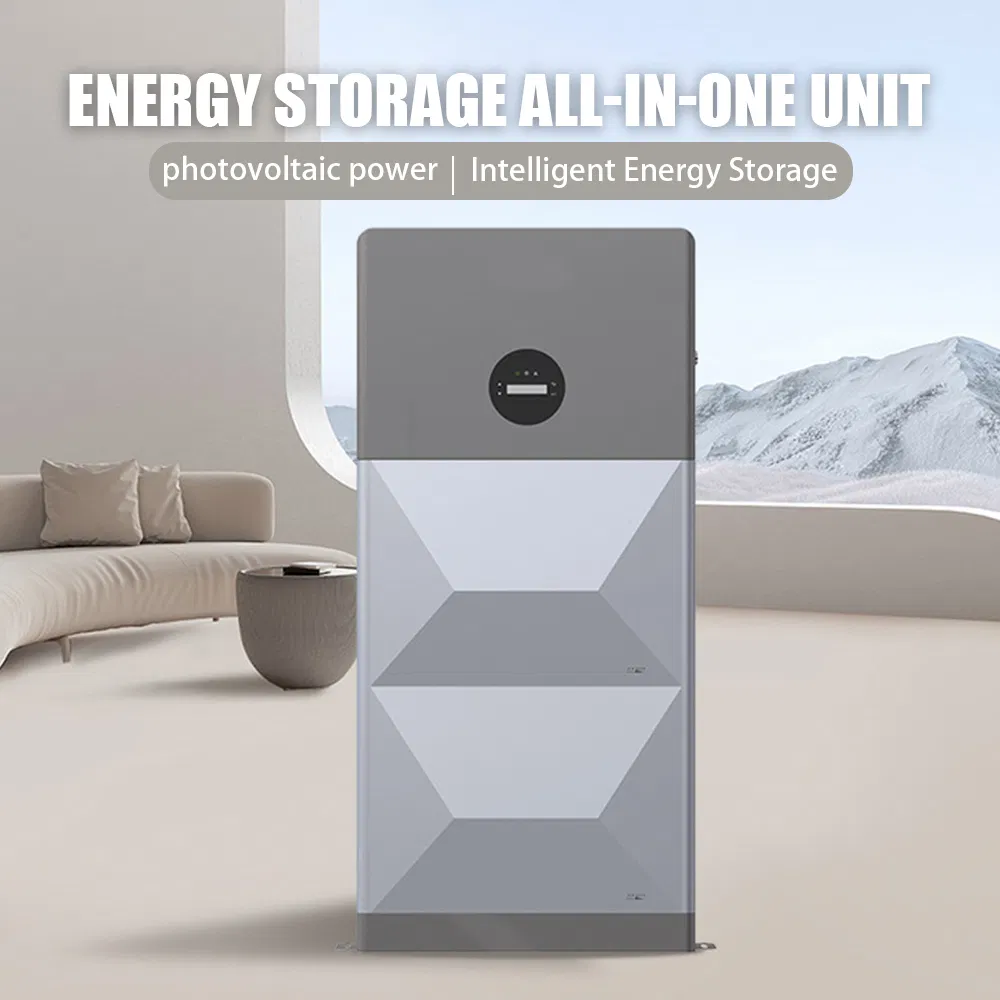

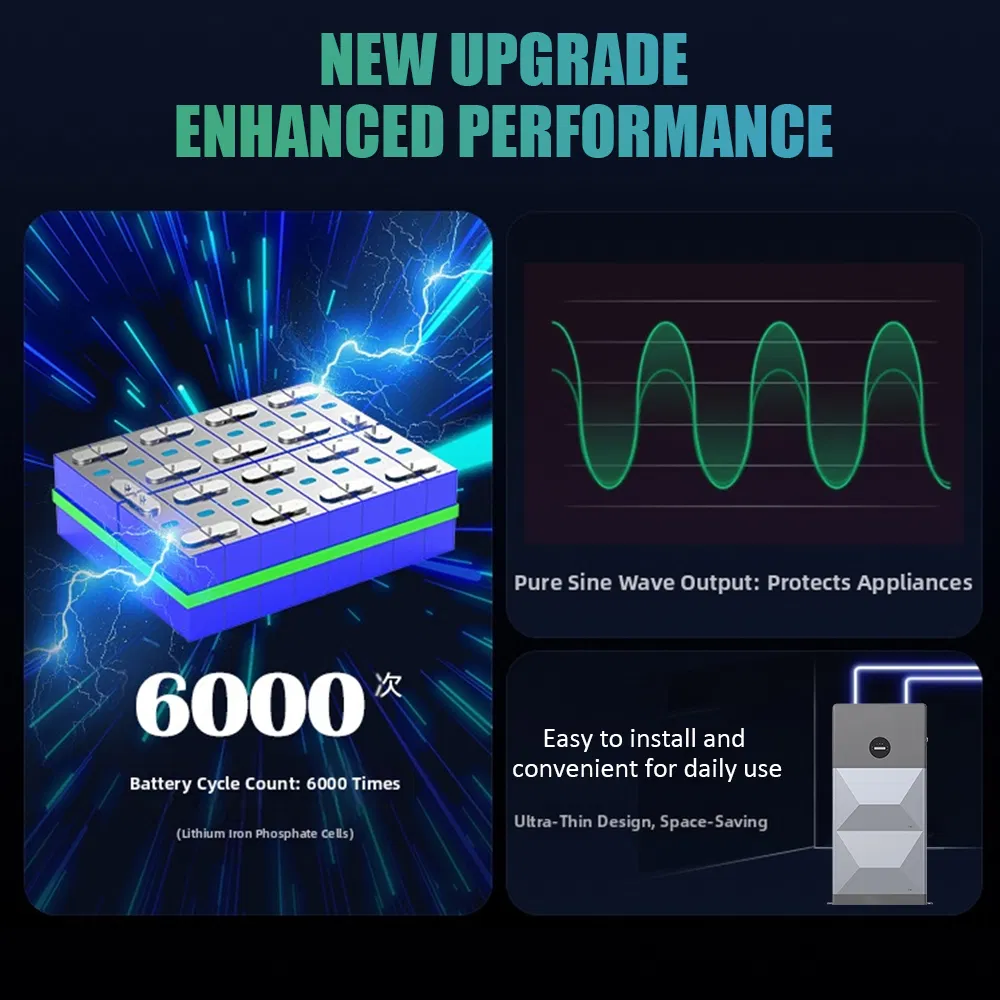

Modular Solar Home Power Wall System Inverter Integrated 10kwh Energy Storage System with APP Monitoring

Customization: Available
Weight: 88kg
Warranty: 5 Years

Product Description

Overview
Product Description
Specification
Company Profile
Certifications
Packaging & Shipping
FAQ
Overview
Basic Info.
Model NO. AP-LS-10
Cycle Life 6000 Cycles
Nominal Capacity 10.24kwh
Cell Type LiFePO4
Nominal Voltage 51.2V
Rated Capacity 200ah
Transport Package Wooden Pallet
Specification 600*228*1280mm
Origin China
HS Code 8504409999
Production Capacity 50000 Sets/Year
Packaging & Delivery
Package Size 63.00cm * 25.00cm * 130.00cm
Package Gross Weight 88.000kg
Lead Time 15 days (1 - 10 Sets)
To be negotiated ( > 10 Sets)
Product Description
Modular Solar Home Power Wall System Inverter Integrated 10kWh Energy Storage System with APP Monitoring

This advanced all-in-one energy storage system integrates a high-efficiency inverter and an intuitive touch LCD screen into a single, compact unit. Engineered for both off-grid and grid-tied (hybrid) applications, it delivers a complete, plug-and-play solution for whole-home backup and solar self-consumption.

Core Features & Advantages:
  • Integrated Hybrid Design: Features a built-in inverter and management system, simplifying installation and providing seamless operation in both grid-connected and standalone modes.

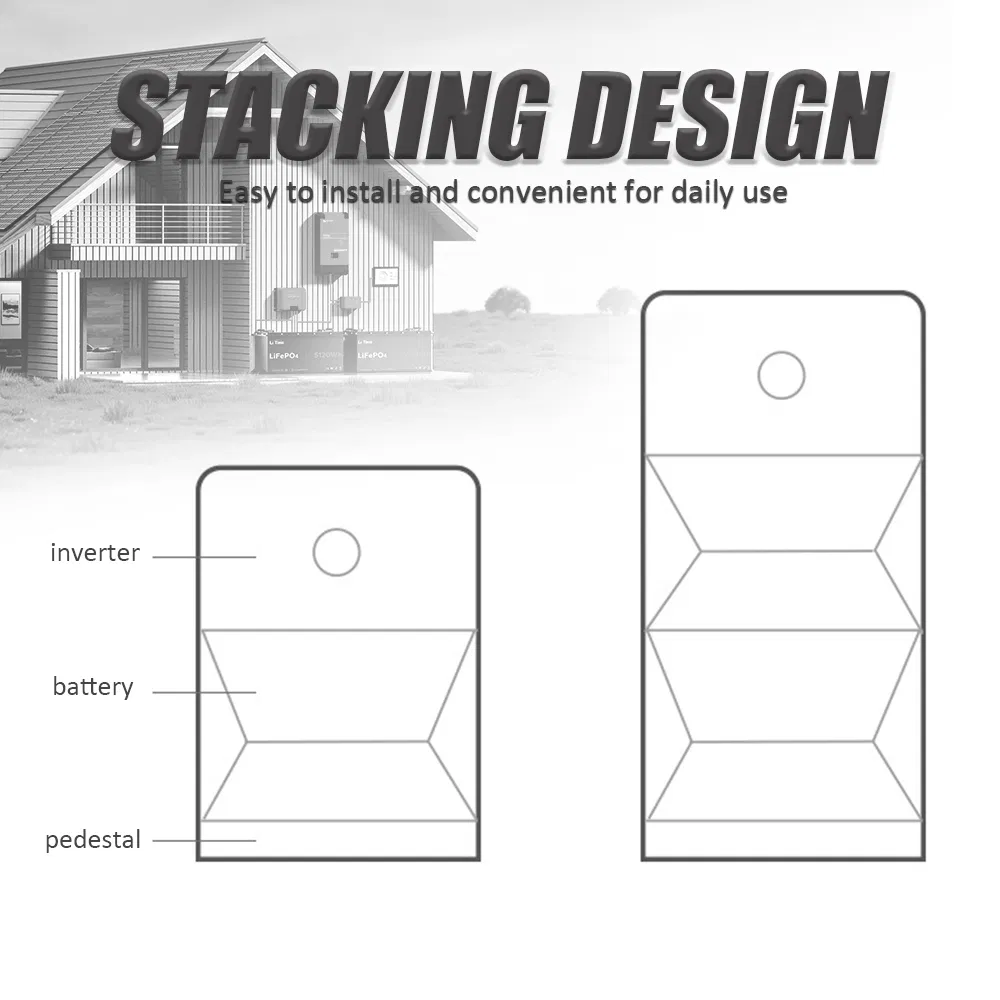

  • Scalable Power: Supports expansion through parallel connection of up to 4 units, allowing for flexible capacity upgrades to meet growing energy demands.
  • Robust & Durable: Built with long-life LiFePO4 battery cells, active balancing BMS for optimal performance, and a high-protection IP65 / C4-rated enclosure capable of withstanding harsh environmental conditions.
  • Intelligent Control: The user-friendly touchscreen interface provides real-time monitoring and control over energy flow, system status, and operational modes.
Ideal Application:

Perfect for residential energy storage, this system offers a reliable, expandable, and all-in-one answer to achieving energy independence, reducing electricity costs, and ensuring power security for your household.

Specification
Model AP-LS-10 AP-LS-15
Battery Module 2 3
Battery Pack Model 51.2V 100Ah 51.2V 100Ah
Cell Type LiFePO4 LiFePO4
Total Energy Capacity 10.24kWh 15.36Kwh
Total Available Power 10kWh 15Kwh
Cycle Life ≥6000/0.5C ≥6000/0.5C
Designed Lifespan ≥10 Years ≥10 Years
Operating Voltage Range 43.2V-58.4V 43.2V-58.4V
Max Charge/Discharge Current 80A 80A
Communication CAN/RS485 CAN/RS485
Dimensions 600*228*1280mm 600*228*2120mm
Photovoltaic Input Parameters
Max Input Power 9kW(HL6K-ASL)/550V
MPPT Operating Voltage Range 80-500V
MPPT Routes 2
Max Input Current 18.5A+18.5A
Max Short-circuit Current 26A+26A
System Efficiency 97%
Grid End Parameters
Nominal Output Power 6kW(HL6K-ASL)
Max Output Current 28A
Max Input Power 6kW
Grid Voltage Range 220-240VAC
Grid Rated Frequency 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Load End Parameters
Off-grid Instantaneous Power 9kVA
Off-grid Rated Power 6kVA
Load Rated Voltage 220V/230V
Load Frequency 50/60Hz
Basic Parameters
Operating Temperature Range -20℃—60℃
Operating Altitude <4000m
Noise Index <25dB
Protection Level IP65/C4
Relative Humidity Range 0—100%
Grid Connection Standards According to the local policy

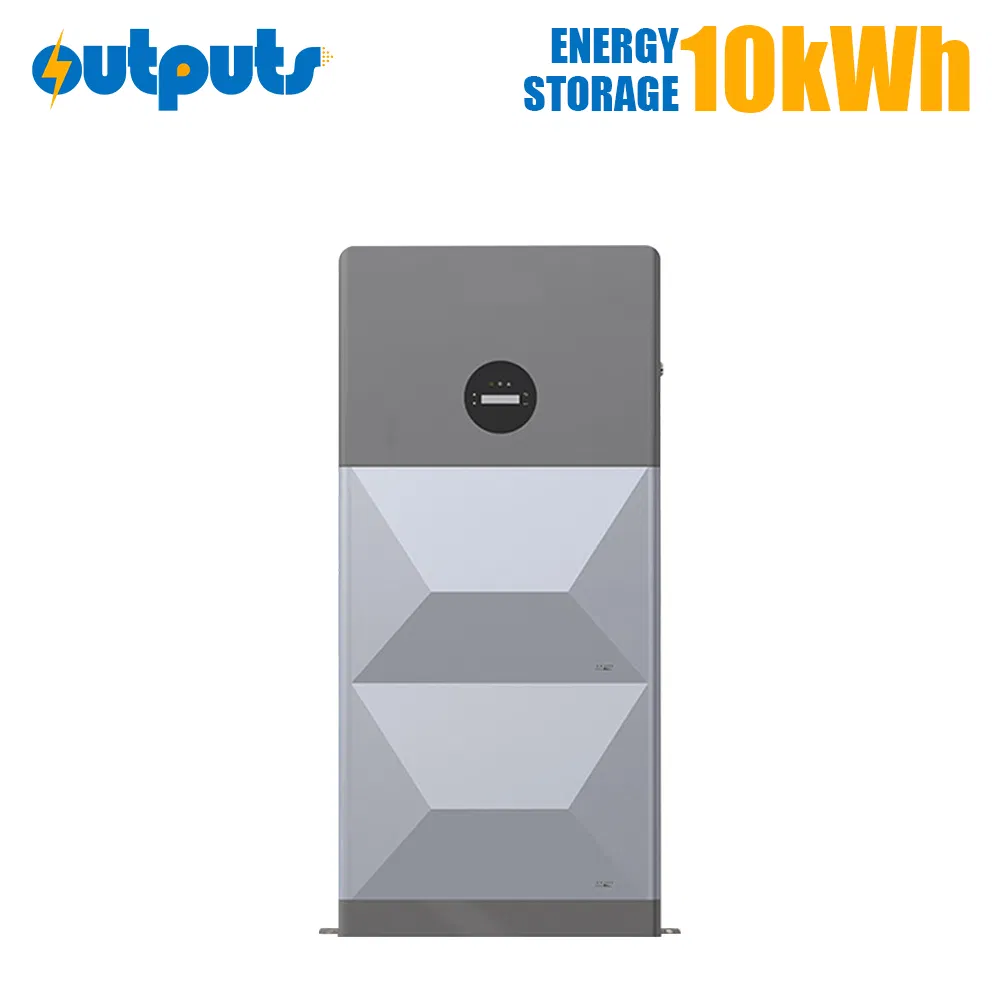

Modular Solar Home Power Wall System 1

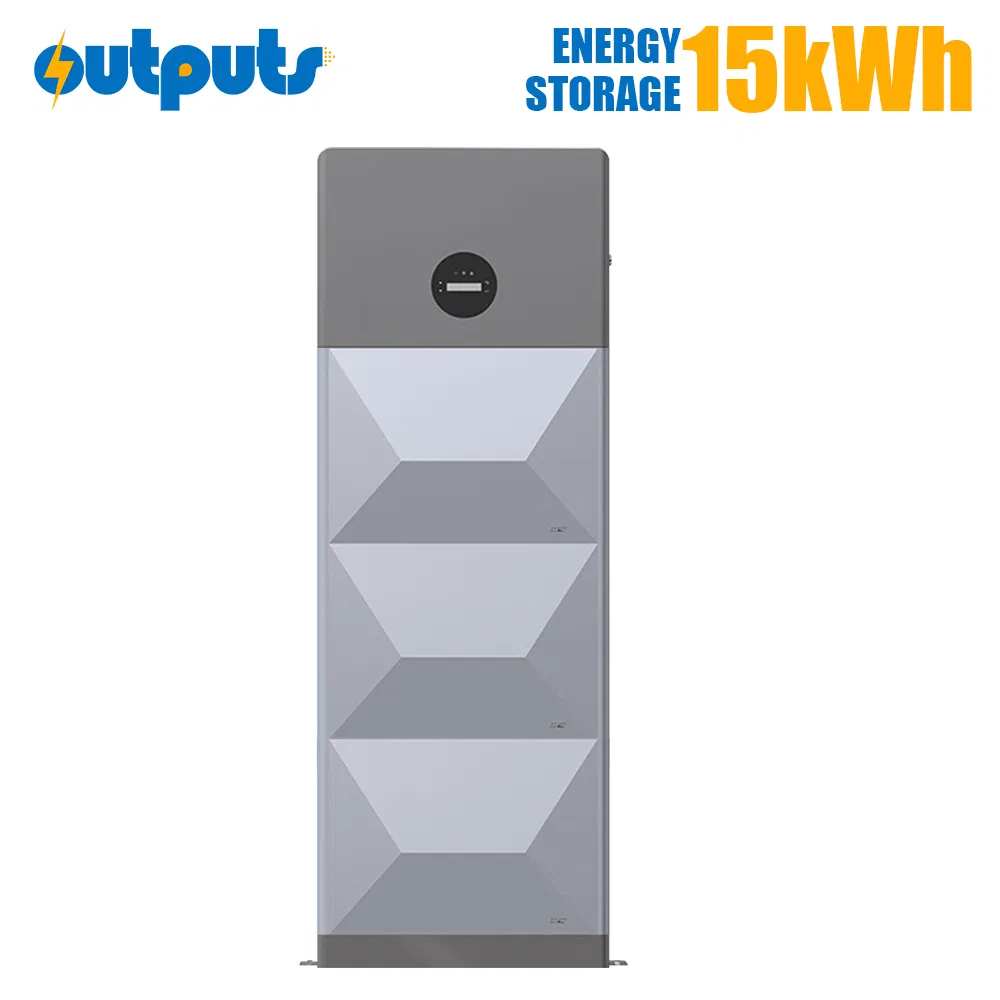

Modular Solar Home Power Wall System 2
Modular Solar Home Power Wall System 3

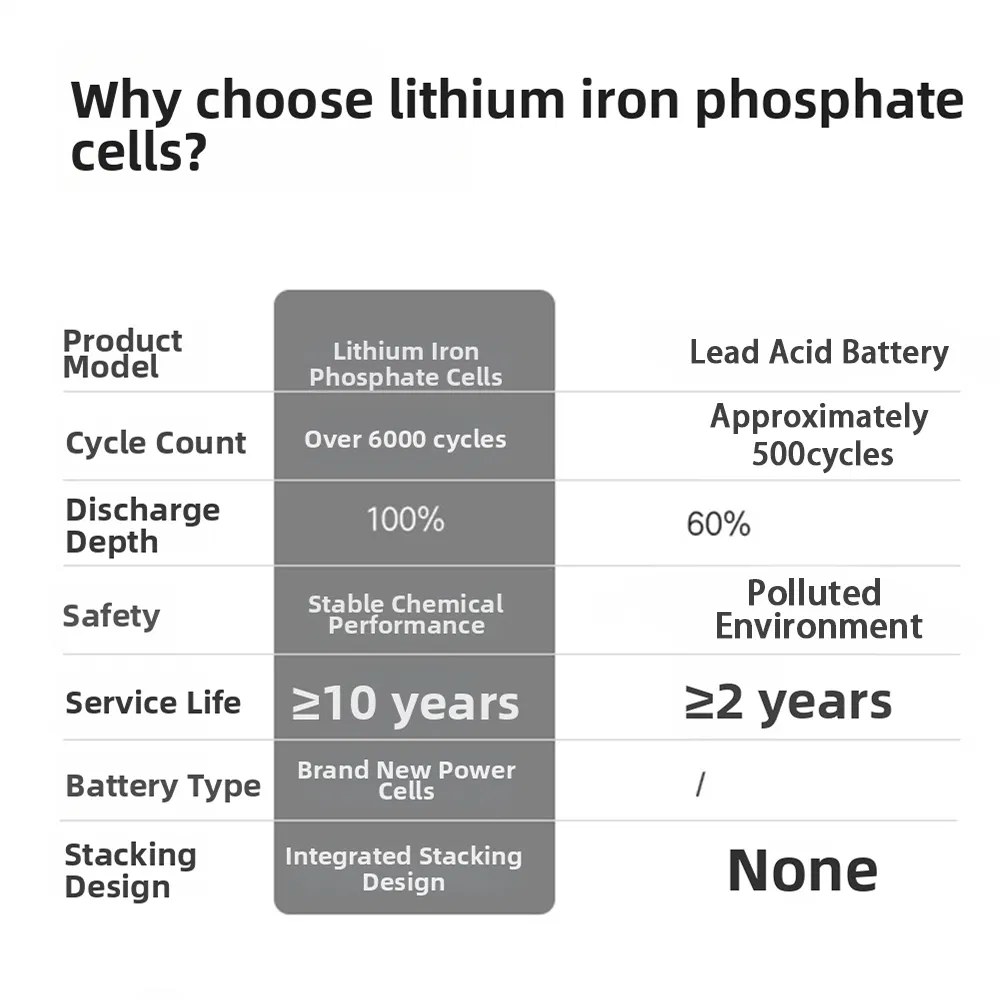

Modular Solar Home Power Wall System 4
Modular Solar Home Power Wall System 5
Modular Solar Home Power Wall System 6
Modular Solar Home Power Wall System 7
Modular Solar Home Power Wall System 8
Modular Solar Home Power Wall System 9

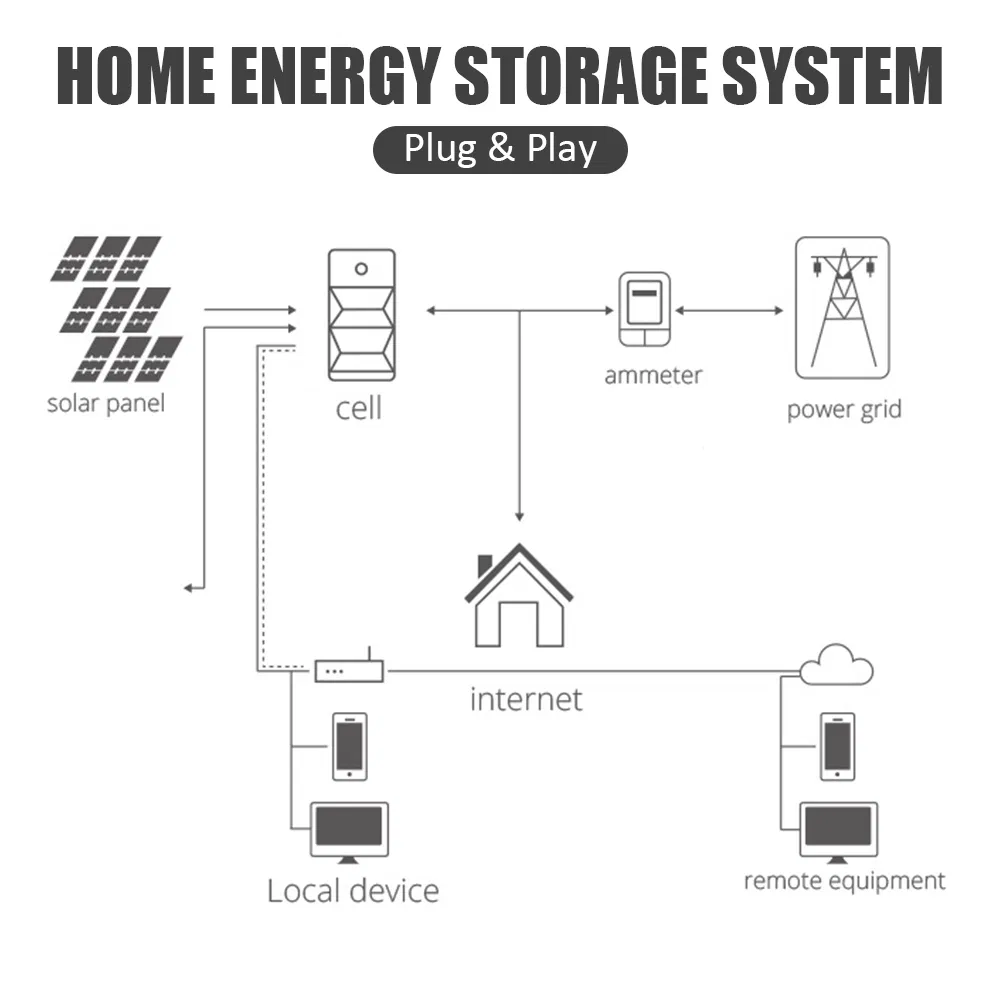

Modular Solar Home Power Wall System 10
Company Profile
About Us

We stand as a professional and innovative manufacturer dedicated to providing comprehensive lithium battery solutions. We specialize in OEM and ODM services, transforming our clients' concepts into reliable, high-performance power products. Our core mission is to empower businesses and households with safe, efficient, and customizable energy storage systems, built on a foundation of technical expertise and a steadfast commitment to quality.

Our capabilities span the entire value chain of energy storage. We begin at the fundamental level, supplying a diverse range of high-quality battery cells, including cylindrical, lithium polymer (Li-Po), and LiFePO4. We then expertly integrate these cells into custom battery packs and modules, tailored to specific voltage, capacity, form factor, and application requirements. Furthermore, we design and manufacture complete, intelligent Home Energy Storage Systems (ESS) that seamlessly integrate with solar power to offer households energy independence, backup security, and significant cost savings.

Quality and reliability are embedded in every stage of our process, from rigorous raw material screening and automated precision manufacturing to exhaustive testing protocols. We ensure every product meets international safety and performance standards. Our partnership extends beyond delivery; we offer robust technical support, flexible warranty policies, and dedicated after-sales service to guarantee total customer satisfaction and long-term system performance, making us a trusted and collaborative partner for your energy needs.

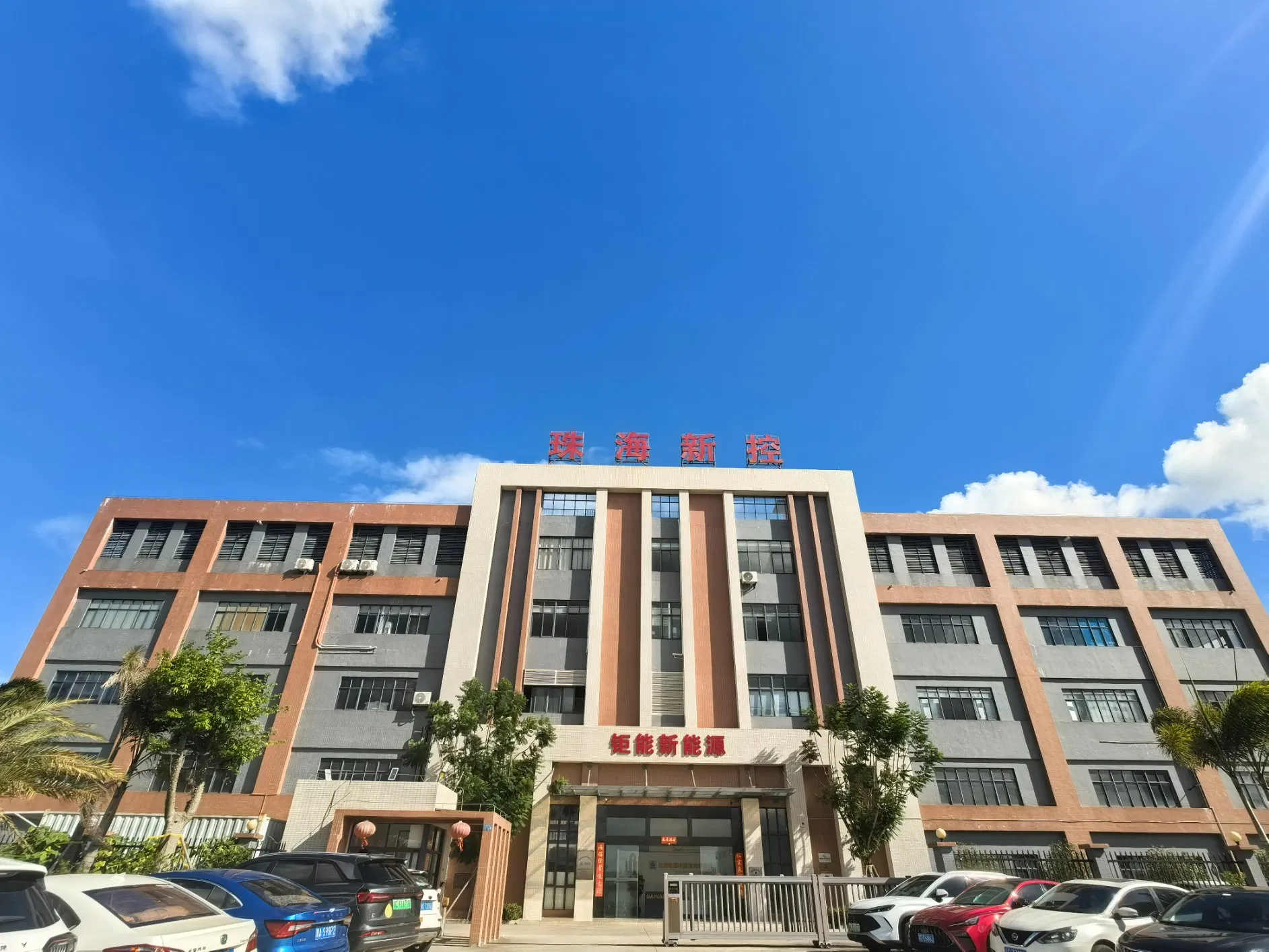

Manufacturing Facility 1

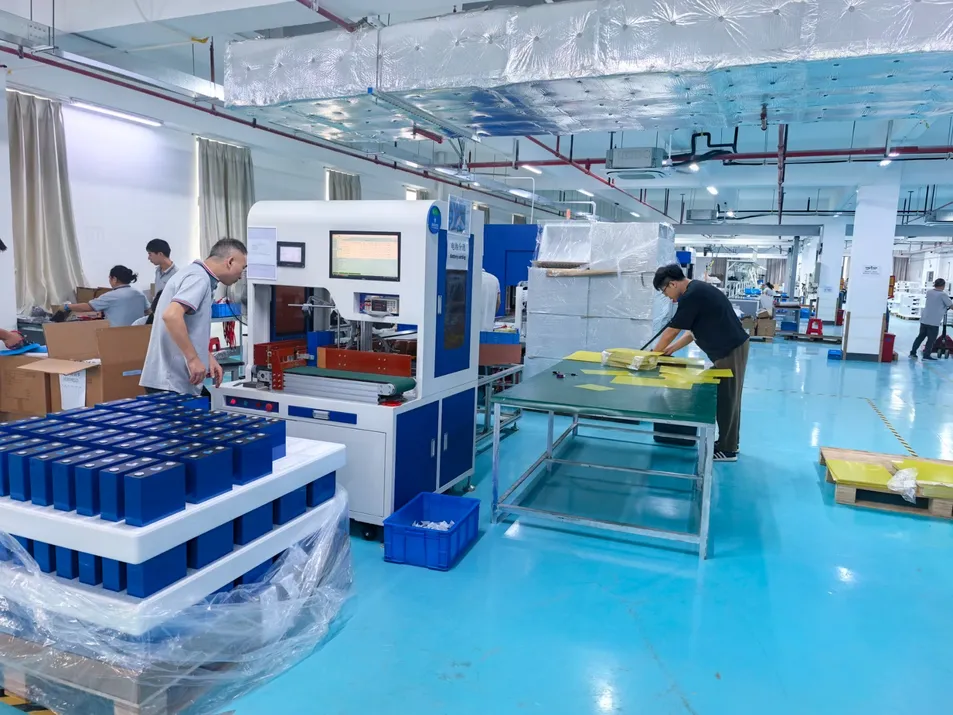

Manufacturing Facility 2

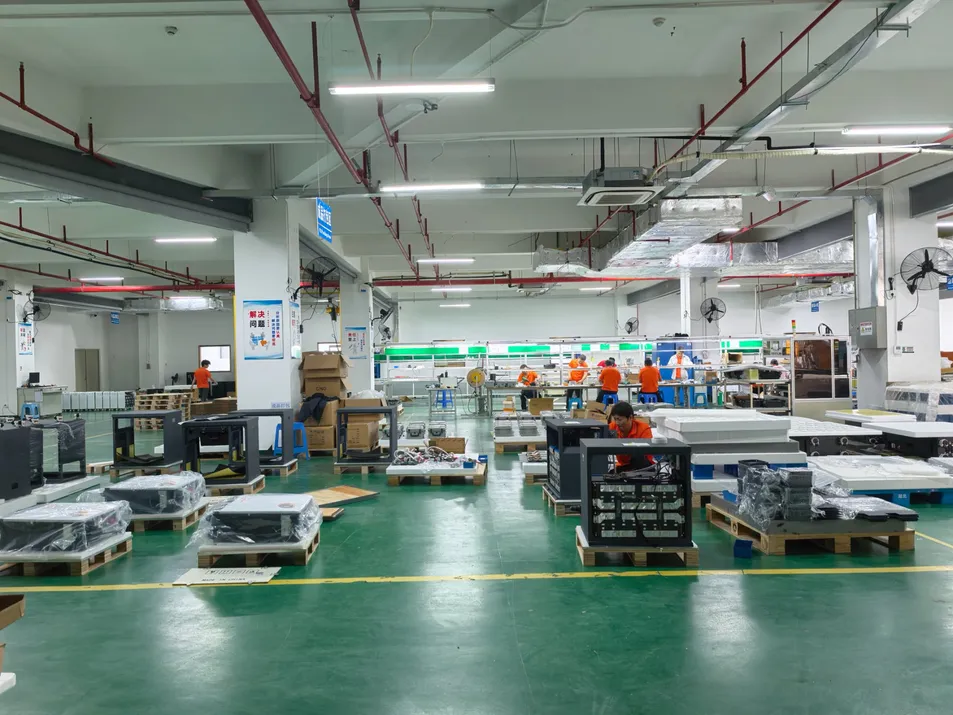

Manufacturing Facility 3

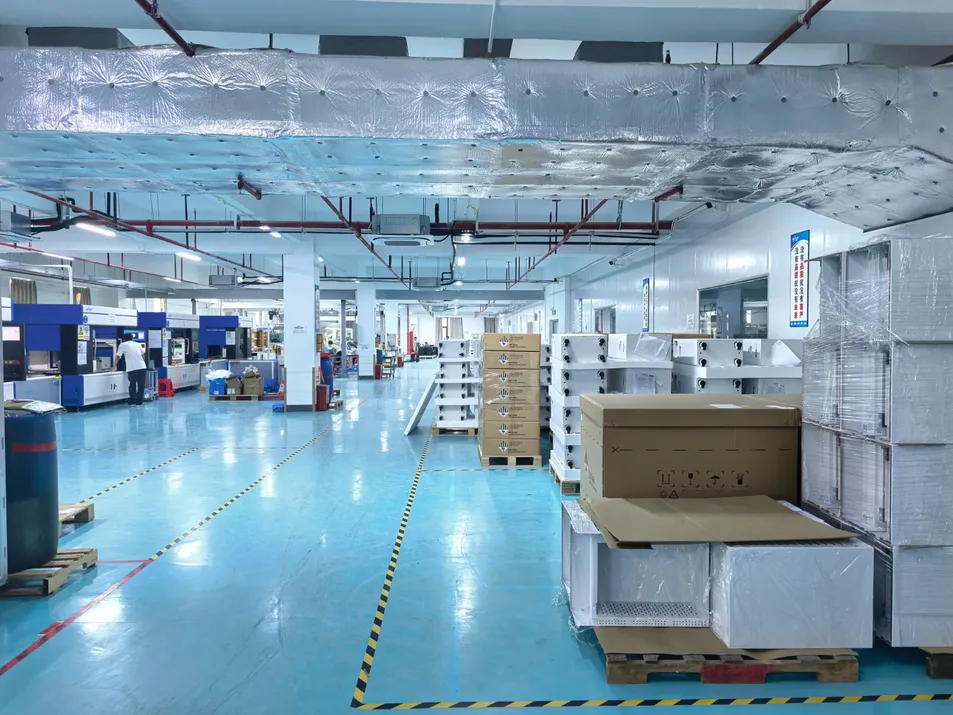

Manufacturing Facility 4

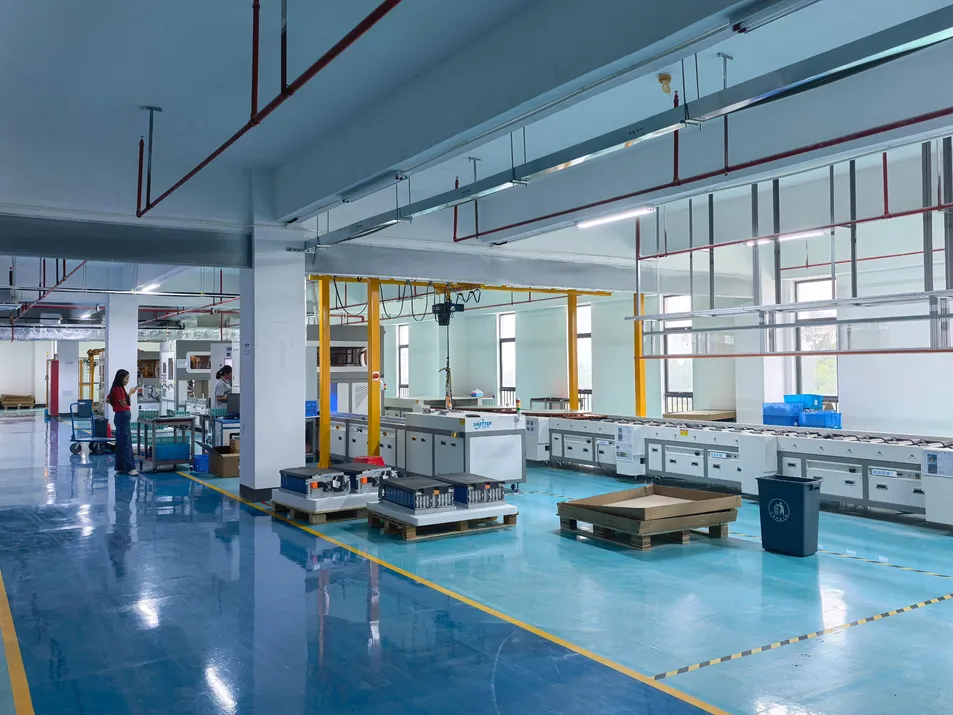

Manufacturing Facility 5
Certifications

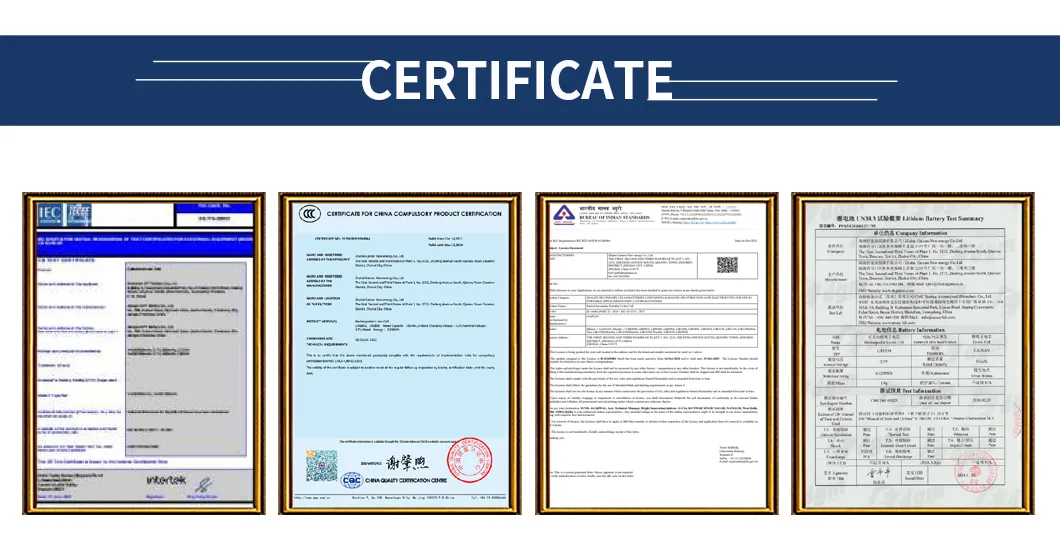

Product Certifications
Packaging & Shipping

Every product is securely packed in durable packaging that ensures superior protection against shock, moisture, and handling throughout the logistics journey.

We offer flexible global shipping solutions tailored to your needs, including express courier (DHL, UPS, FedEx etc.), air freight, and sea freight, ensuring reliable and cost-effective delivery to your destination.

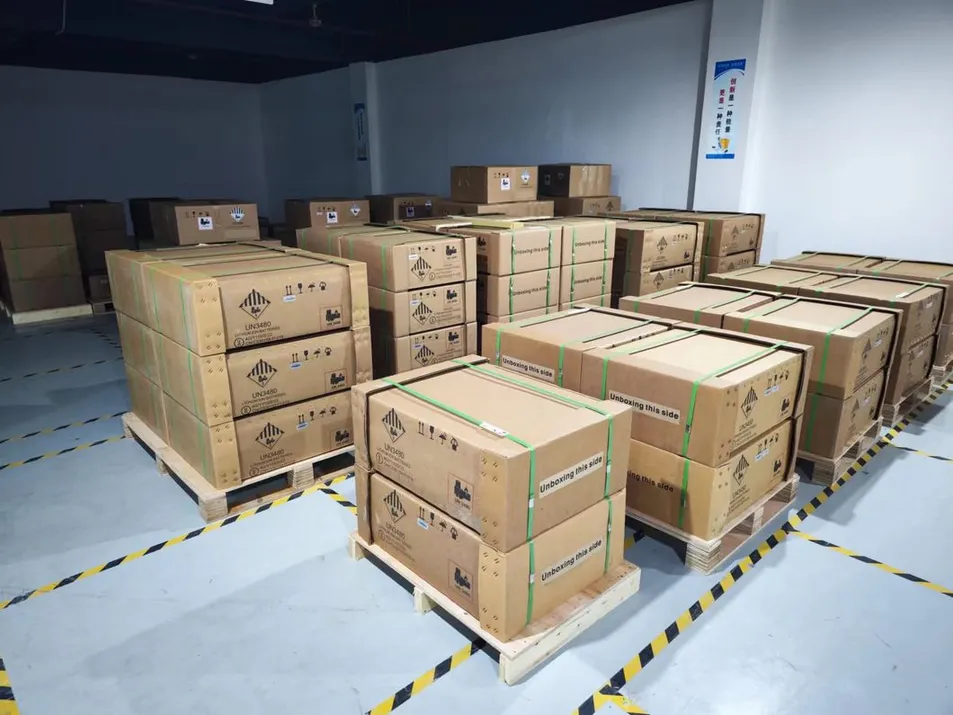

Secure Packaging Process 1

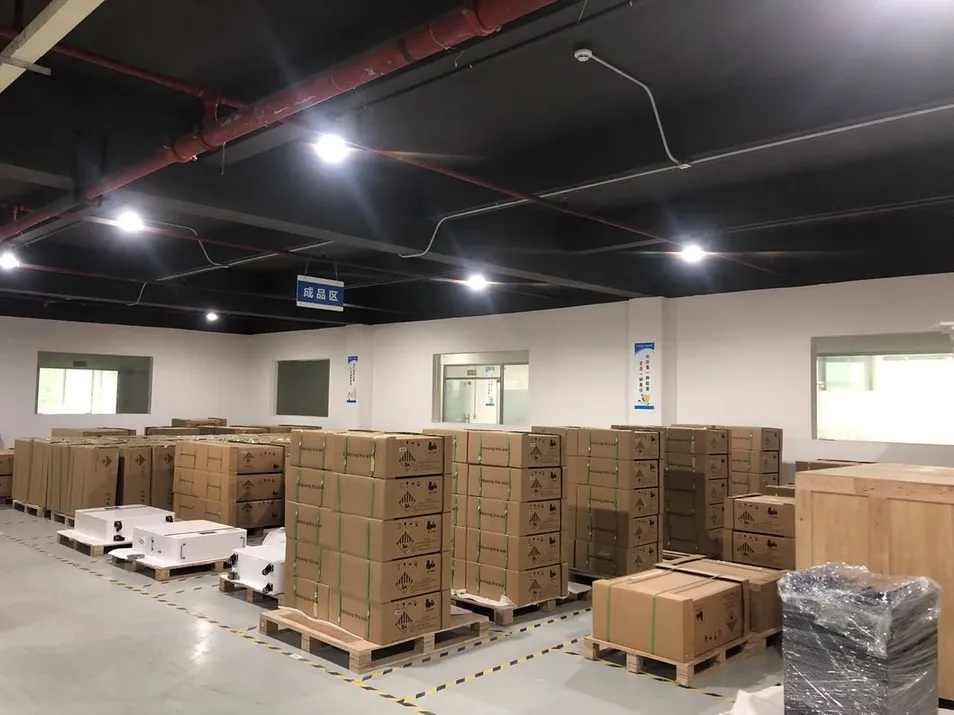

Secure Packaging Process 2
Shipping Logistics 1
Shipping Logistics 2
Frequently Asked Questions
Q1: What products do you offer?
A1: We specialize in custom battery packs (using cylindrical, Li-Polymer, or pouch cells, etc.) and Home/Balcony Energy Storage Systems, with full OEM/ODM support.
Q2: Are your products certified?
A2: Yes. Our products comply with international standards such as CE, UL, UN38.3, etc. Specific certifications vary by product and region.
Q3: What is your lead time?
A3: For standard products, it's typically 15-30 days. For customized orders, the timeline depends on the design complexity and quantity, which we will confirm in advance.
Q4: What are the shipping options?
A4: We offer flexible shipping via express (e.g., DHL, FedEx), air freight, or sea freight, based on your requirements for cost and delivery speed.
Q5: What is your minimum order quantity (MOQ)?
A5: For standard products, MOQ is low (e.g., 1-10 units). For custom battery packs, MOQ varies by project.
Q6: What is your warranty policy?
A6: We provide a standard warranty (e.g., 1-3 years depending on the product) against manufacturing defects. Warranty details are specified in the contract.
